Wire Mesh Size Chart
Compare stainless steel wire mesh by mesh count, wire diameter and clear opening. These 48 photo references cover 10–300 mesh, with several wire diameters for the same count.
- Mesh count / inch
- Wire diameter / mm
- Opening / mm
- Aperture / micron
- SS304 / SS316
How is wire mesh size calculated?

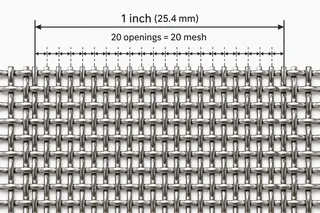

A wire mesh size chart compares mesh count, wire diameter and clear opening. For regular square woven mesh, opening (mm) = 25.4 ÷ mesh count − wire diameter (mm). At 20 mesh with 0.40 mm wire, the nominal opening is 0.87 mm (870 µm). Mesh count alone does not determine the opening.
Wire Mesh Size Chart (Photo Reference)
48 matching specifications · select a photo to inspect the label.
10 Mesh SS304
- Wire

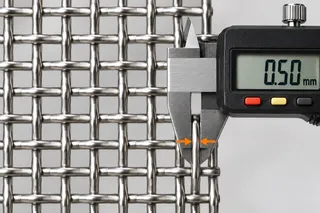

- 0.7 mm
- Opening¹
- 1.84 mm

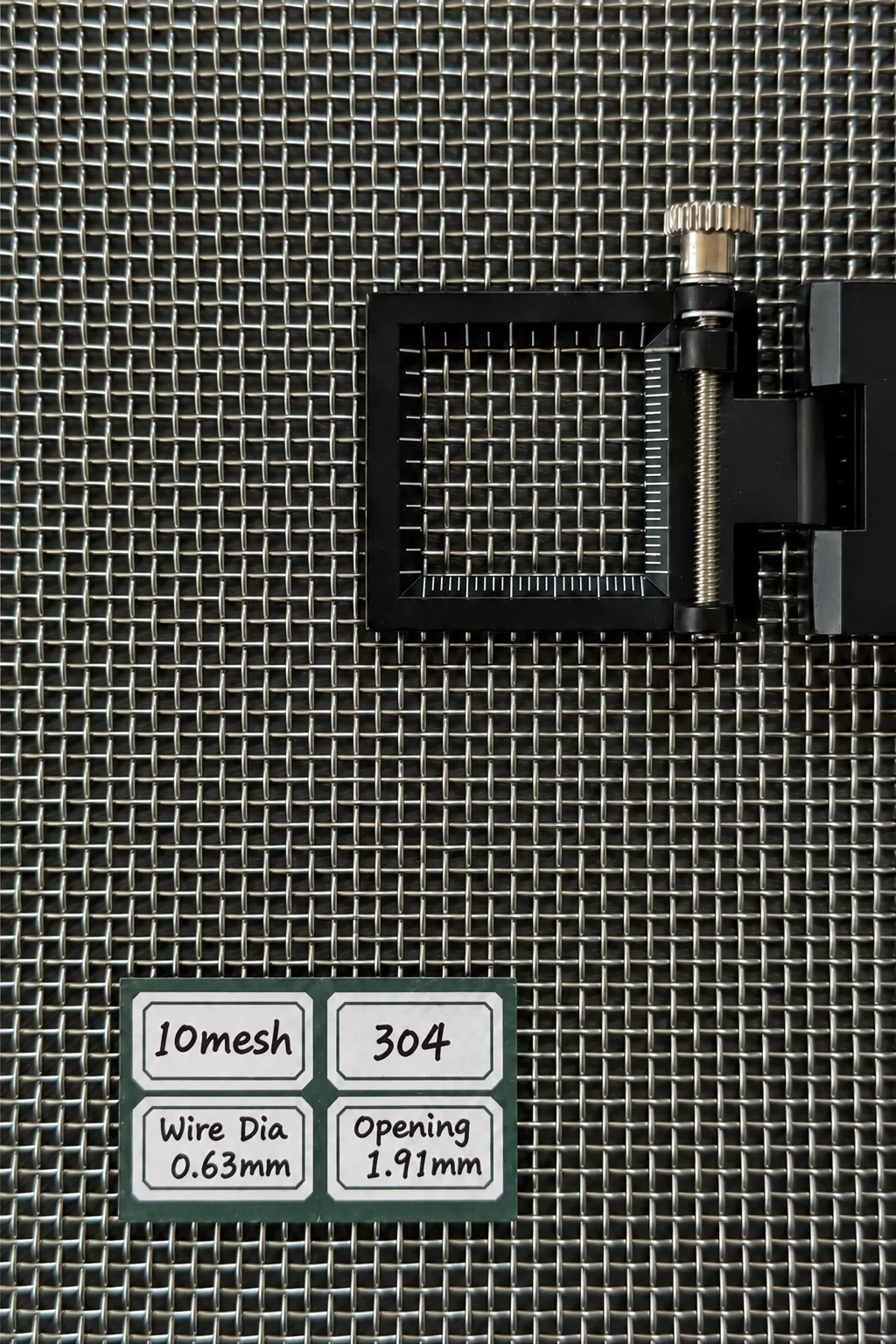

10 Mesh SS304
- Wire
- 0.63 mm
- Opening¹
- 1.91 mm

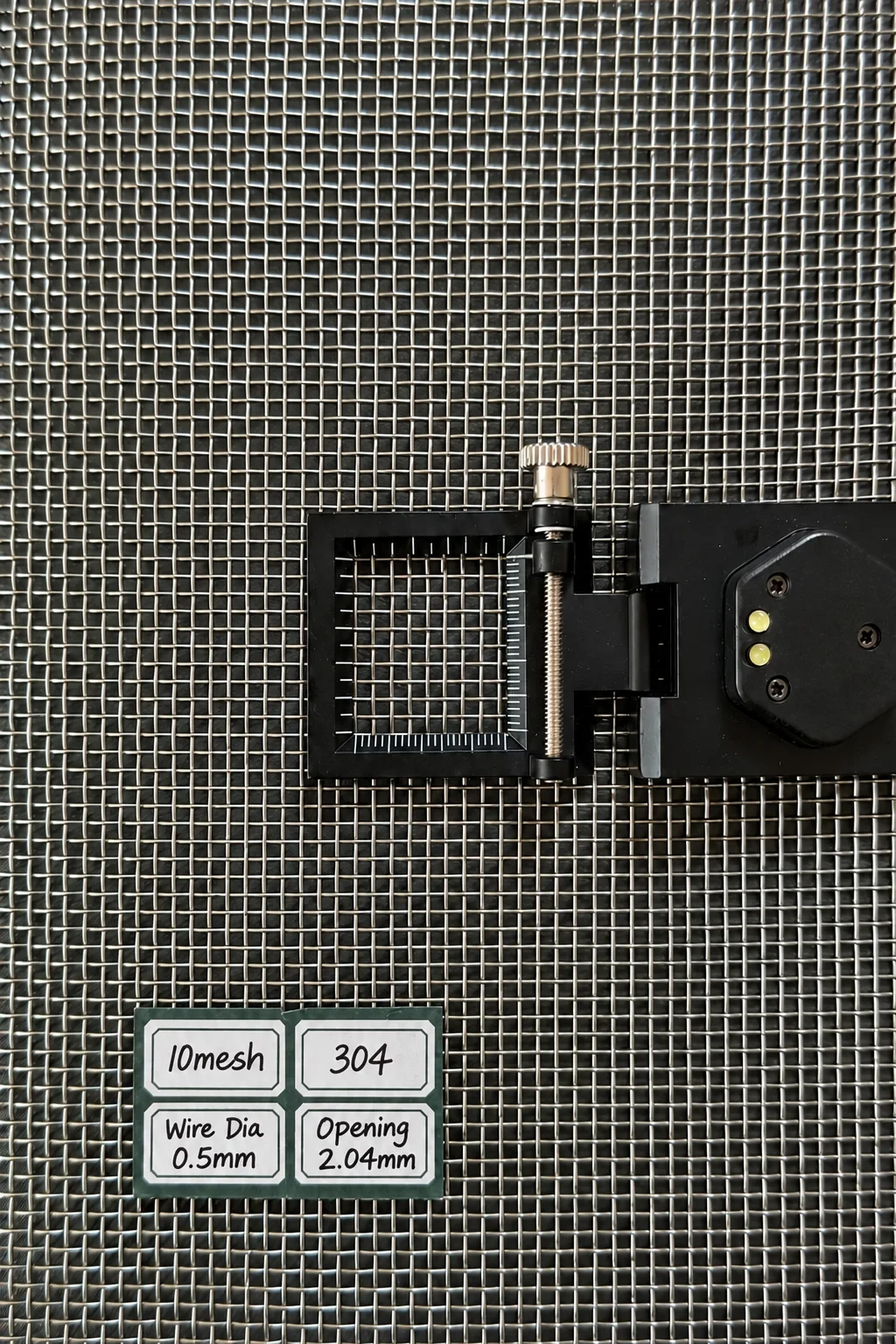

10 Mesh SS304
- Wire
- 0.5 mm
- Opening¹
- 2.04 mm

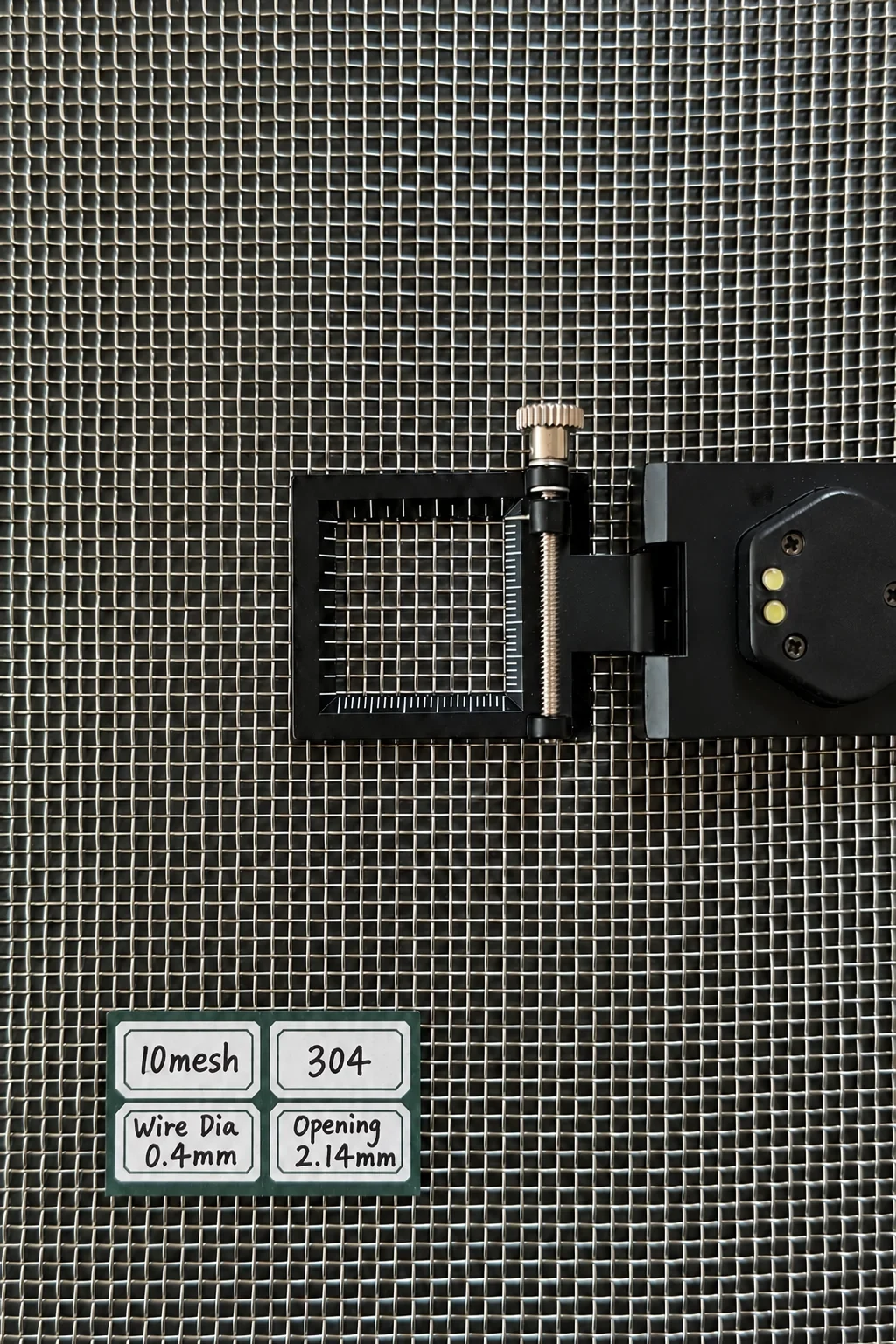

10 Mesh SS304
- Wire
- 0.4 mm
- Opening¹
- 2.14 mm

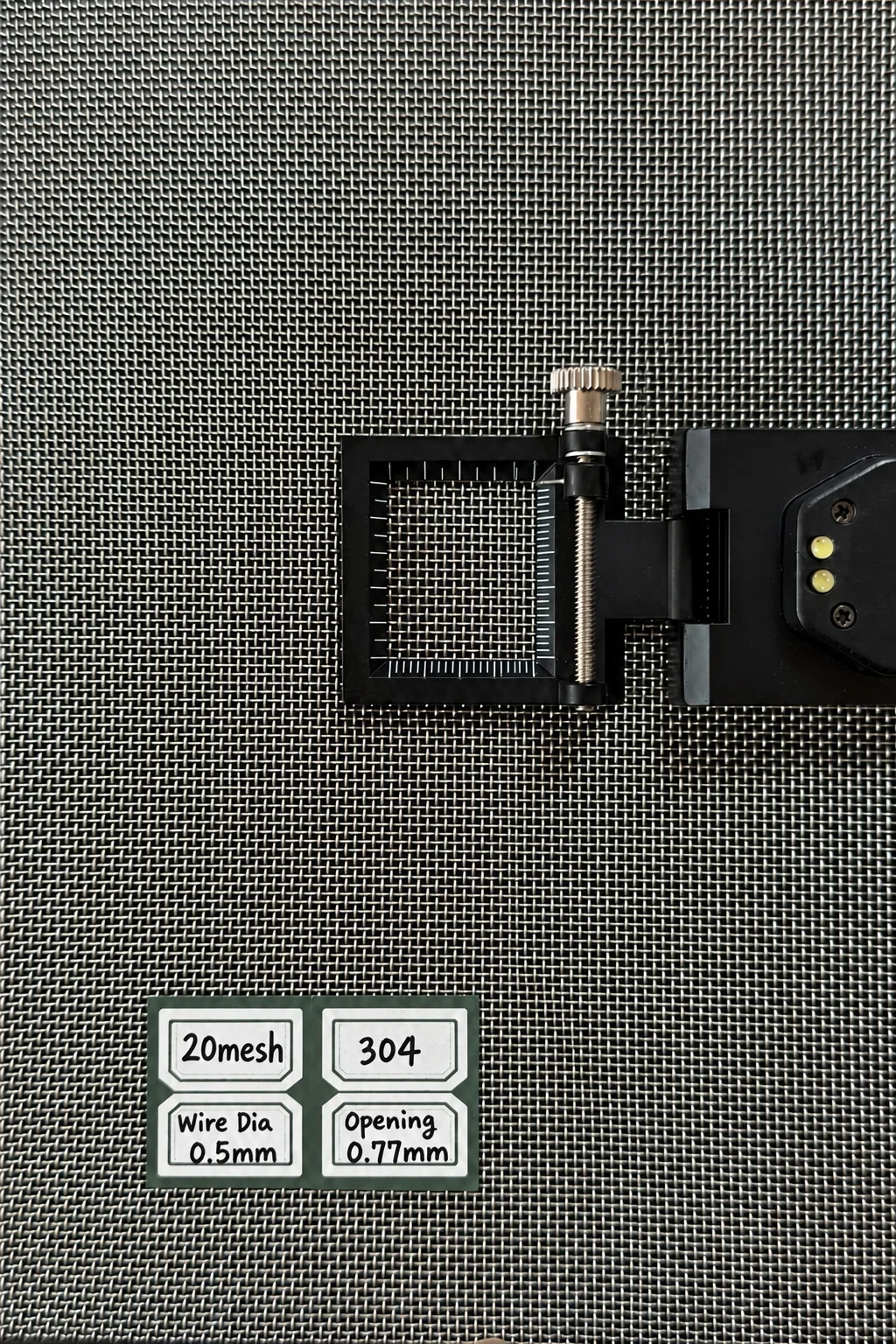

20 Mesh SS304
- Wire
- 0.5 mm
- Opening¹
- 0.77 mm

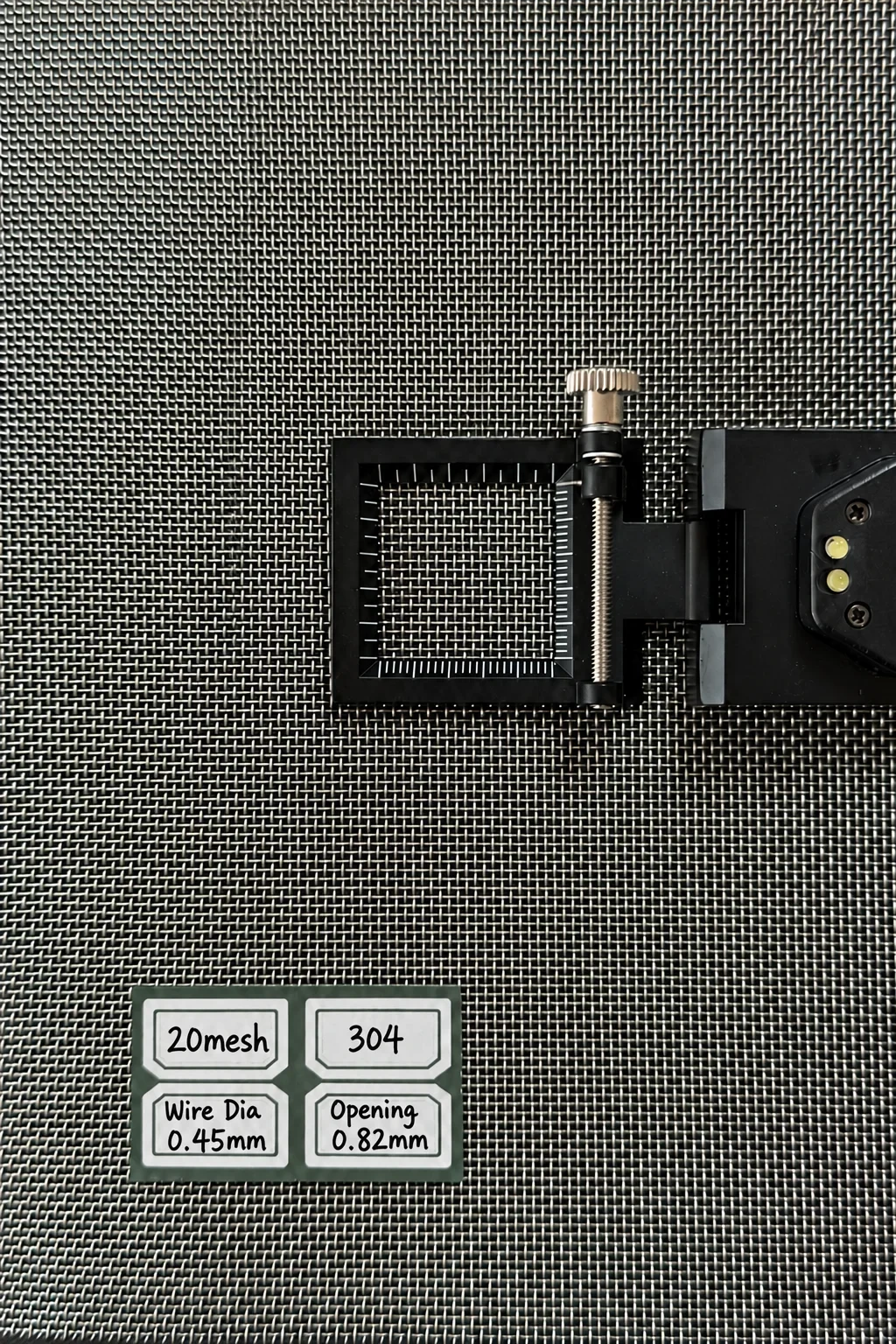

20 Mesh SS304
- Wire
- 0.45 mm
- Opening¹
- 0.82 mm

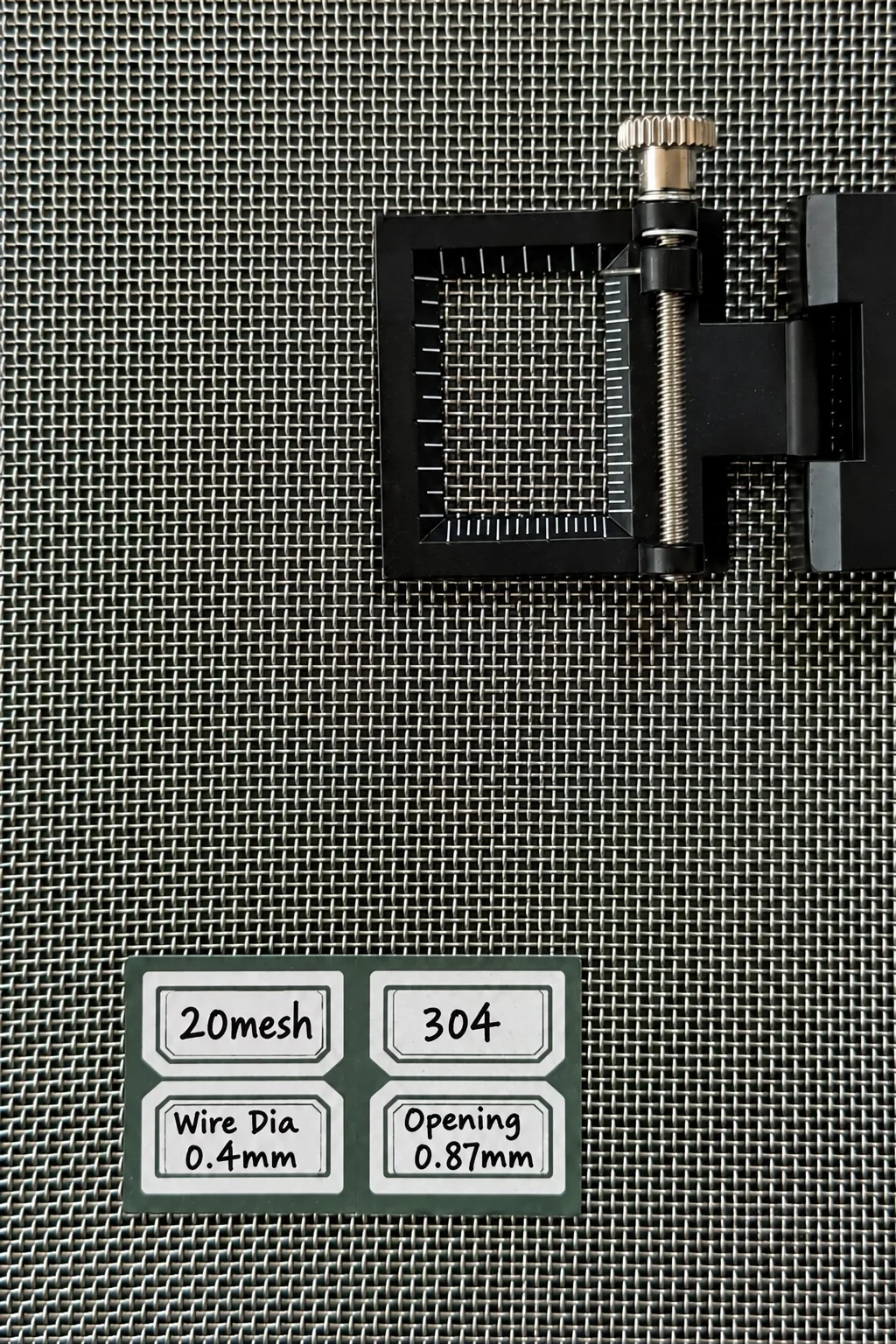

20 Mesh SS304
- Wire
- 0.4 mm
- Opening¹
- 0.87 mm

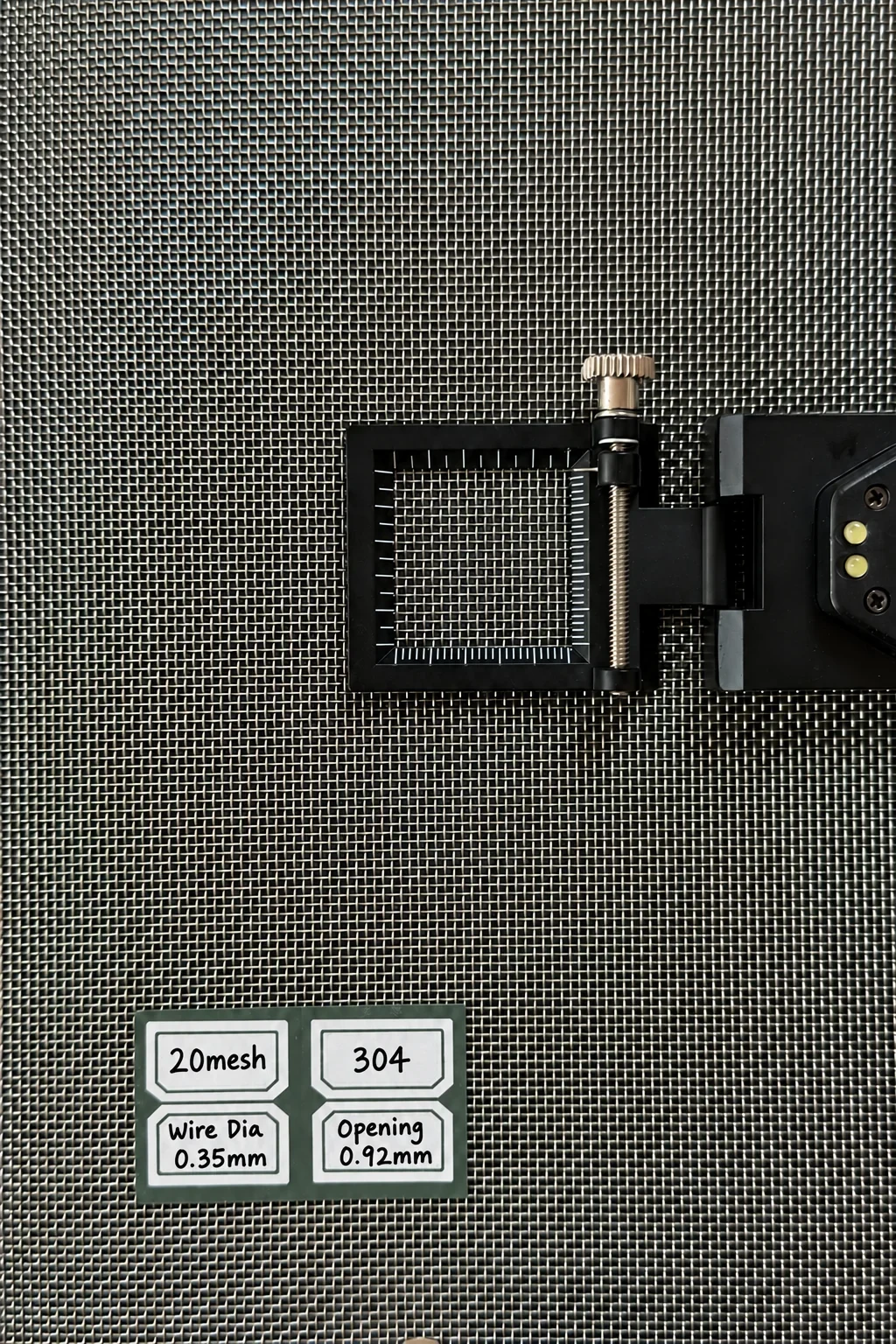

20 Mesh SS304
- Wire
- 0.35 mm
- Opening¹
- 0.92 mm

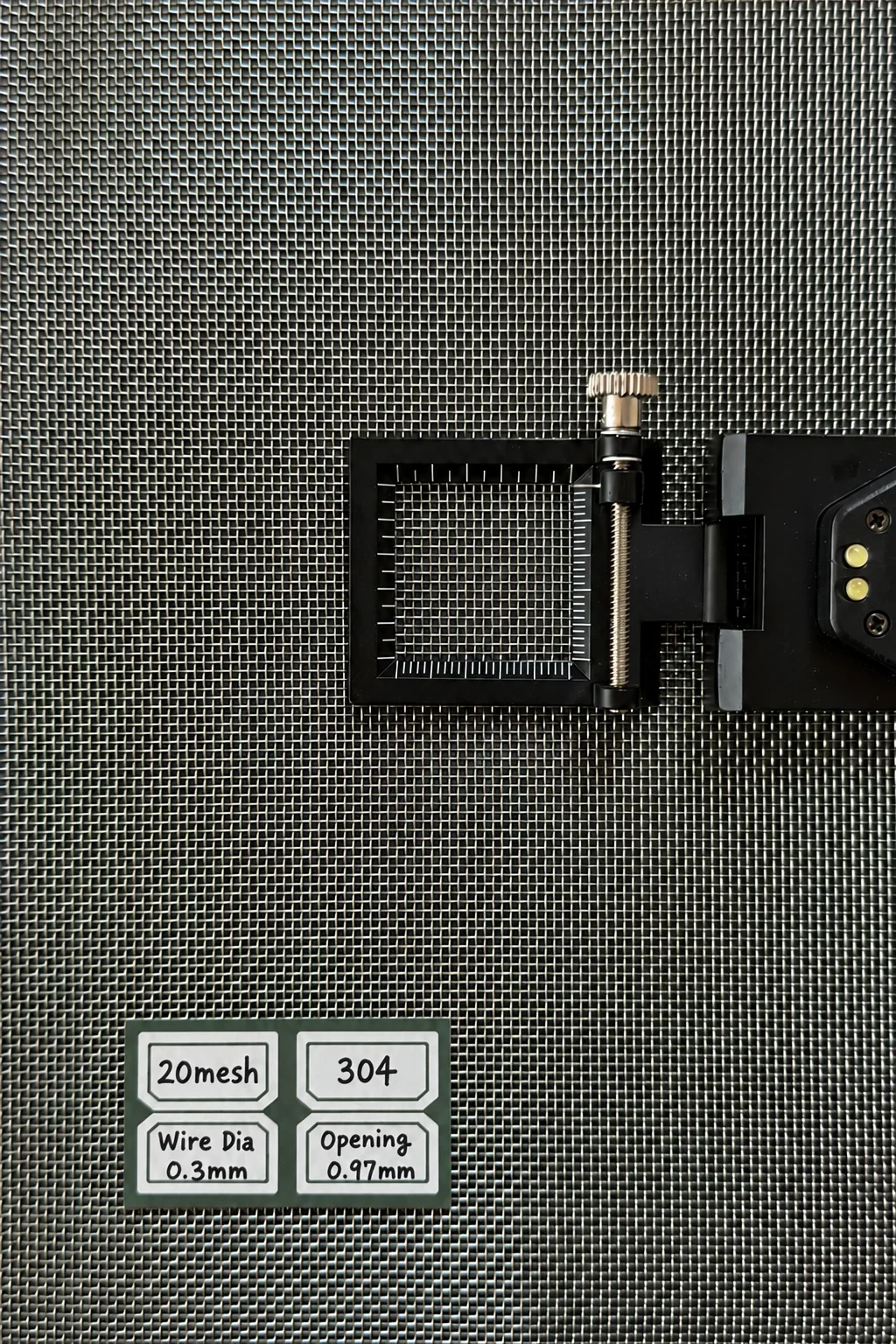

20 Mesh SS304
- Wire
- 0.3 mm
- Opening¹
- 0.97 mm

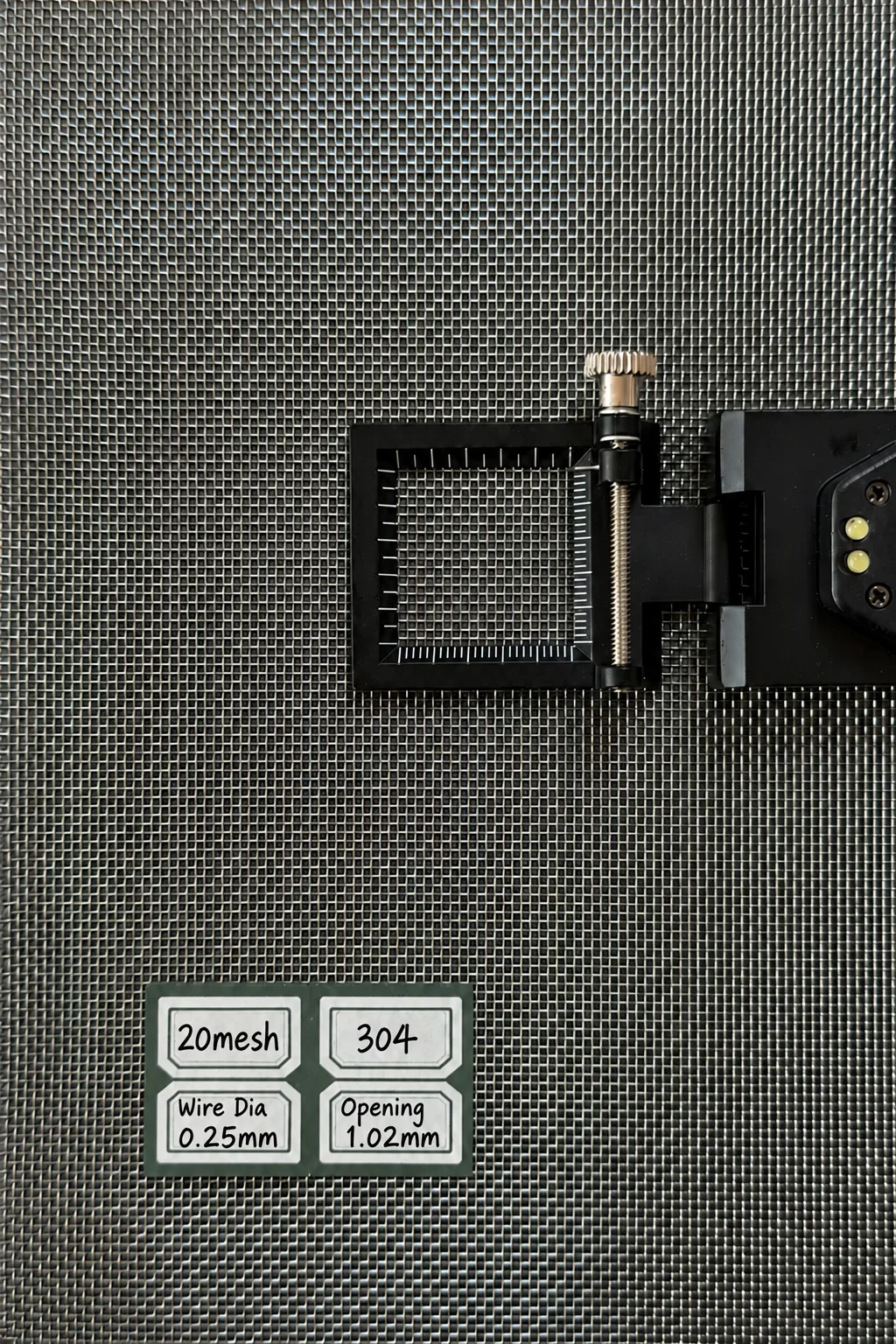

20 Mesh SS304
- Wire
- 0.25 mm
- Opening¹
- 1.02 mm

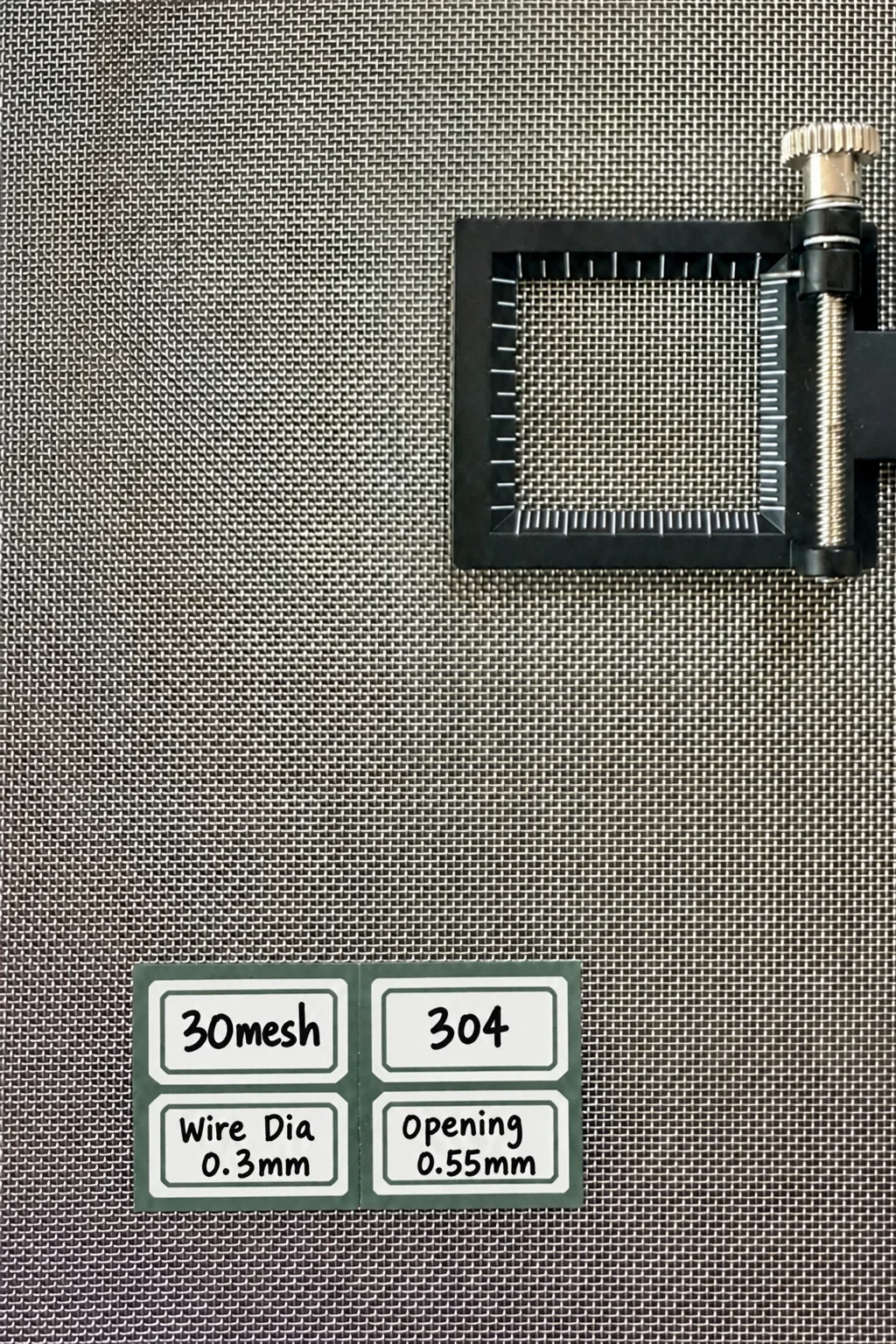

30 Mesh SS304
- Wire
- 0.3 mm
- Opening¹
- 0.55 mm

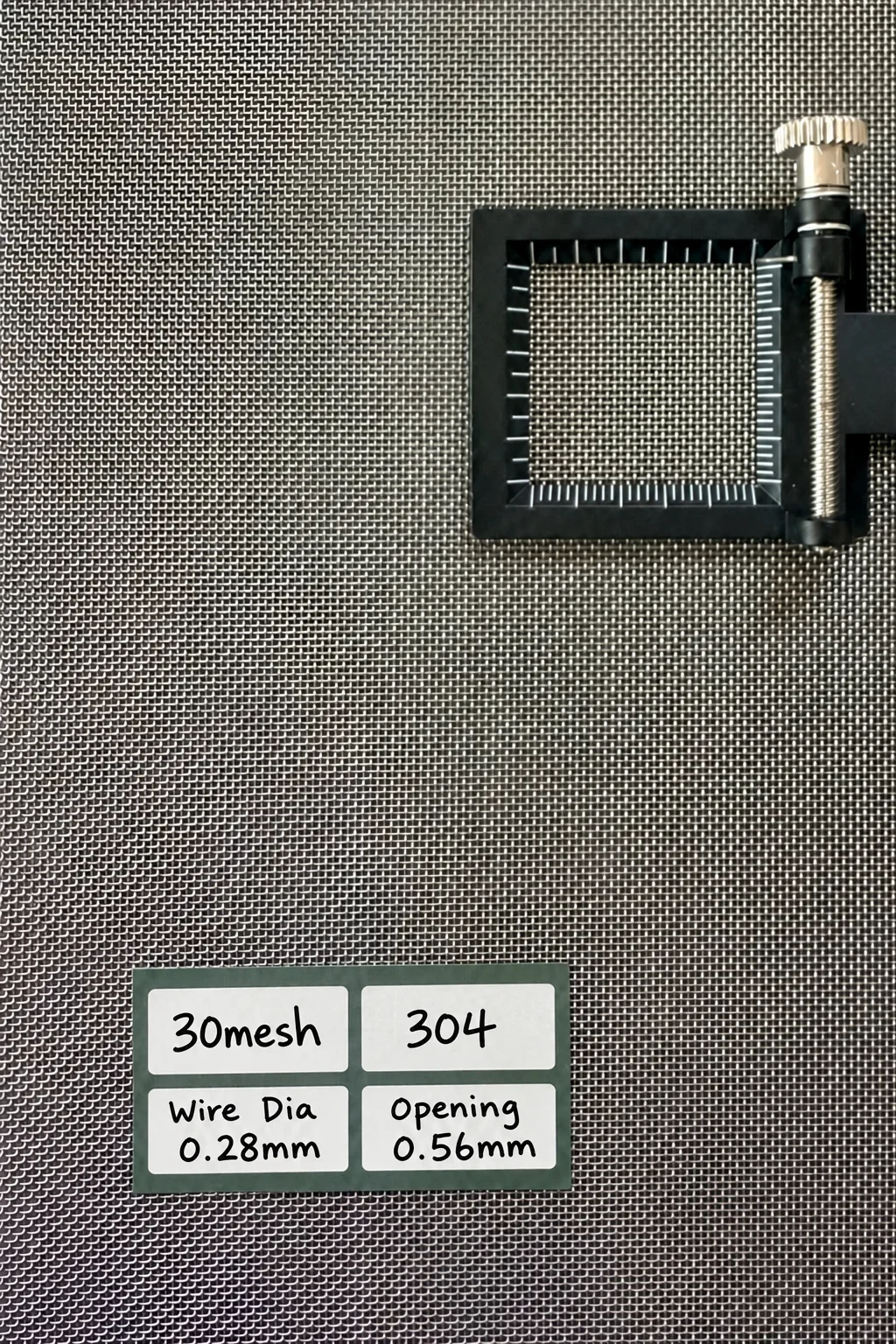

30 Mesh SS304
- Wire
- 0.28 mm
- Opening¹
- 0.56 mm

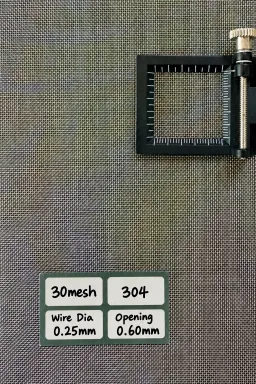

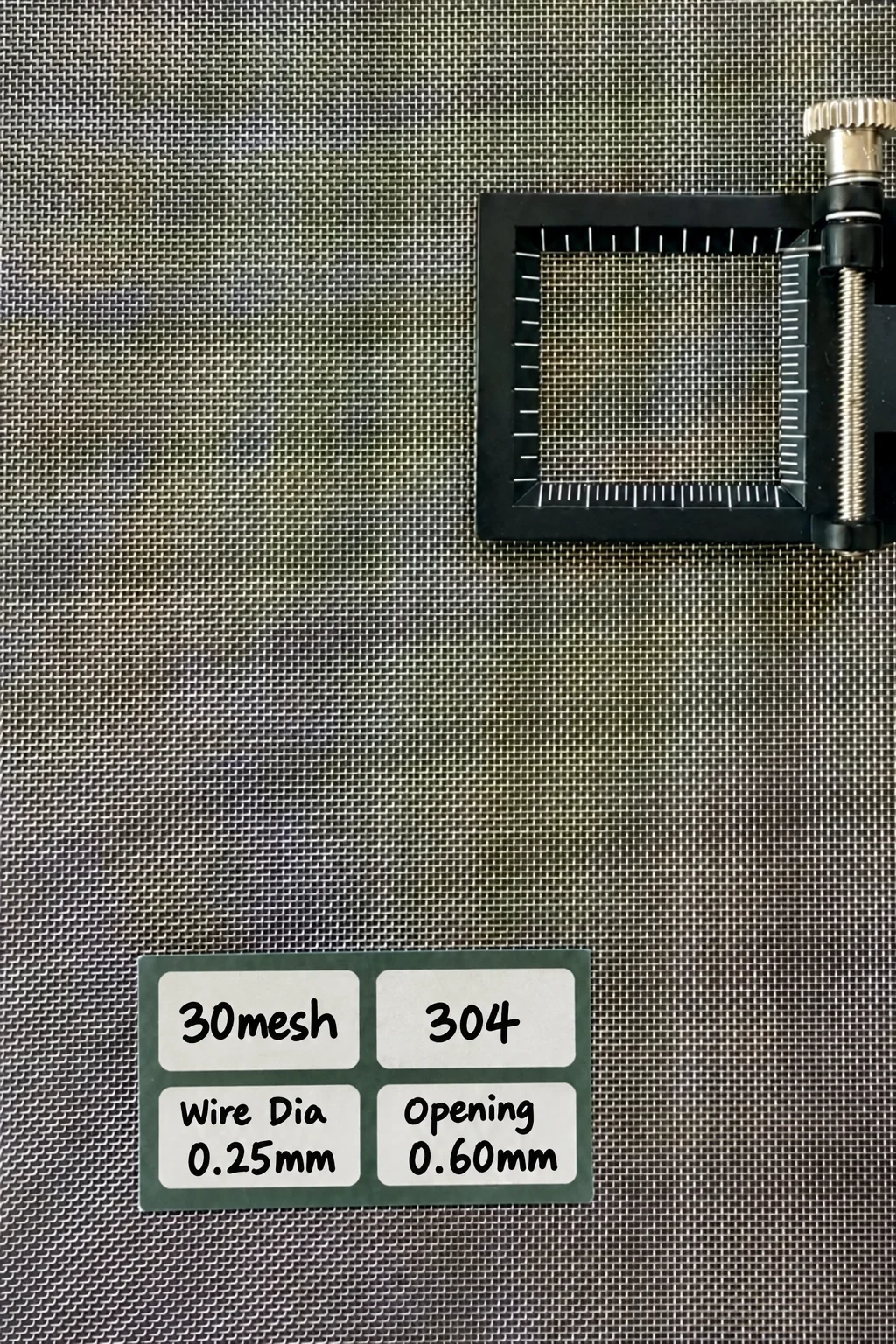

30 Mesh SS304
- Wire
- 0.25 mm
- Opening¹
- 0.6 mm

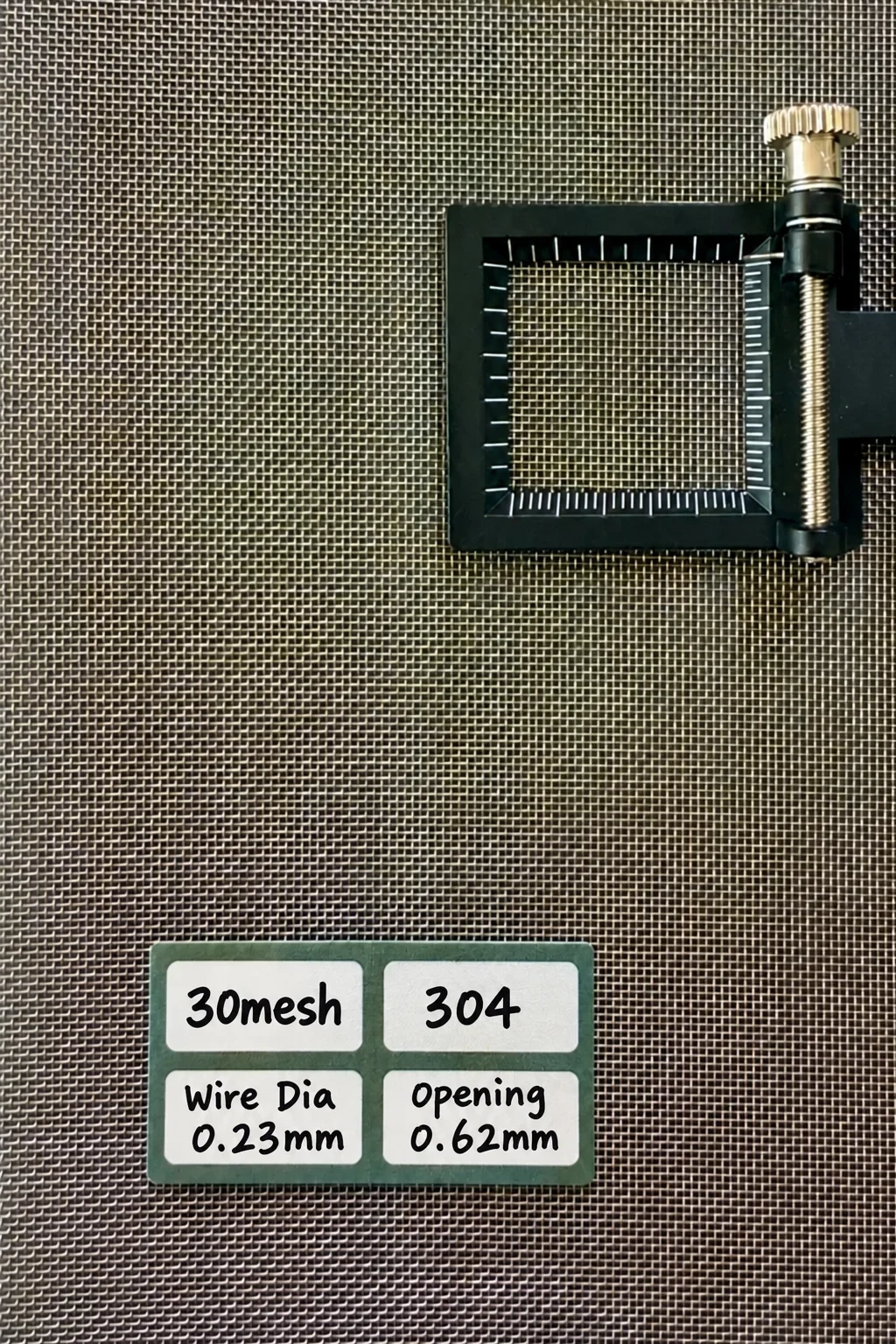

30 Mesh SS304
- Wire
- 0.23 mm
- Opening¹
- 0.62 mm

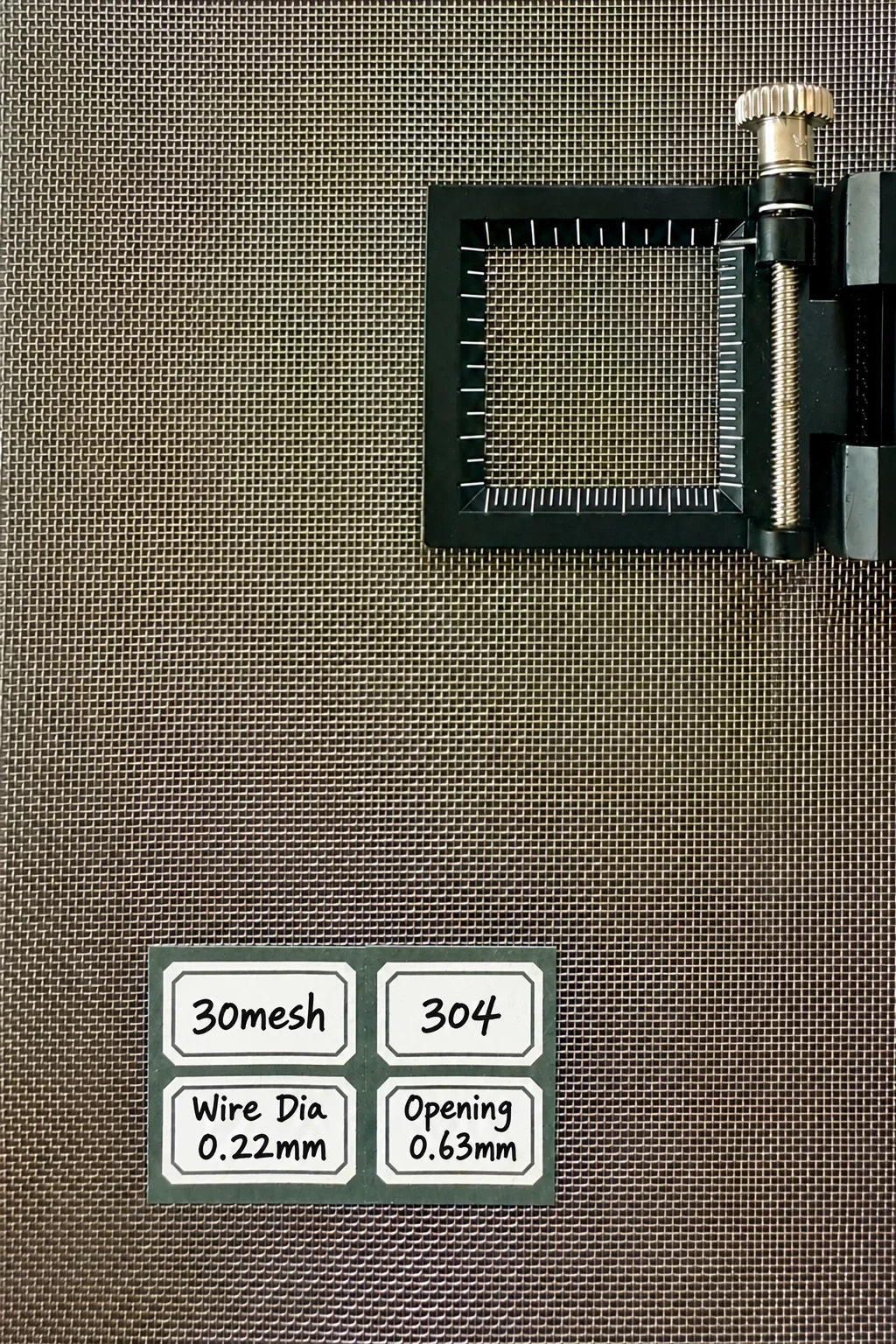

30 Mesh SS304
- Wire
- 0.22 mm
- Opening¹
- 0.63 mm

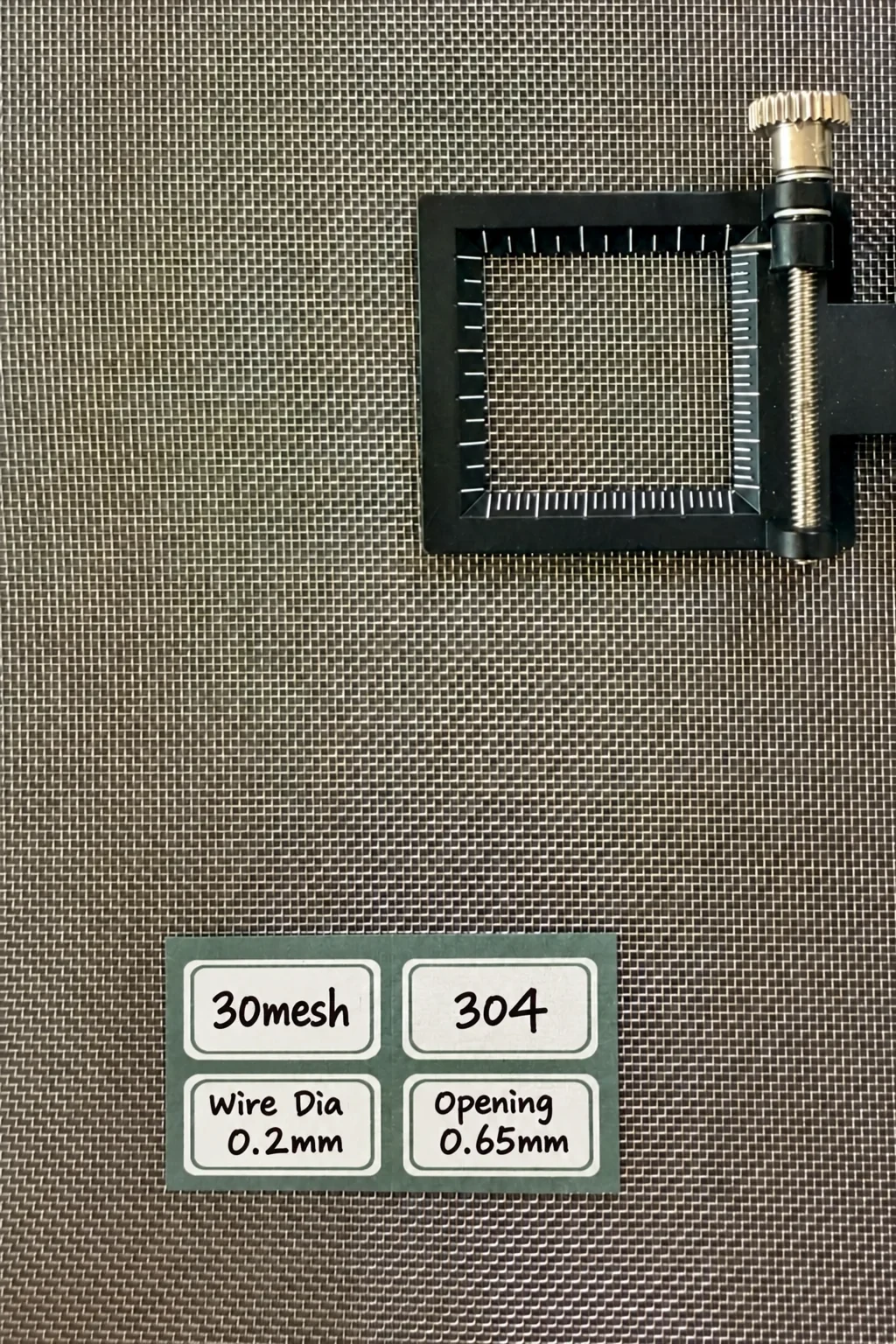

30 Mesh SS304
- Wire
- 0.2 mm
- Opening¹
- 0.65 mm

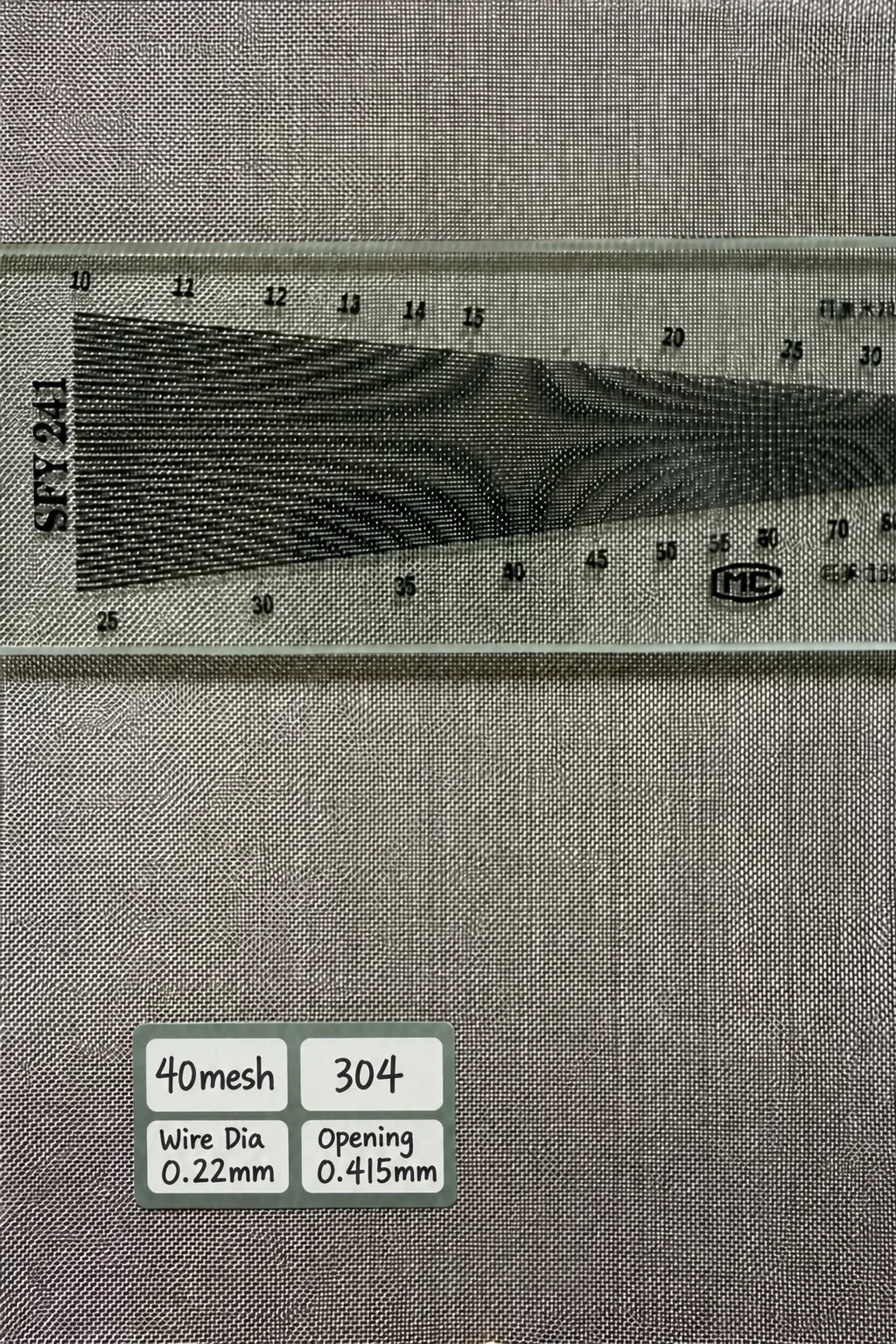

40 Mesh SS304
- Wire
- 0.22 mm
- Opening¹
- 0.415 mm

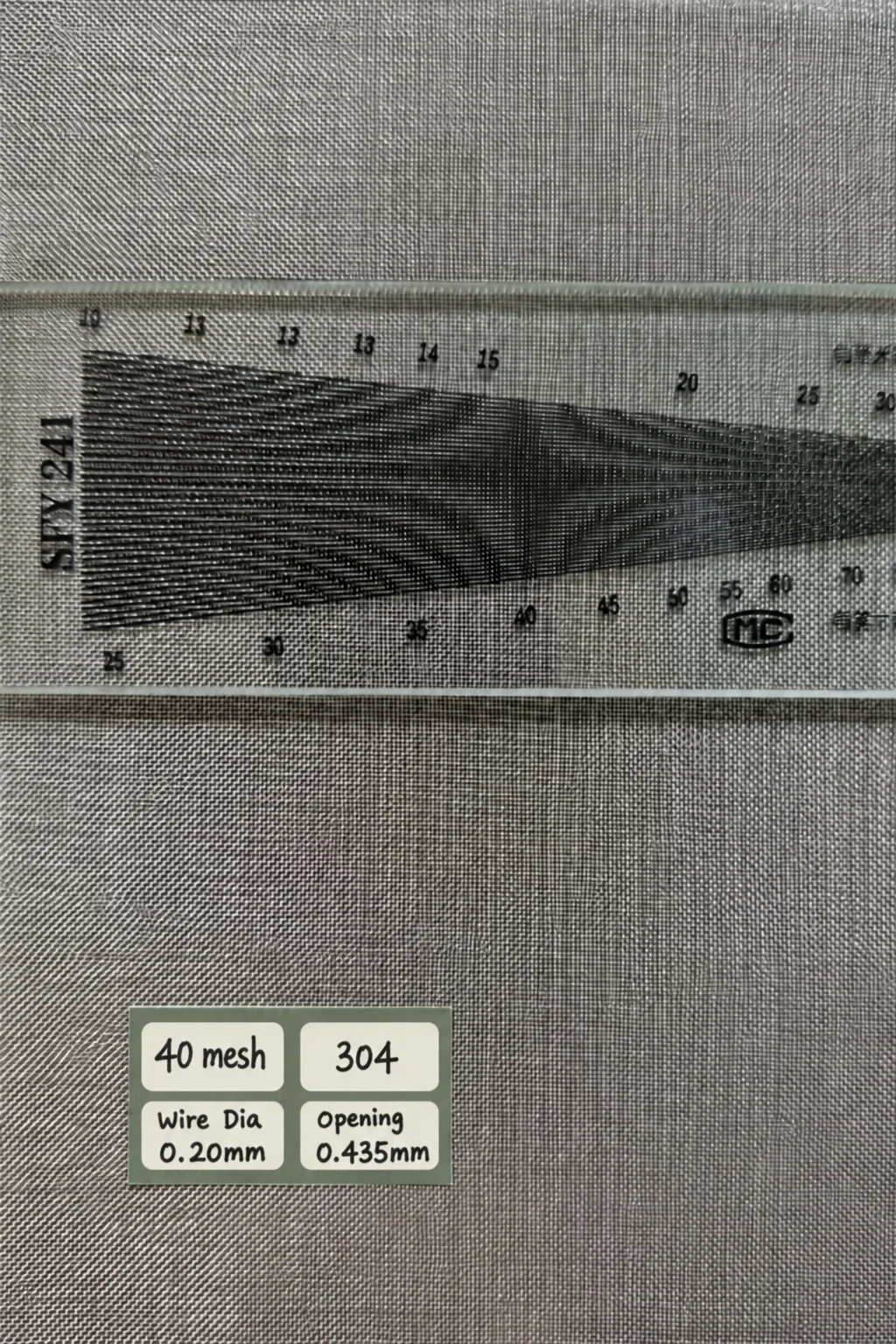

40 Mesh SS304
- Wire
- 0.2 mm
- Opening¹
- 0.435 mm

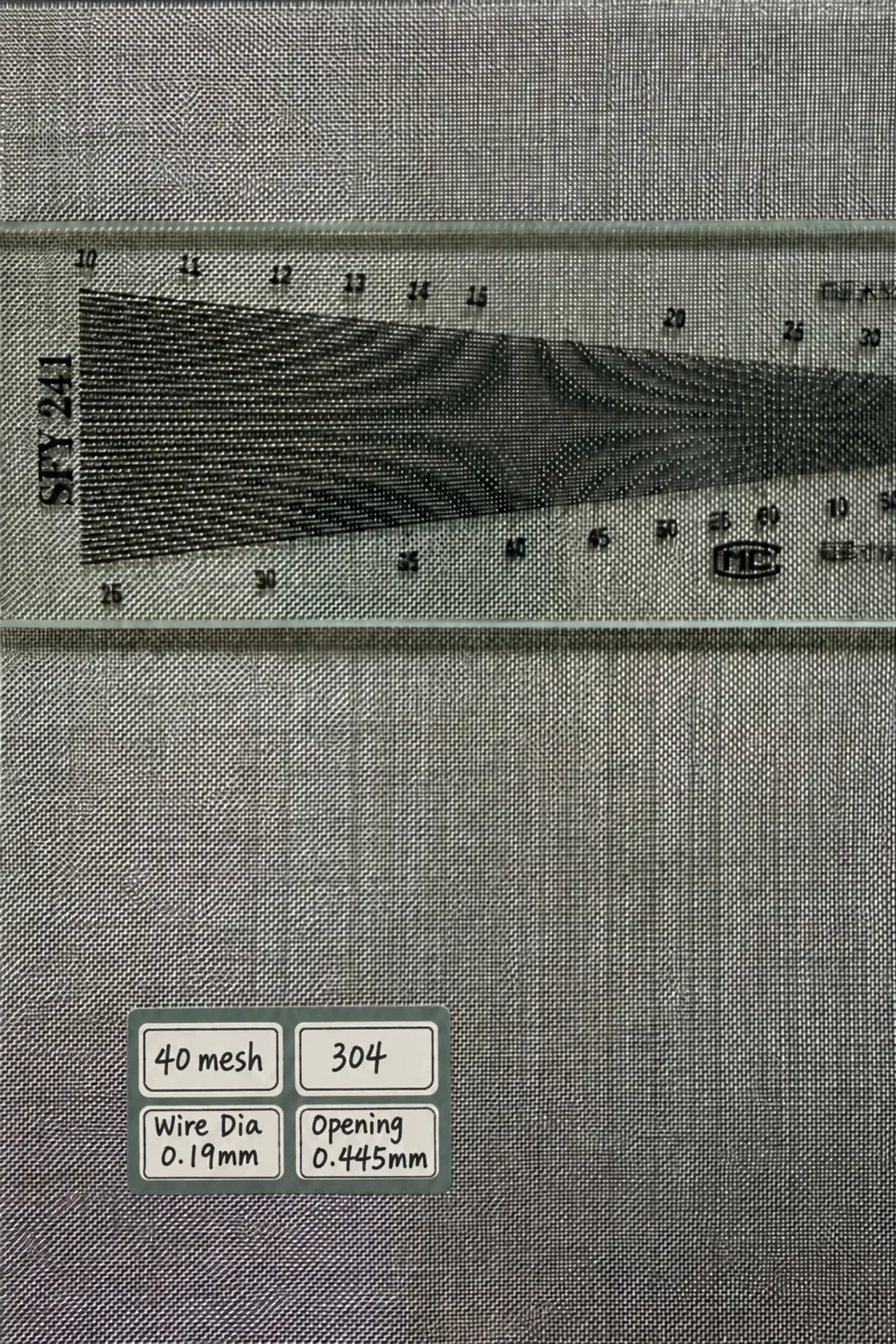

40 Mesh SS304
- Wire
- 0.19 mm
- Opening¹
- 0.445 mm

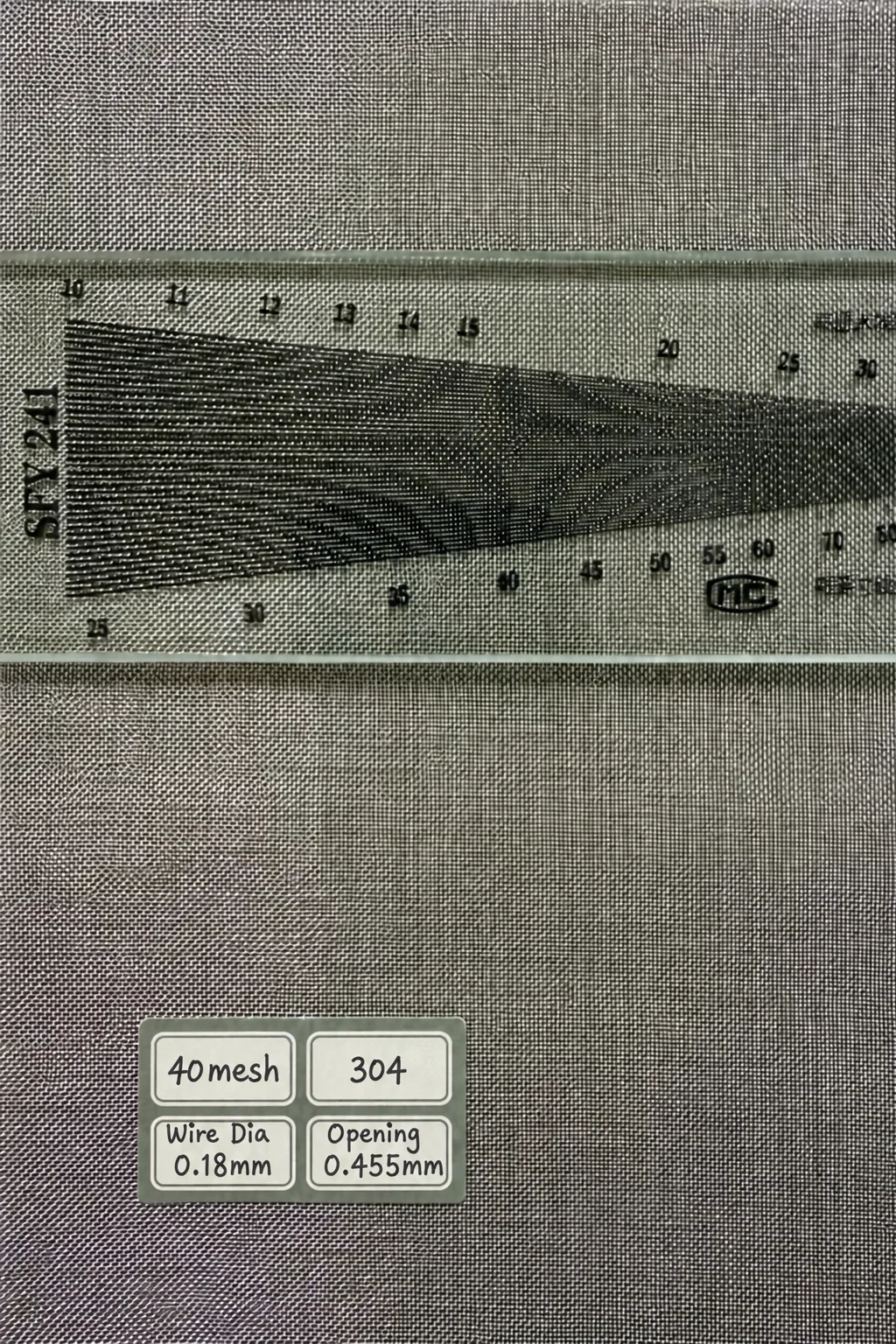

40 Mesh SS304
- Wire
- 0.18 mm
- Opening¹
- 0.455 mm

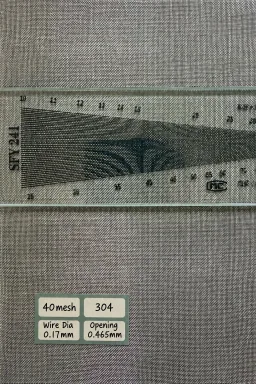

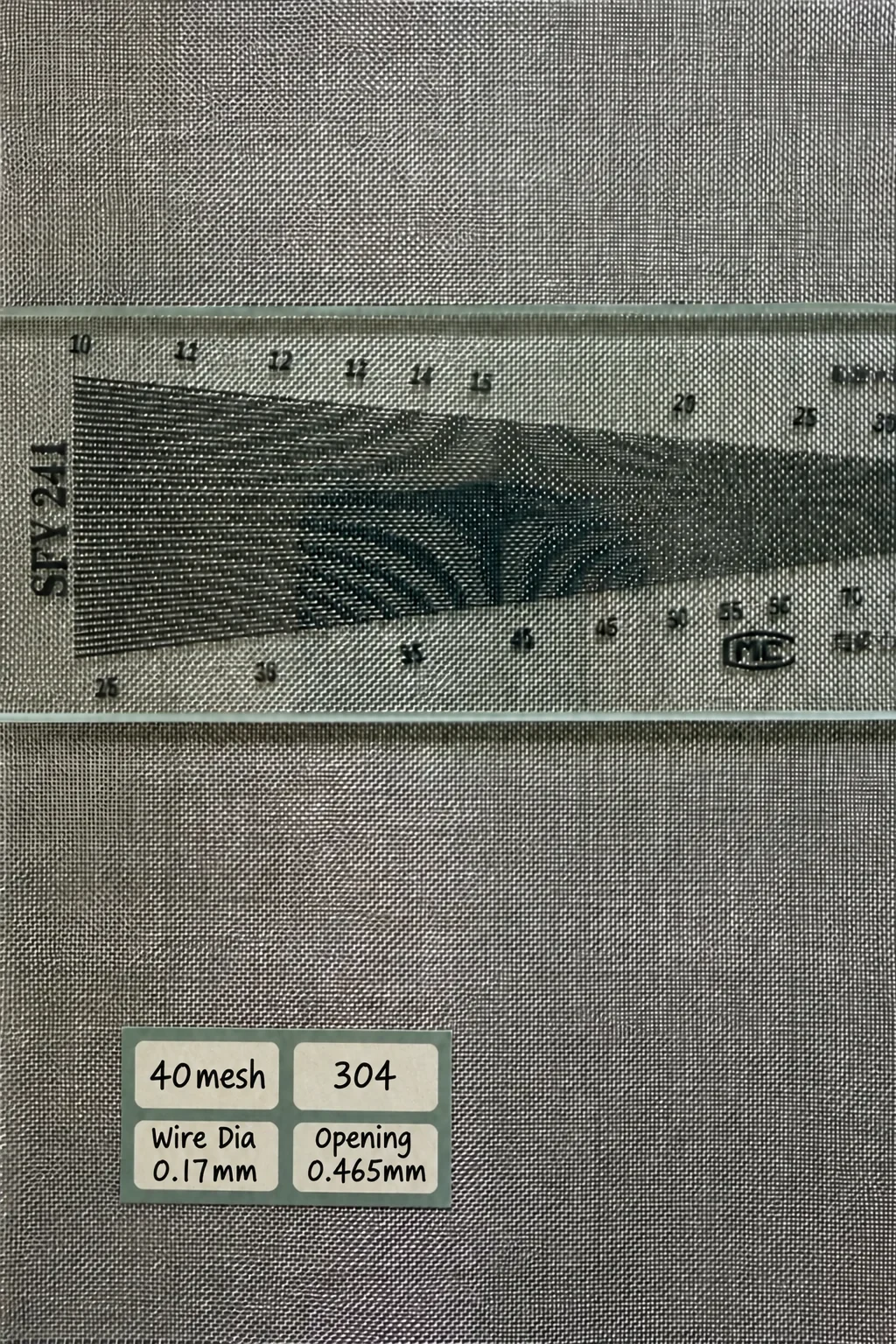

40 Mesh SS304
- Wire
- 0.17 mm
- Opening¹
- 0.465 mm

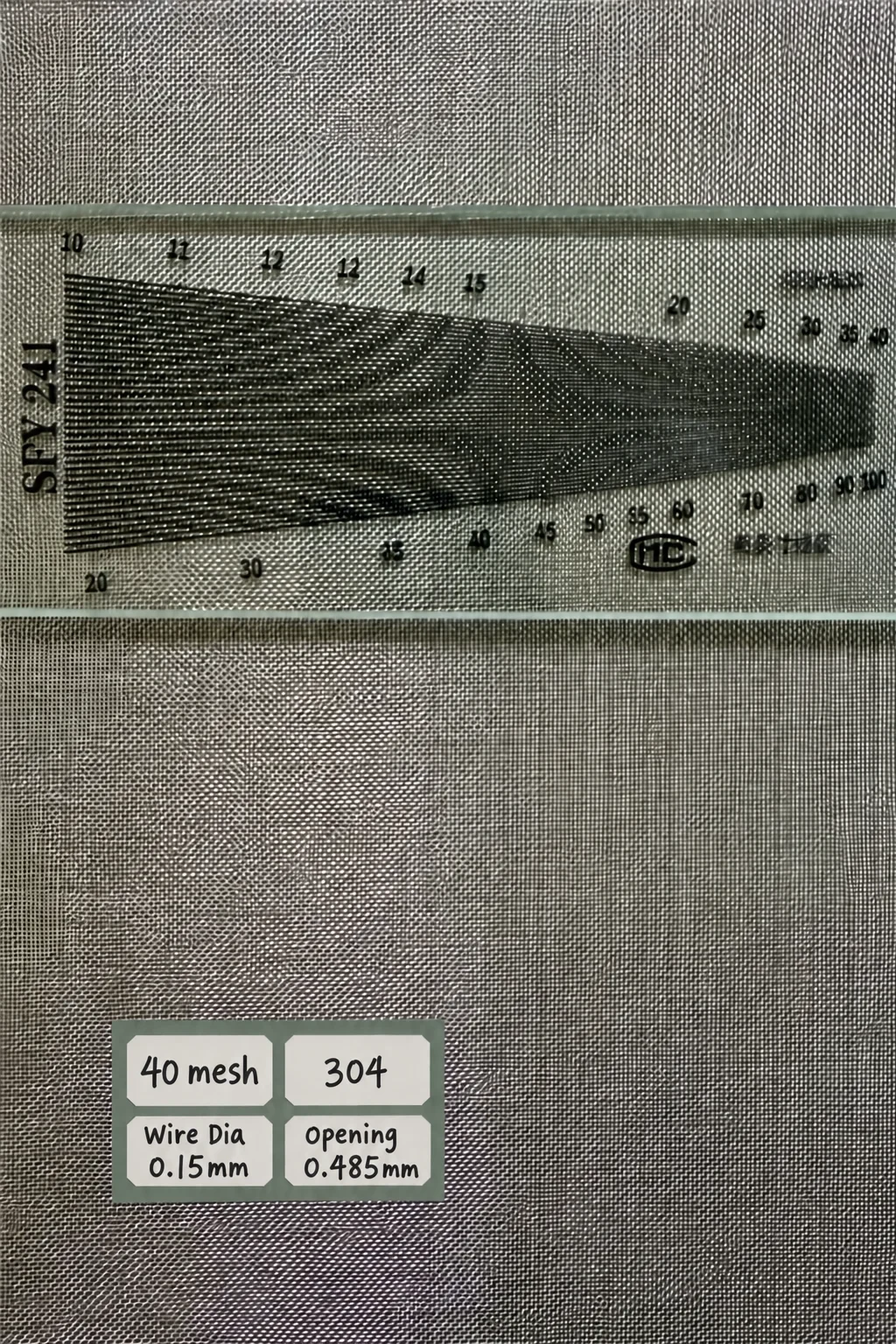

40 Mesh SS304
- Wire
- 0.15 mm
- Opening¹
- 0.485 mm

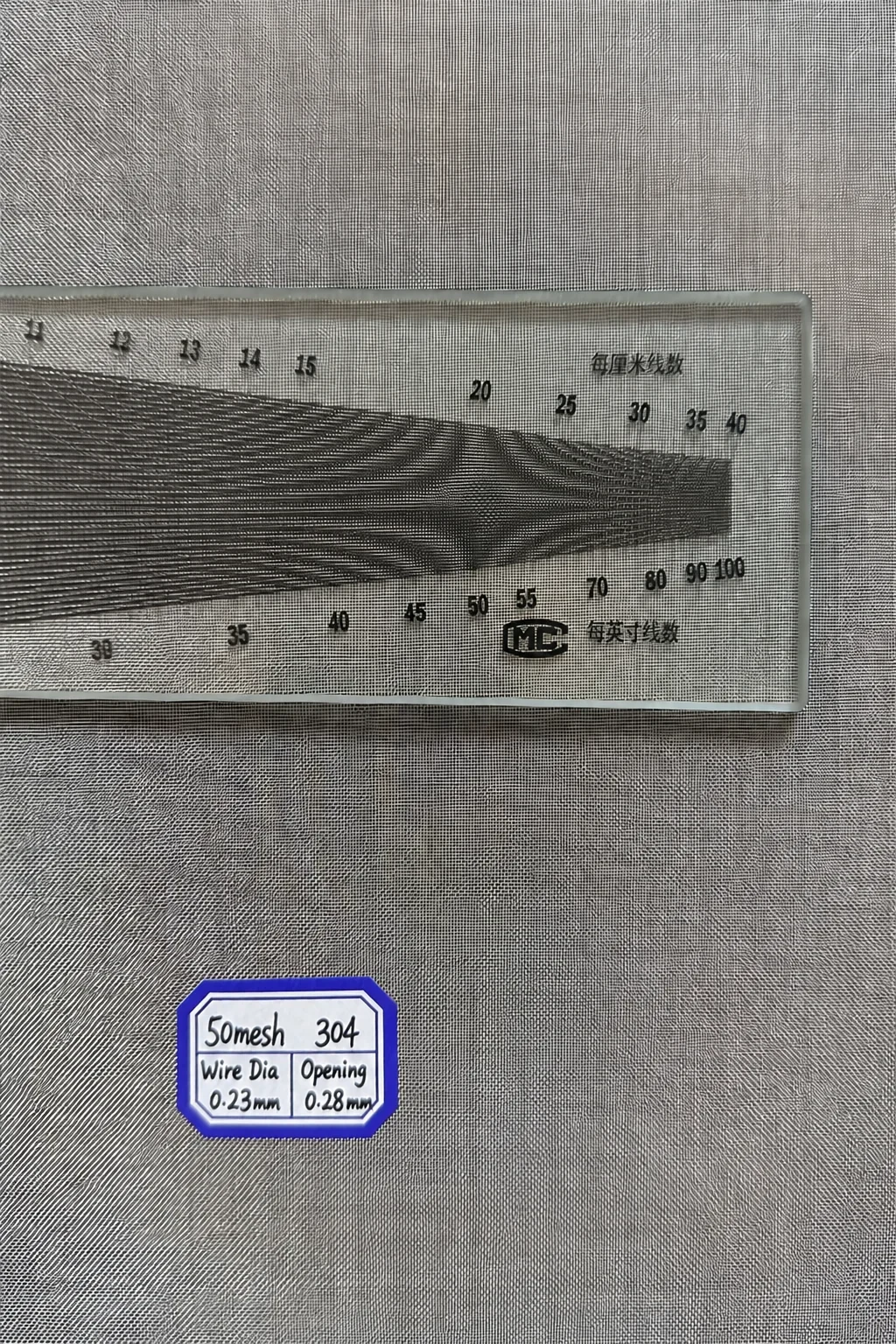

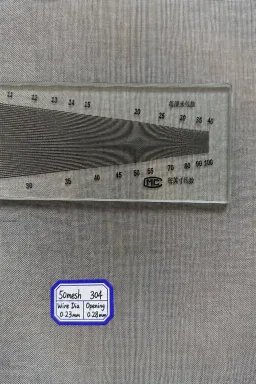

50 Mesh SS304
- Wire
- 0.23 mm
- Opening¹
- 0.28 mm

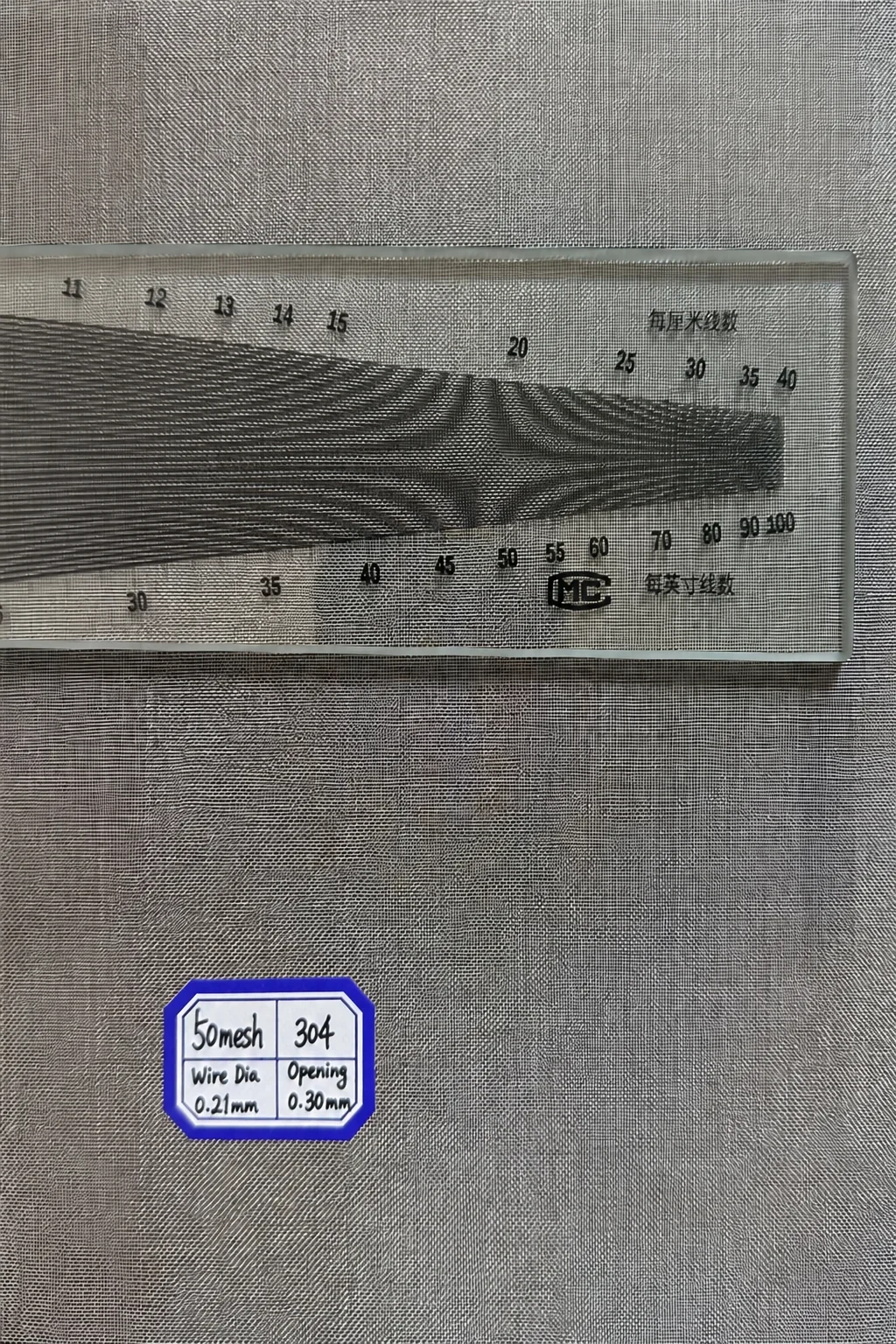

50 Mesh SS304
- Wire
- 0.21 mm
- Opening¹
- 0.3 mm

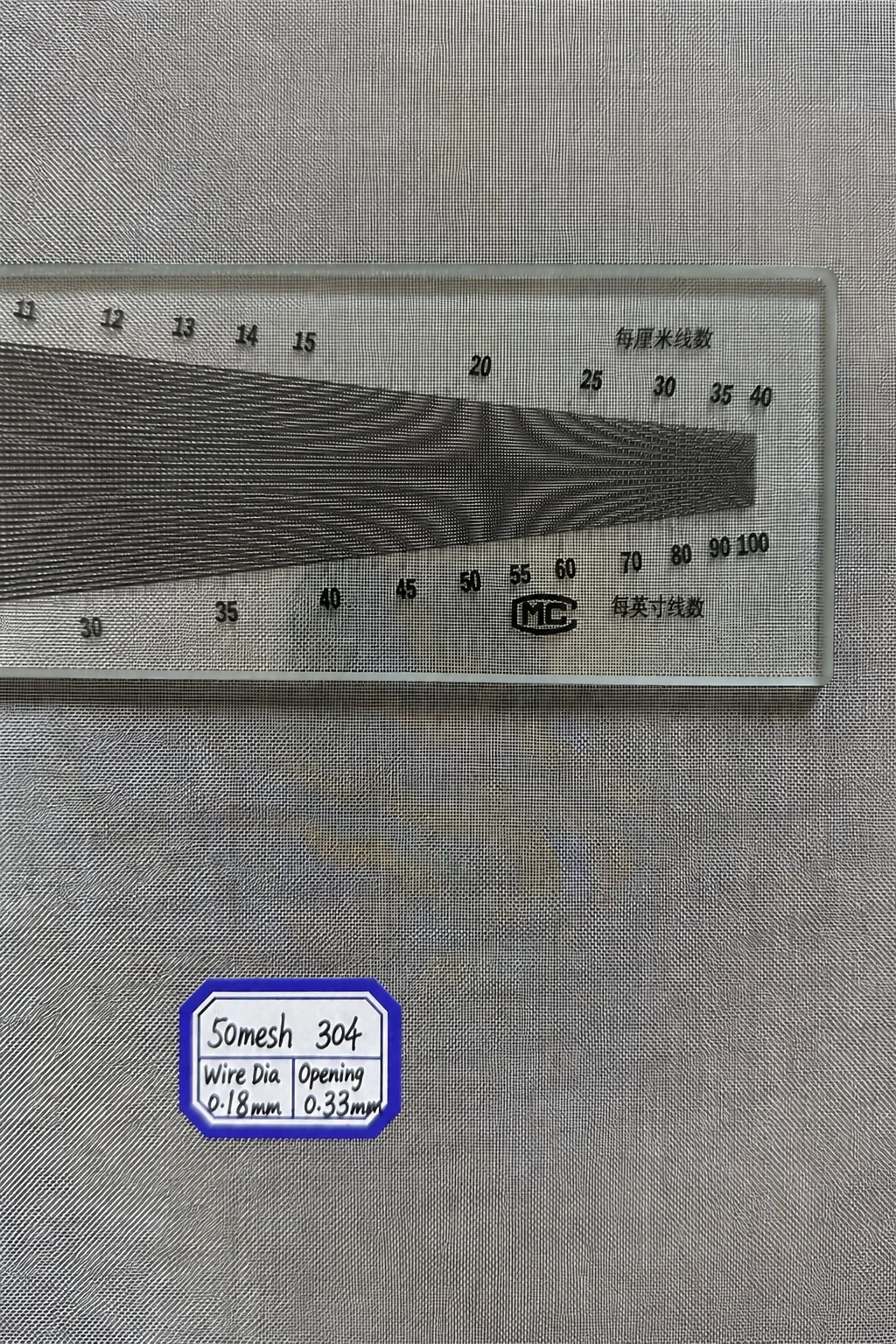

50 Mesh SS304
- Wire
- 0.18 mm
- Opening¹
- 0.33 mm

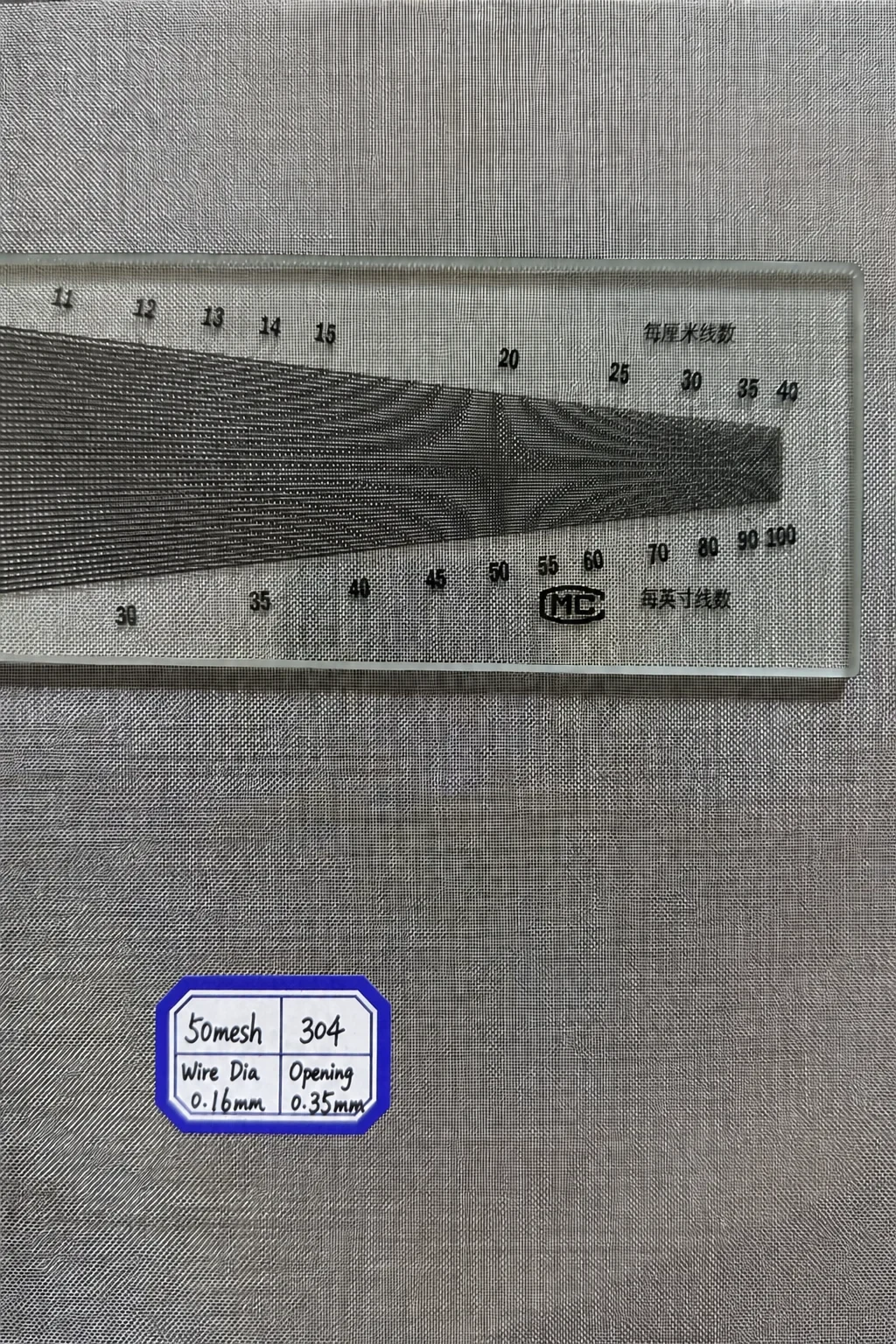

50 Mesh SS304
- Wire
- 0.16 mm
- Opening¹
- 0.35 mm

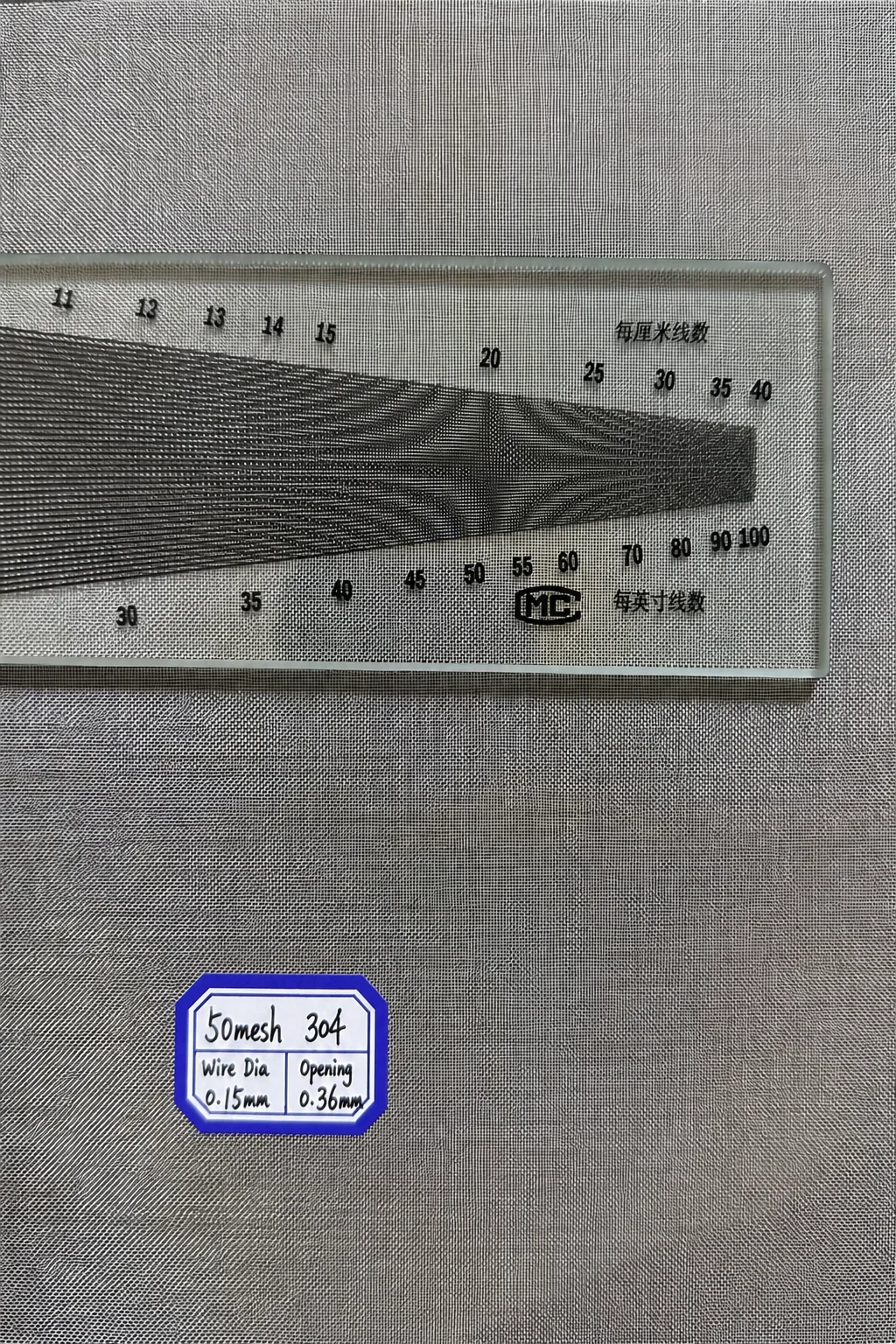

50 Mesh SS304
- Wire
- 0.15 mm
- Opening¹
- 0.36 mm

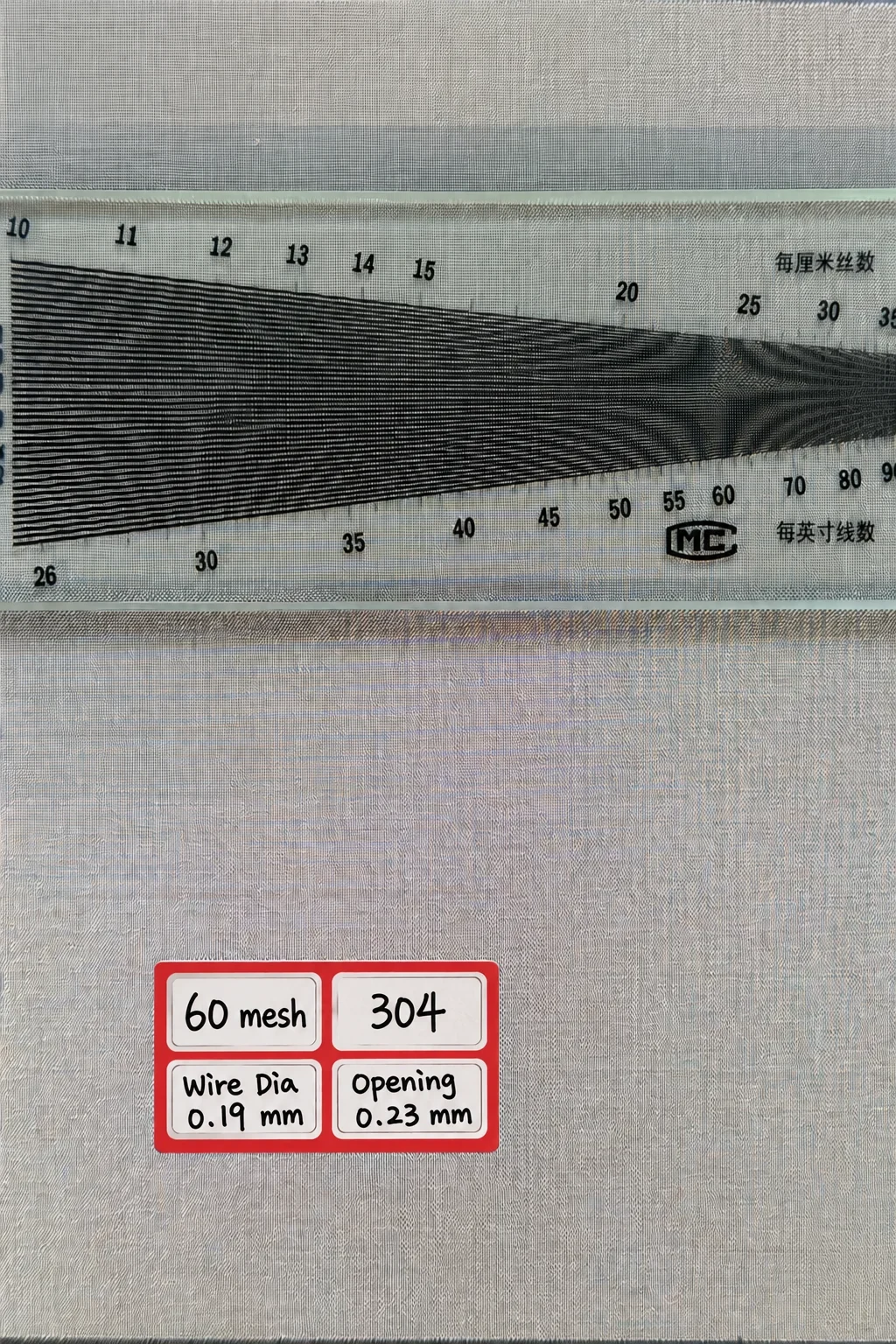

60 Mesh SS304
- Wire
- 0.19 mm
- Opening¹
- 0.23 mm

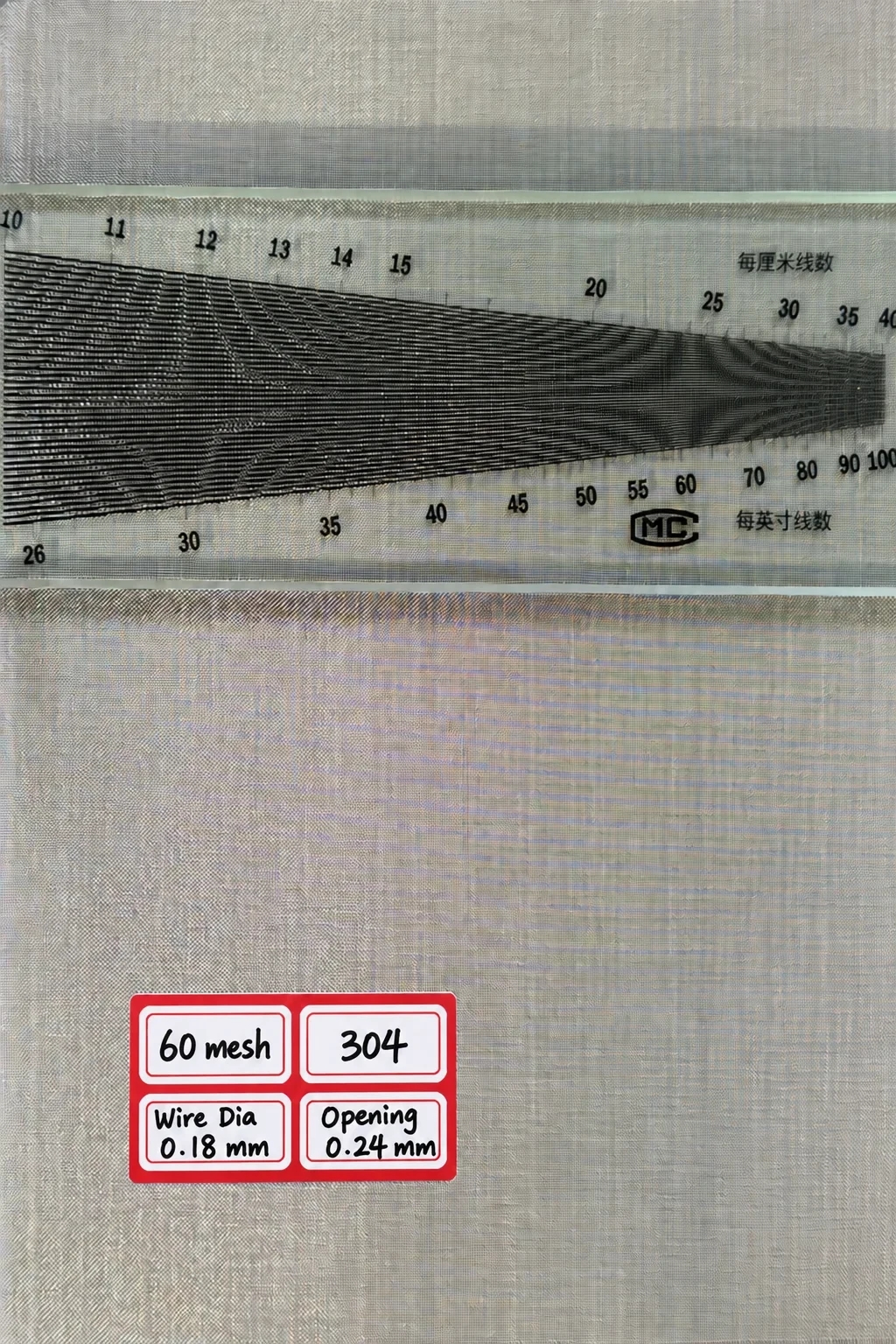

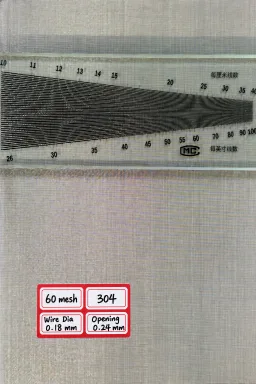

60 Mesh SS304
- Wire
- 0.18 mm
- Opening¹
- 0.24 mm

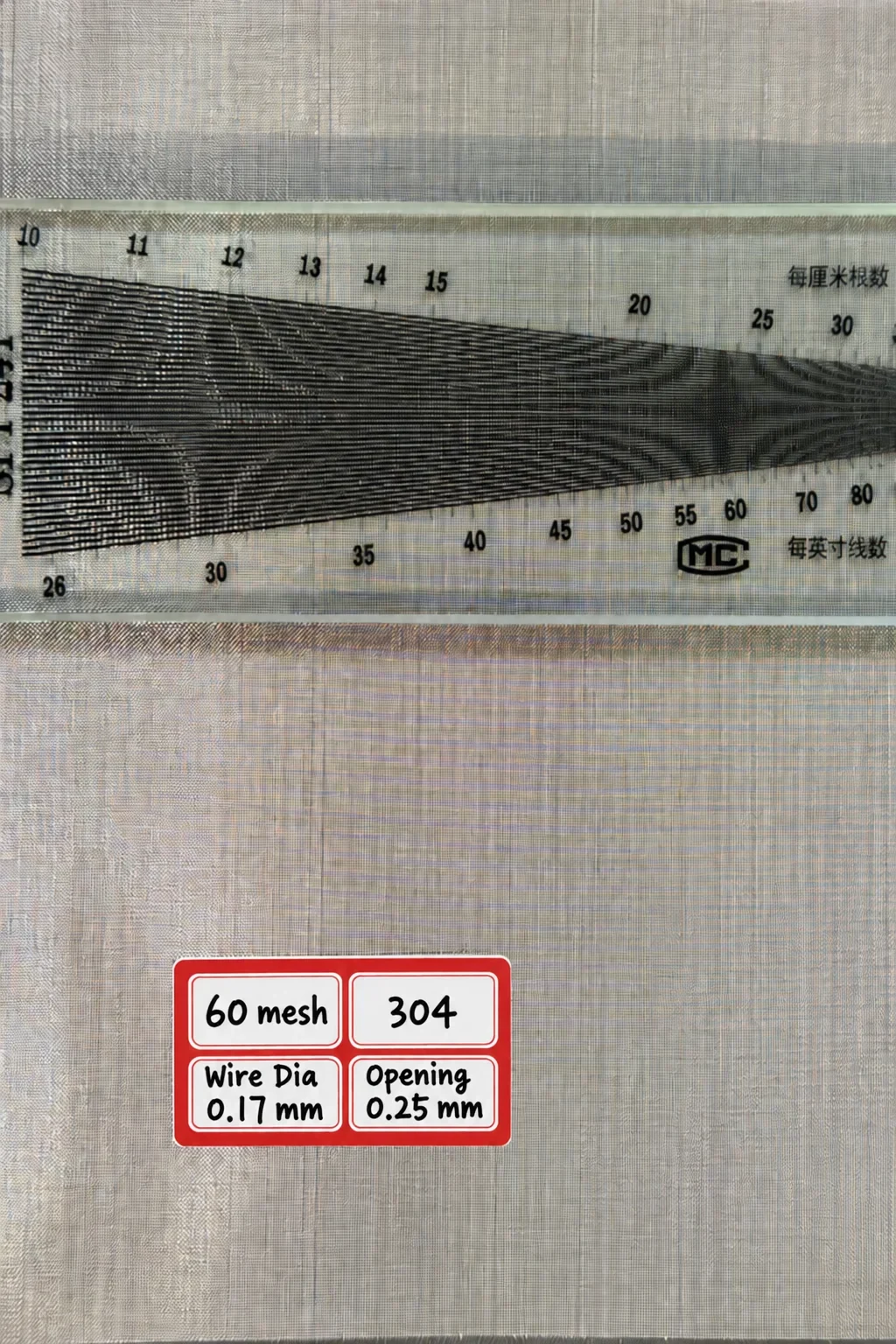

60 Mesh SS304
- Wire
- 0.17 mm
- Opening¹
- 0.25 mm

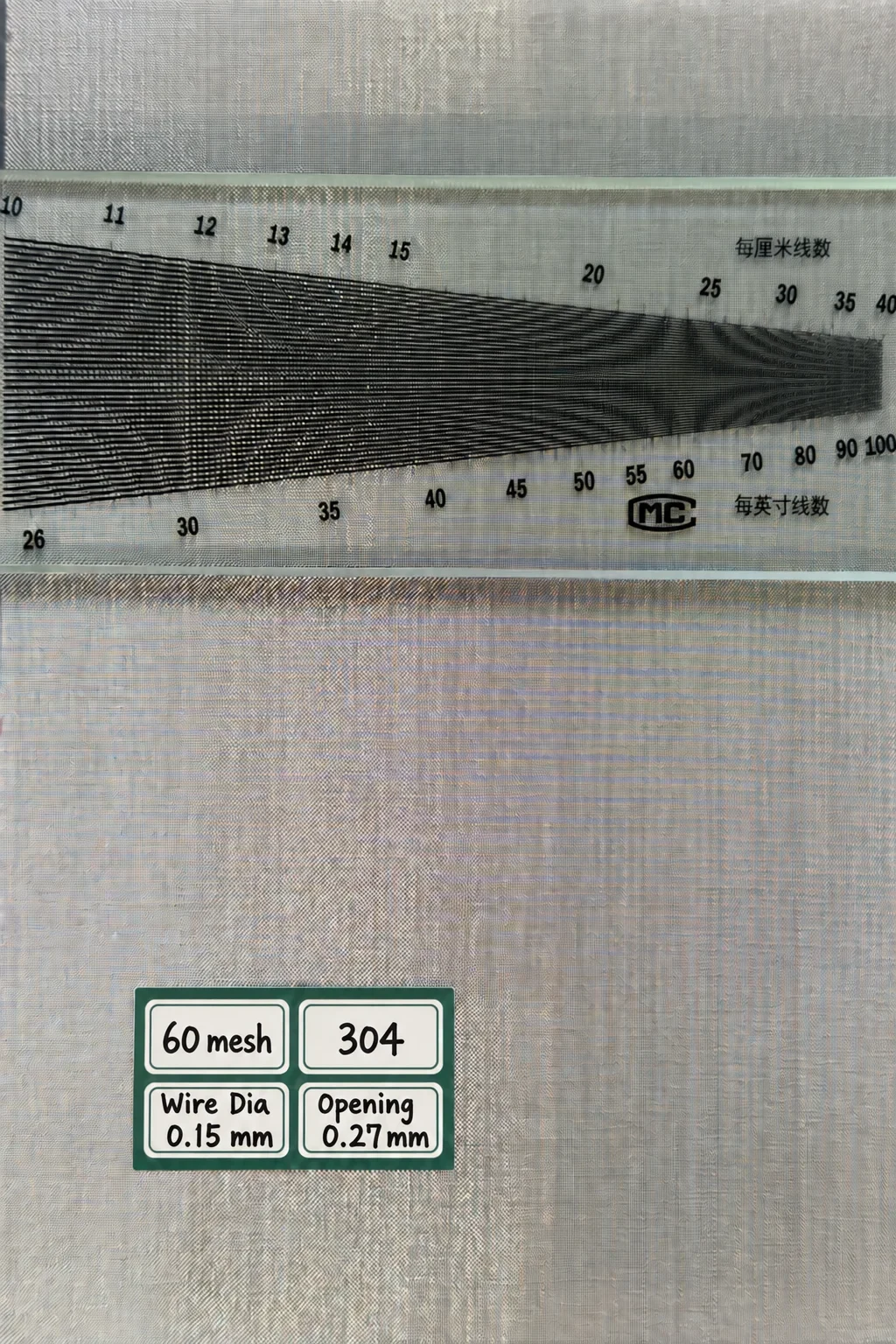

60 Mesh SS304
- Wire
- 0.15 mm
- Opening¹
- 0.27 mm

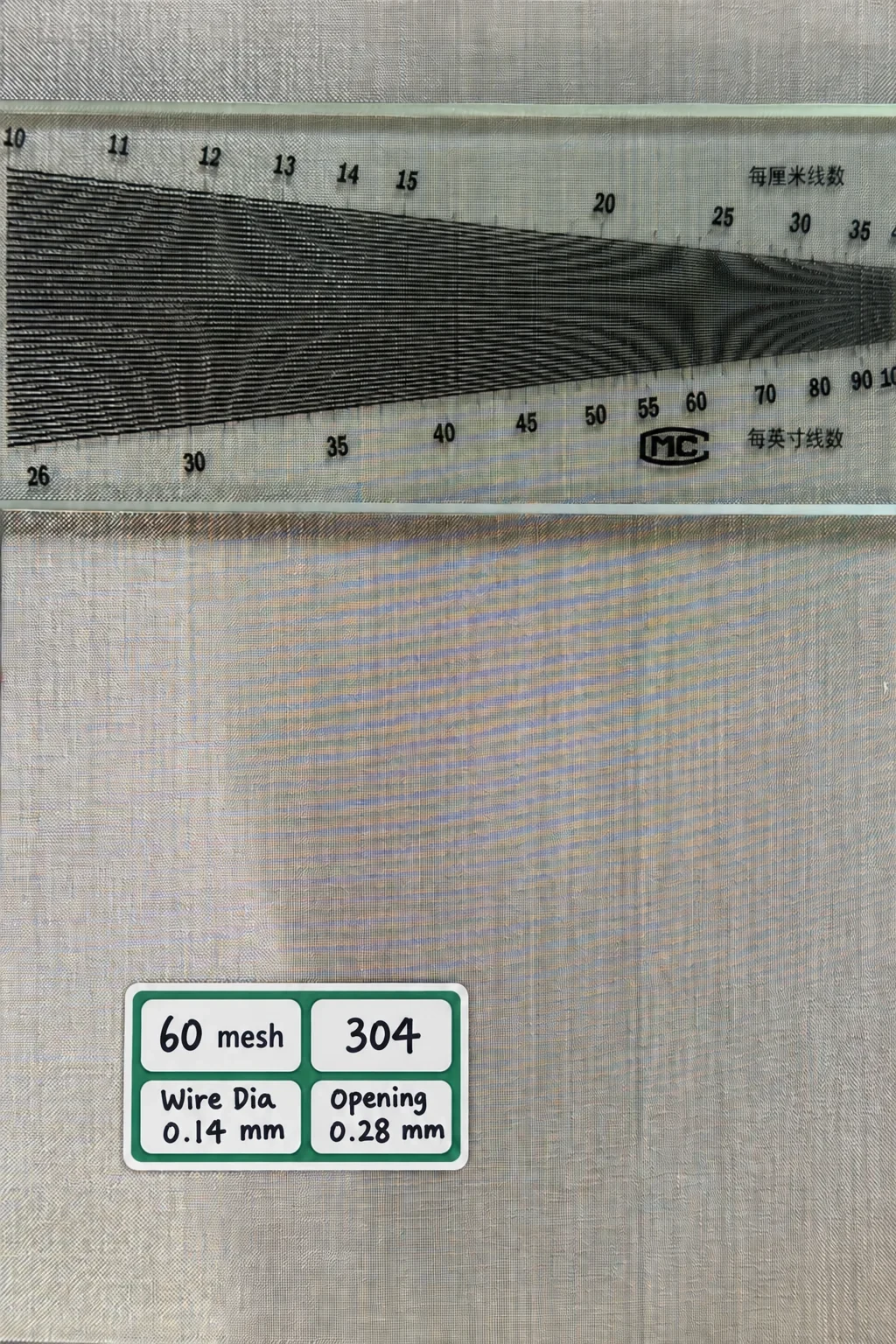

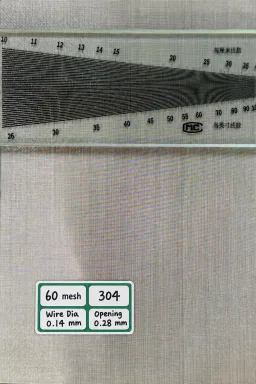

60 Mesh SS304
- Wire
- 0.14 mm
- Opening¹
- 0.28 mm

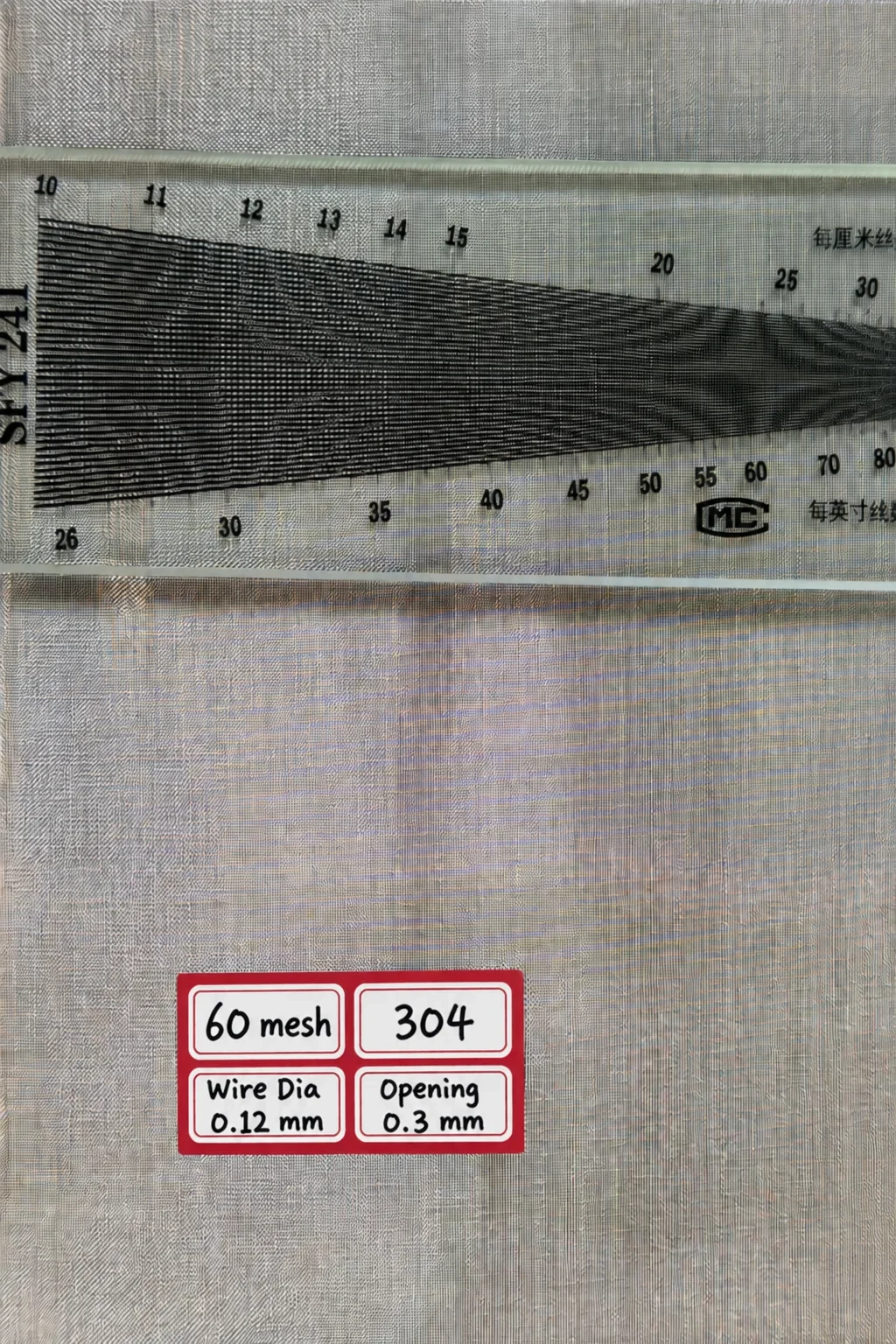

60 Mesh SS304
- Wire
- 0.12 mm
- Opening¹
- 0.3 mm

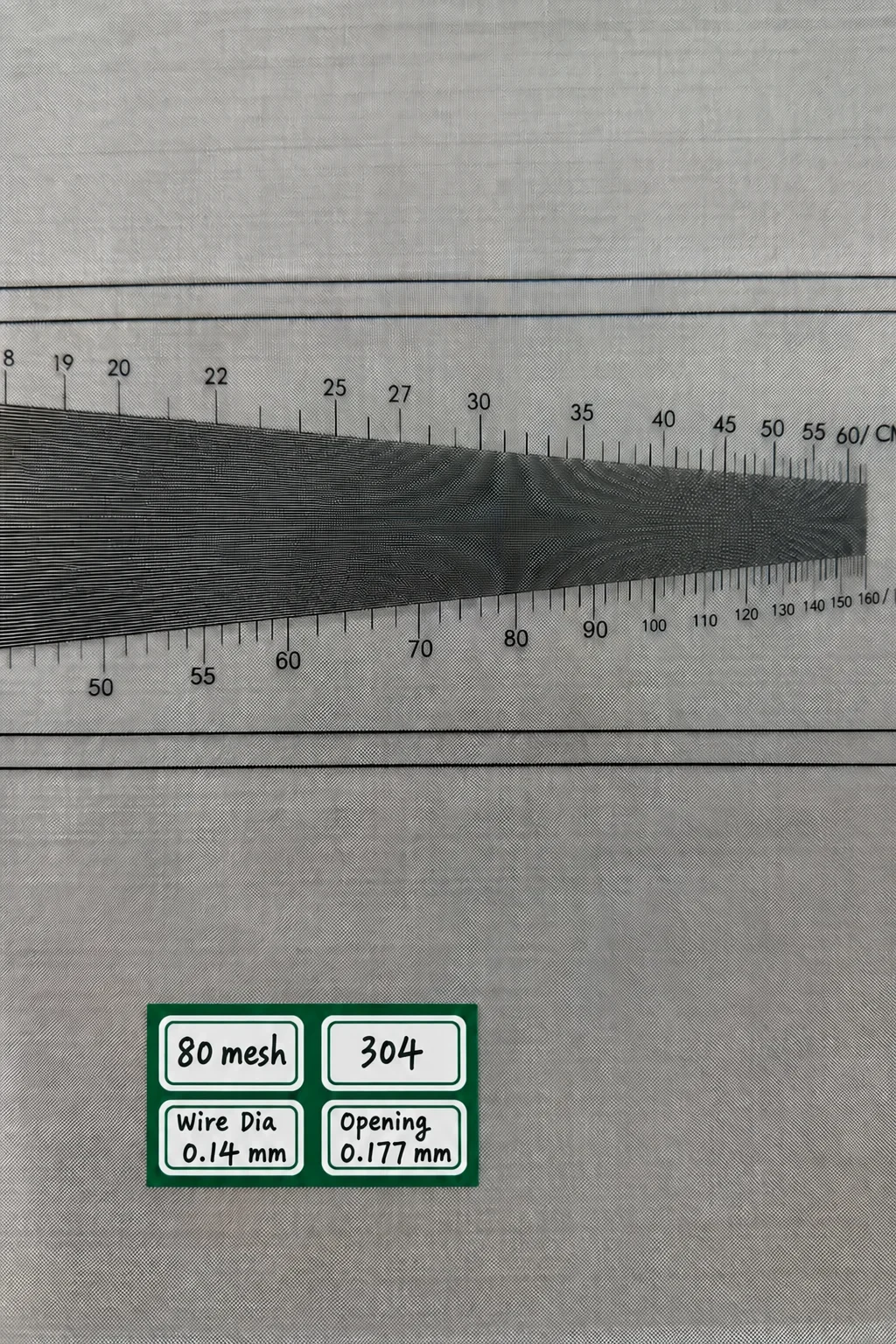

80 Mesh SS304
- Wire
- 0.14 mm
- Opening¹
- 0.177 mm

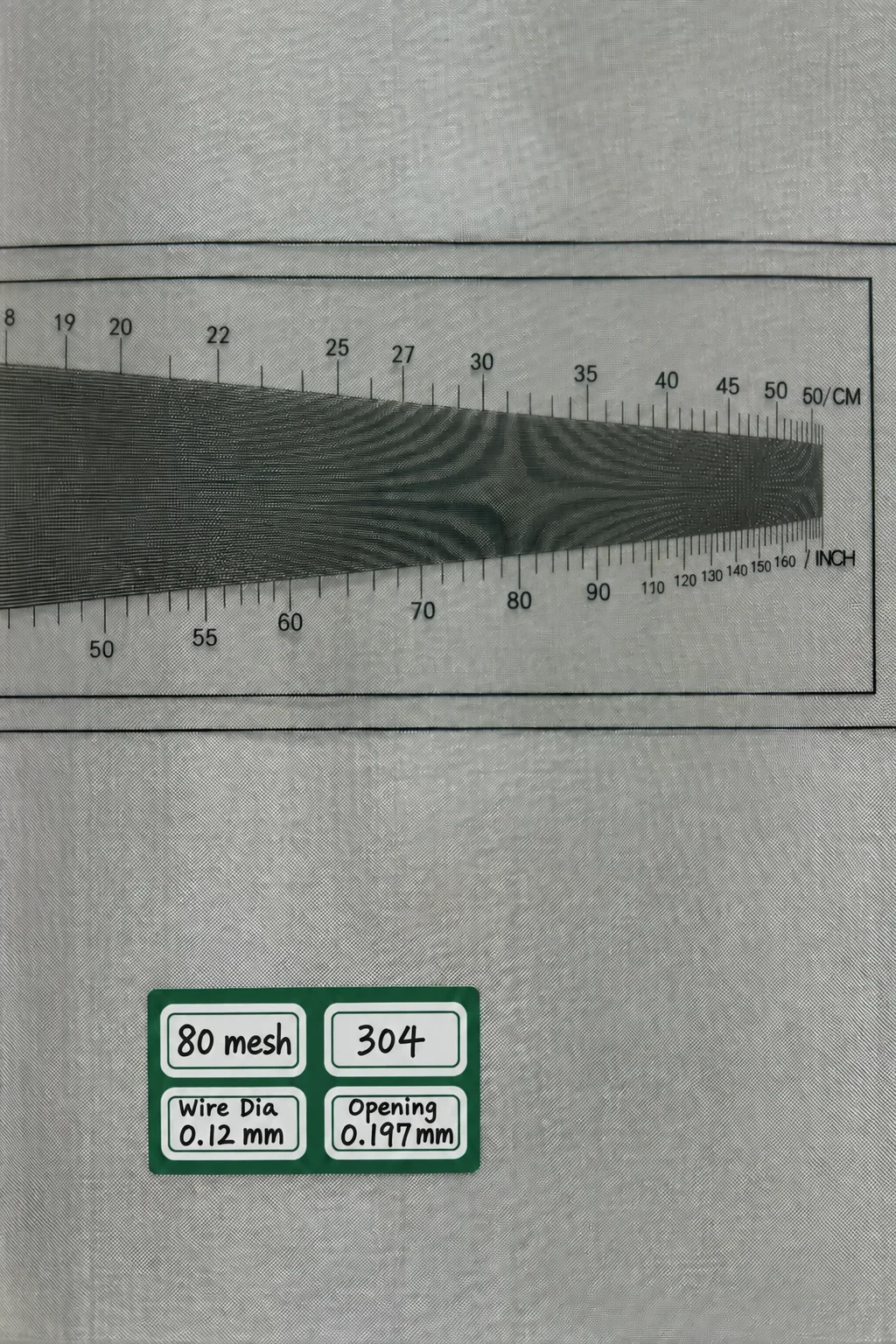

80 Mesh SS304
- Wire
- 0.12 mm
- Opening¹
- 0.197 mm

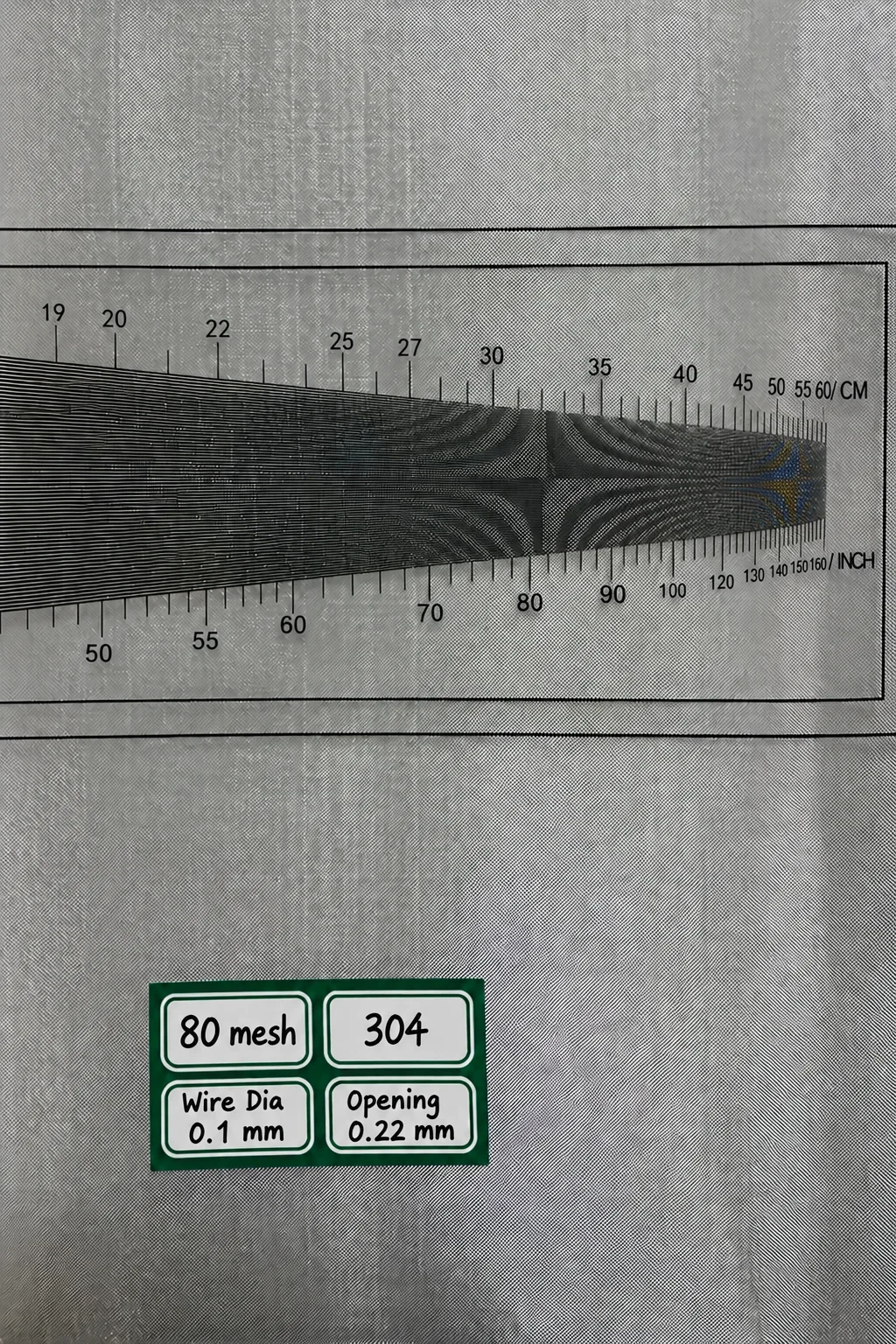

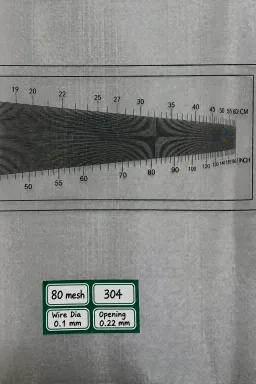

80 Mesh SS304
- Wire
- 0.1 mm
- Opening¹
- 0.22 mm

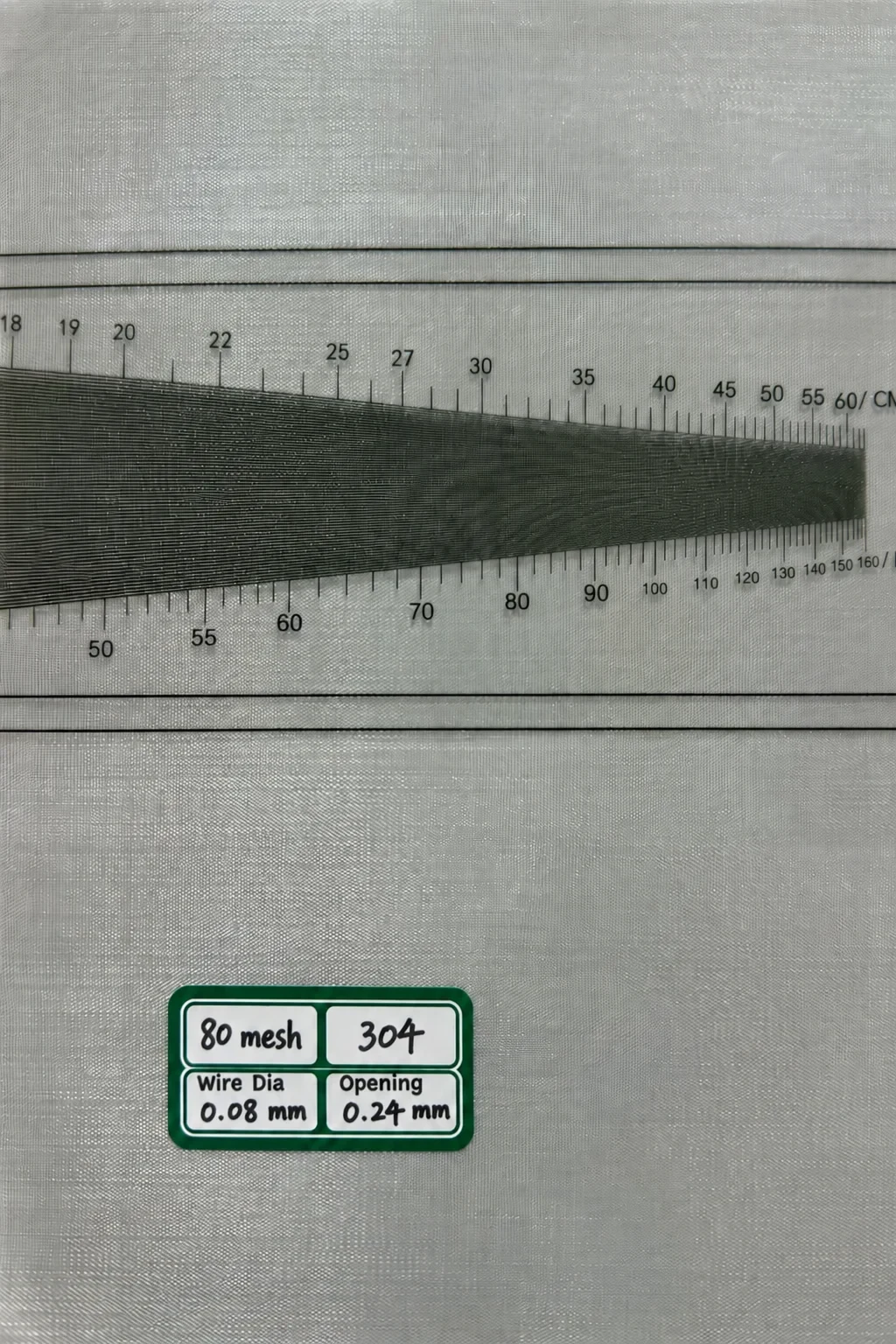

80 Mesh SS304
- Wire
- 0.08 mm
- Opening¹
- 0.24 mm

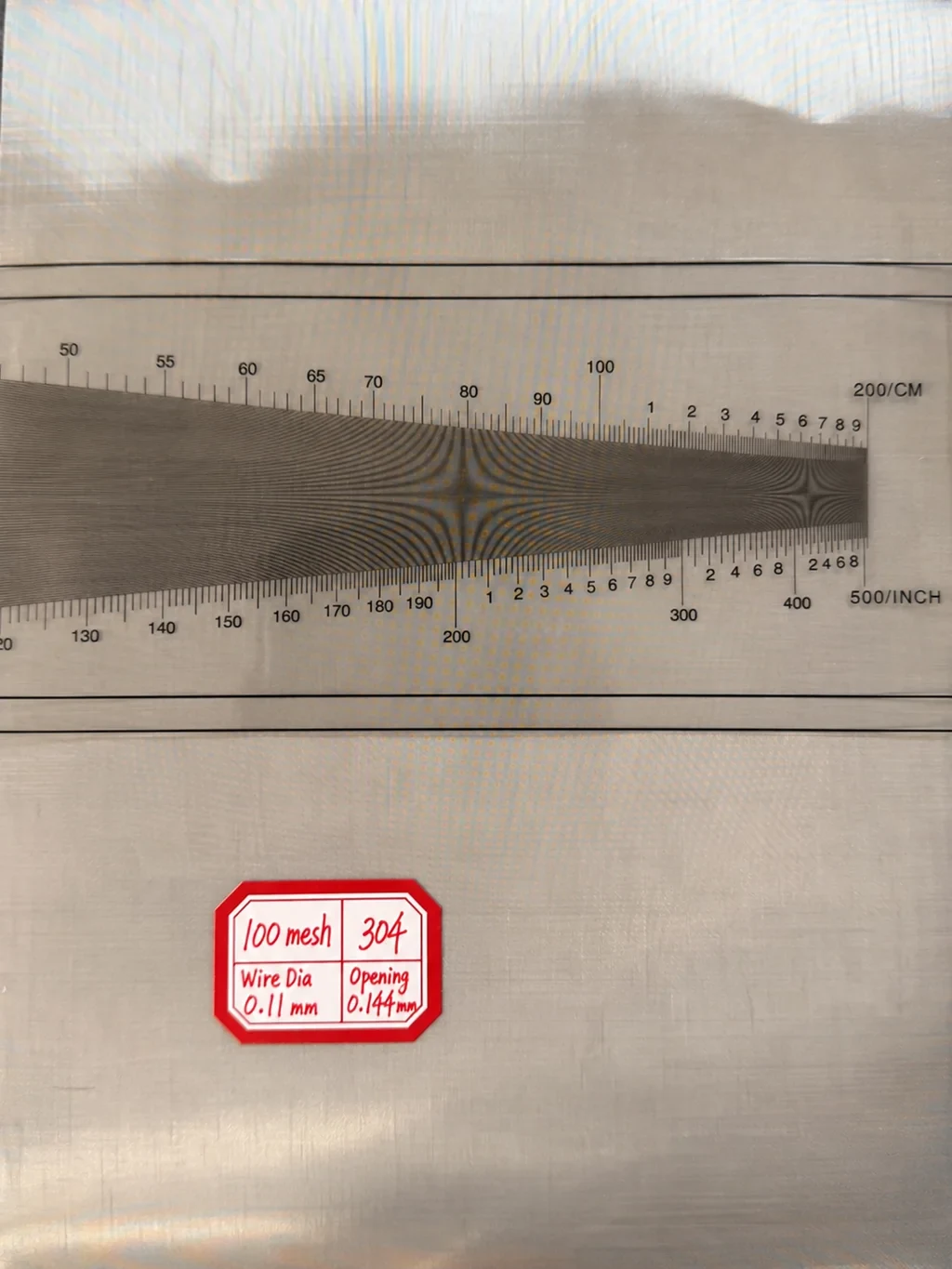

100 Mesh SS304
- Wire
- 0.11 mm
- Opening¹
- 0.144 mm

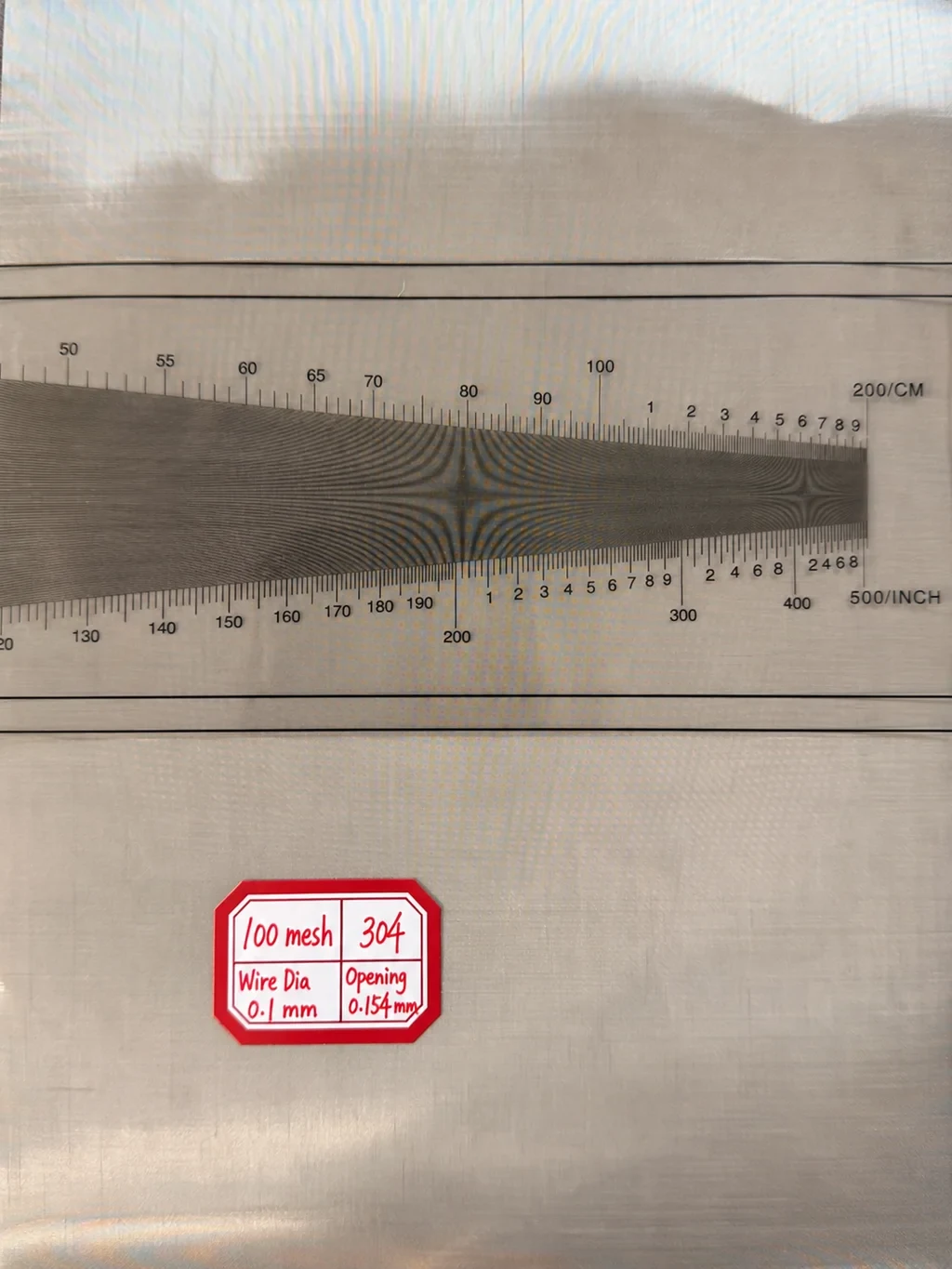

100 Mesh SS304
- Wire
- 0.1 mm
- Opening¹
- 0.154 mm

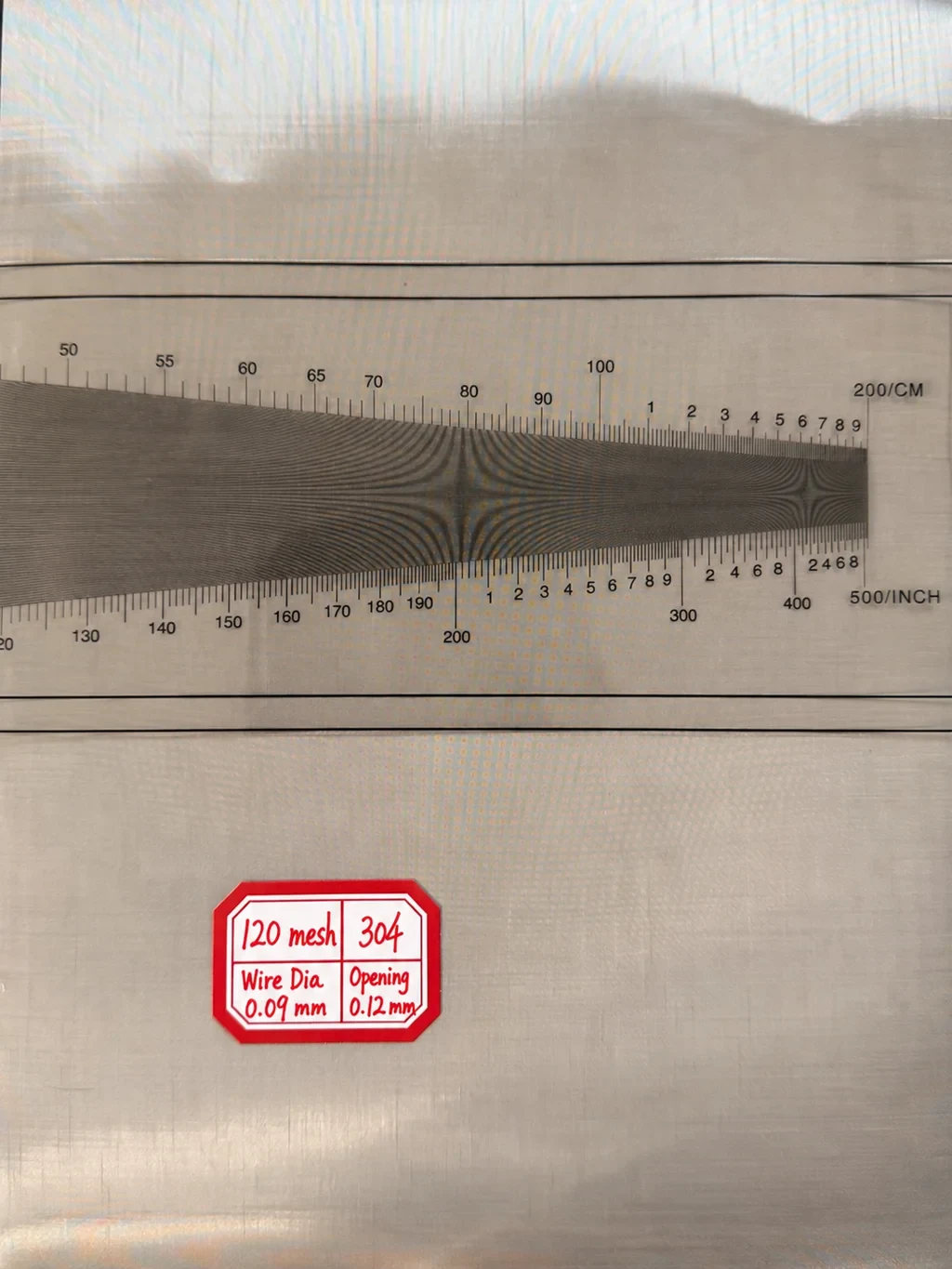

120 Mesh SS304
- Wire
- 0.09 mm
- Opening¹
- 0.12 mm
120 Mesh SS304
- Wire
- 0.08 mm
- Opening¹
- 0.13 mm

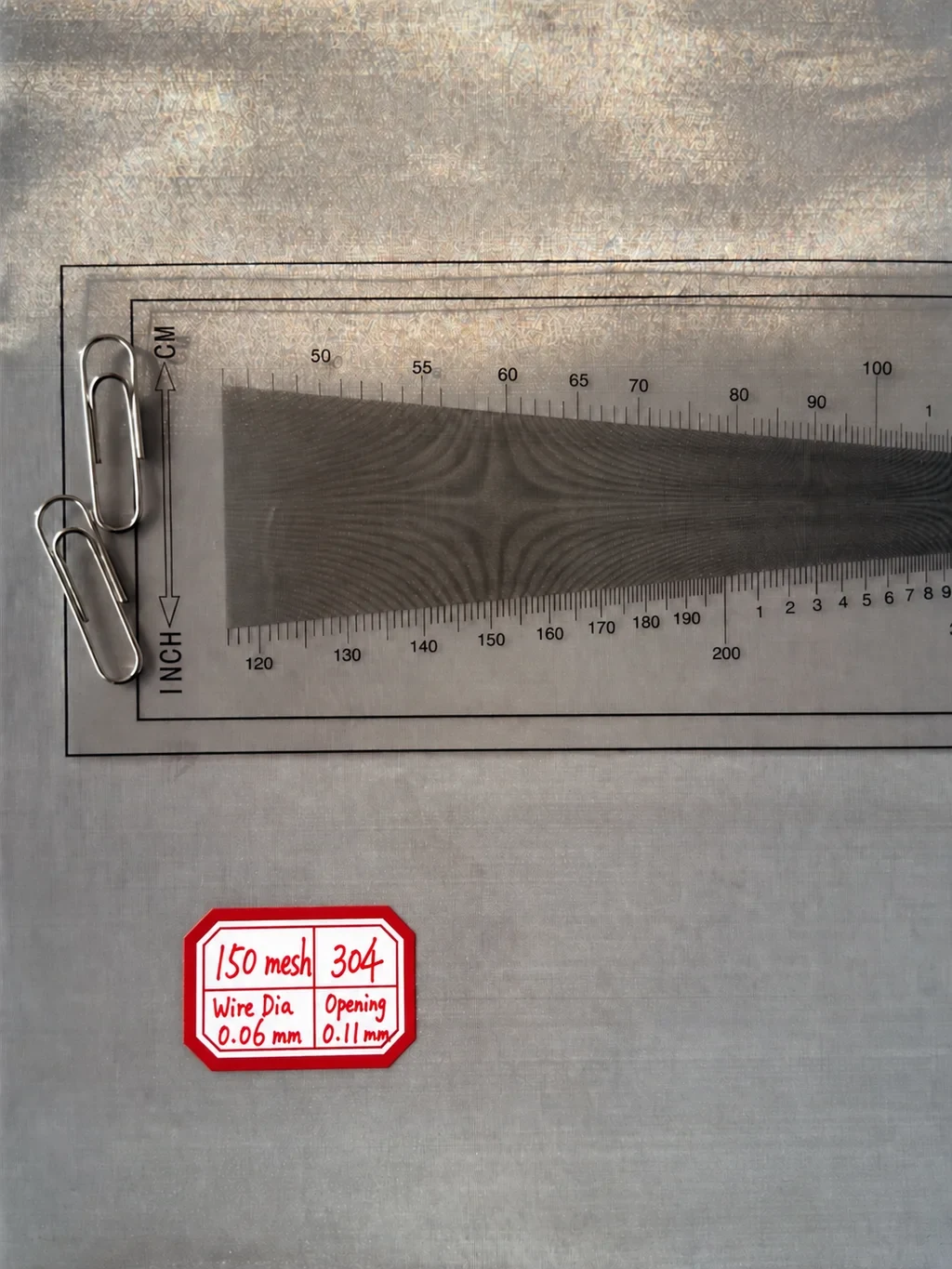

150 Mesh SS304
- Wire
- 0.06 mm
- Opening¹
- 0.11 mm

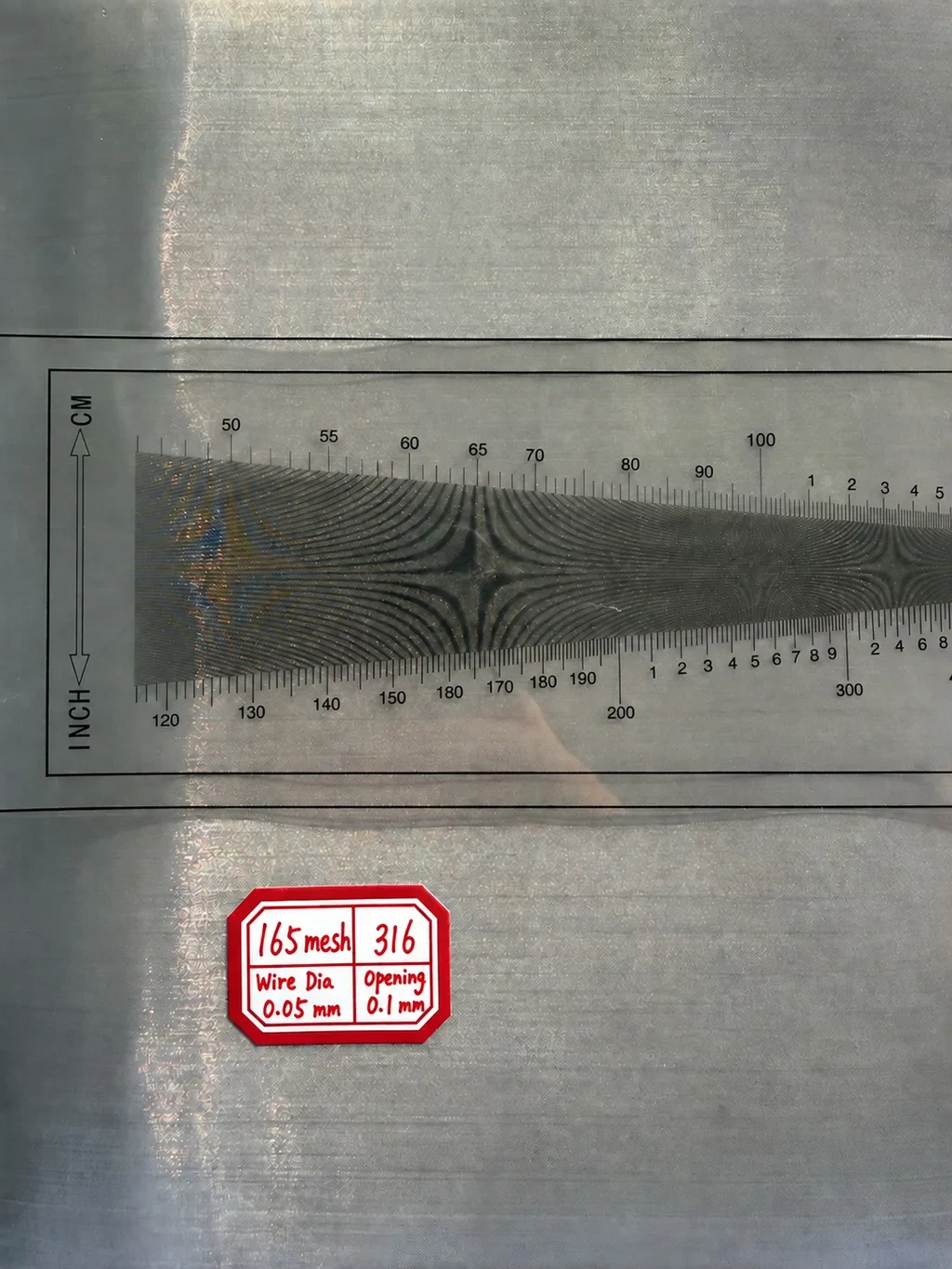

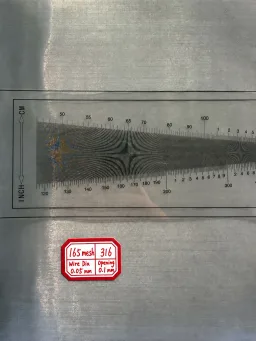

165 Mesh SS316
- Wire
- 0.05 mm
- Opening¹
- 0.1 mm

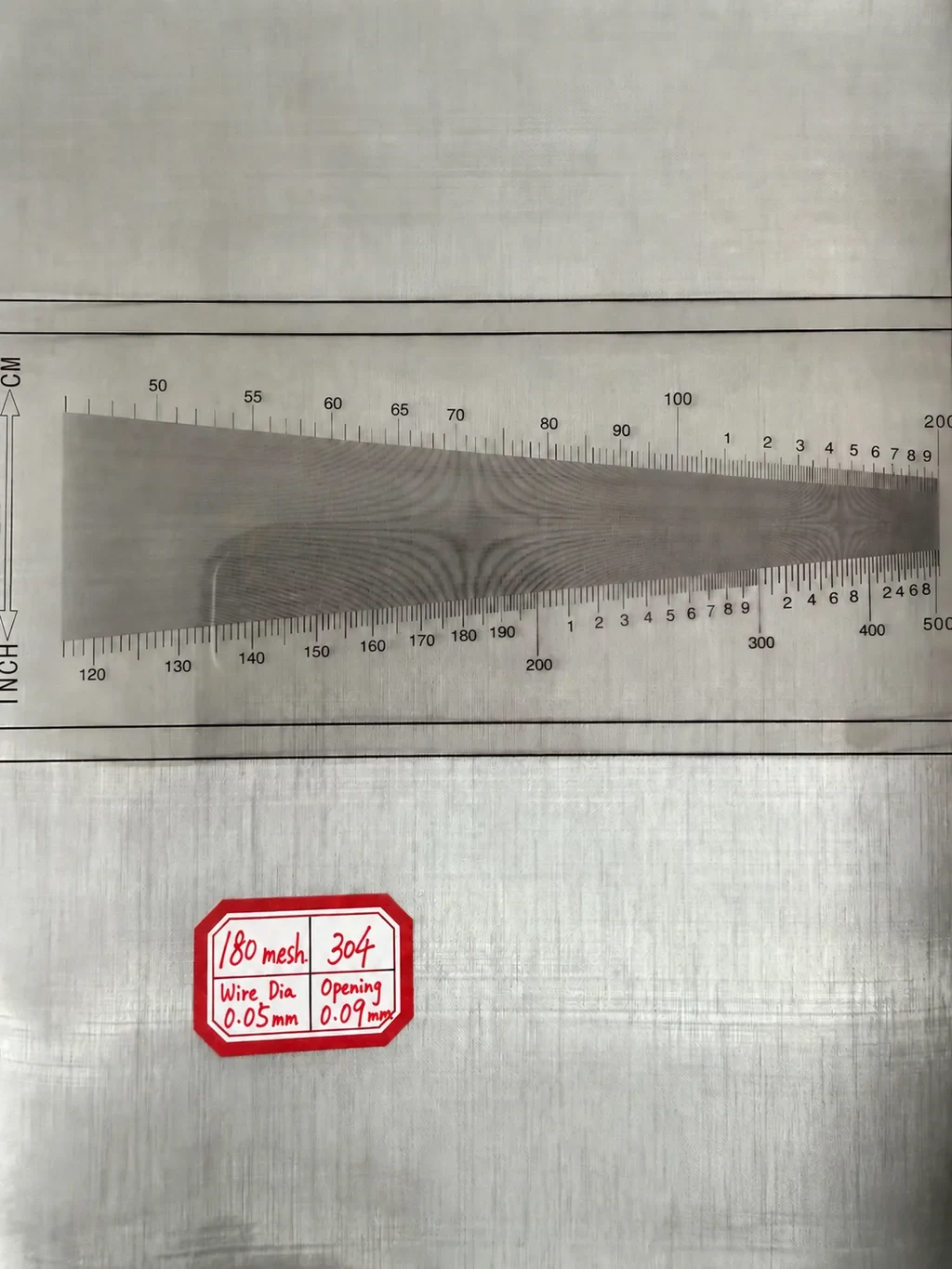

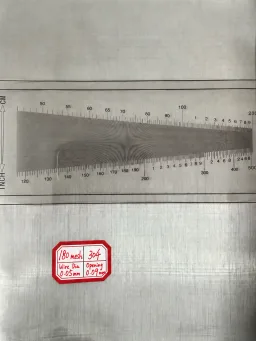

180 Mesh SS304
- Wire
- 0.05 mm
- Opening¹
- 0.09 mm

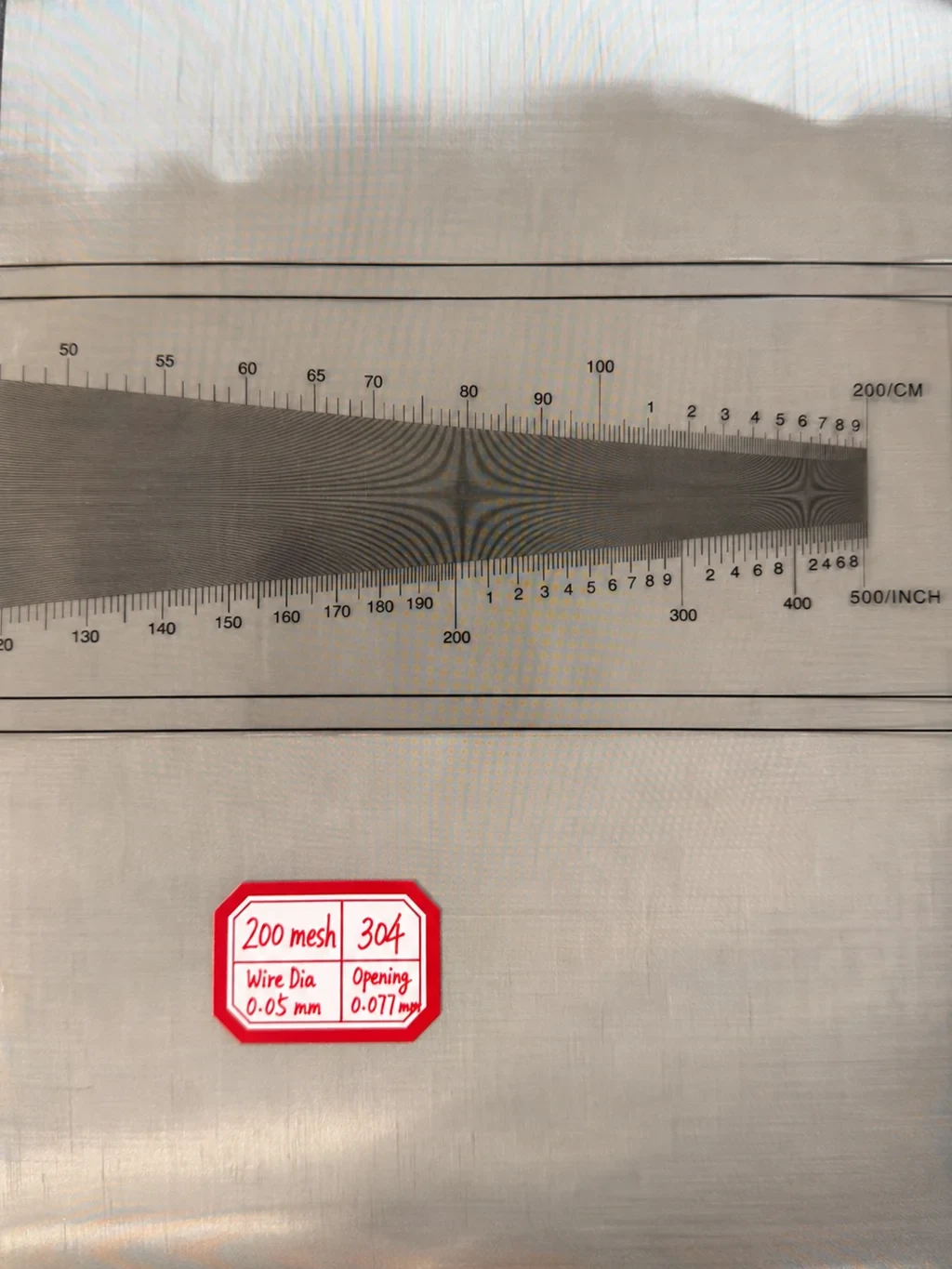

200 Mesh SS304
- Wire
- 0.05 mm
- Opening¹
- 0.077 mm

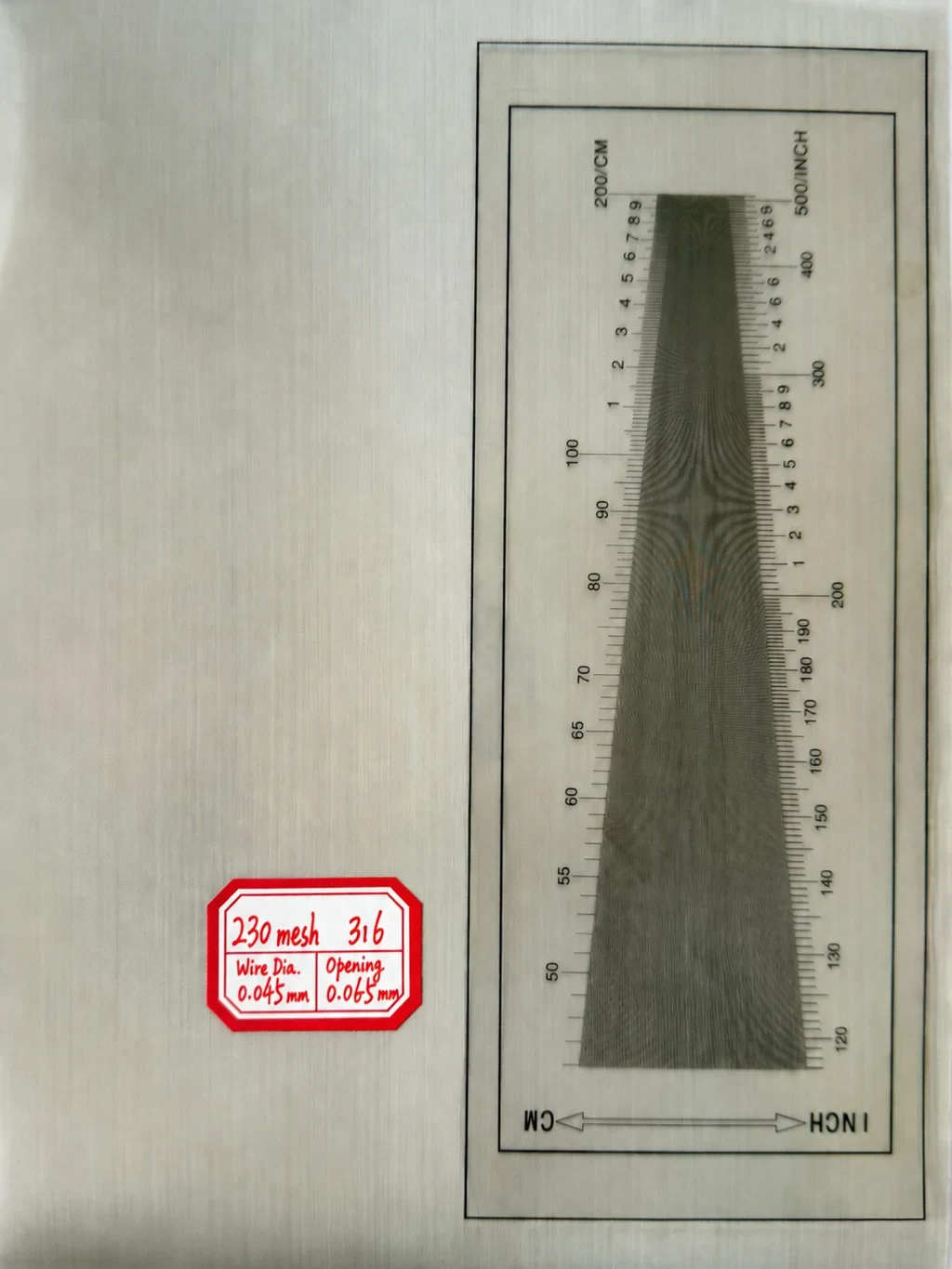

230 Mesh SS316
- Wire
- 0.045 mm
- Opening¹
- 0.065 mm

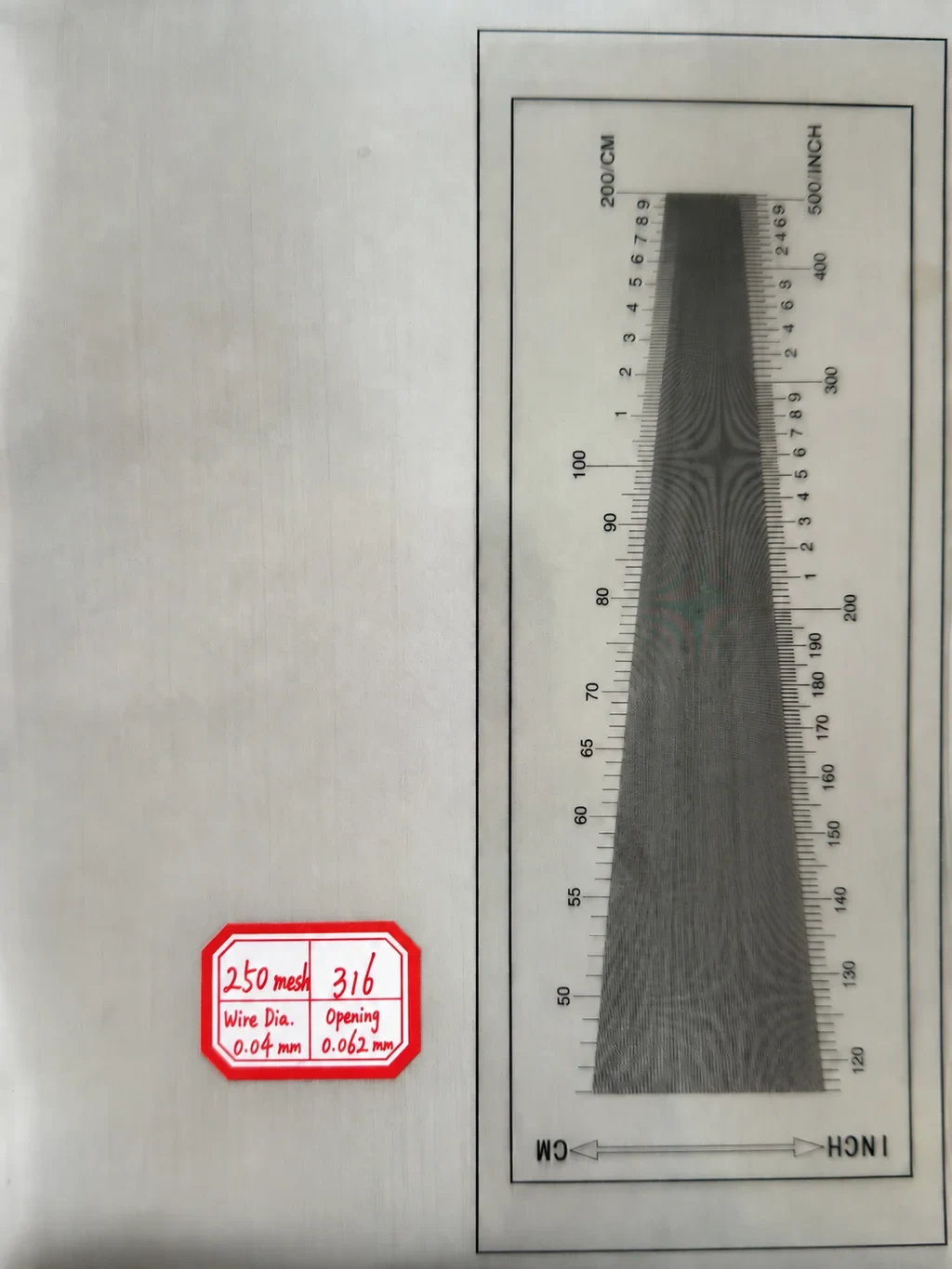

250 Mesh SS316
- Wire
- 0.04 mm
- Opening¹
- 0.062 mm

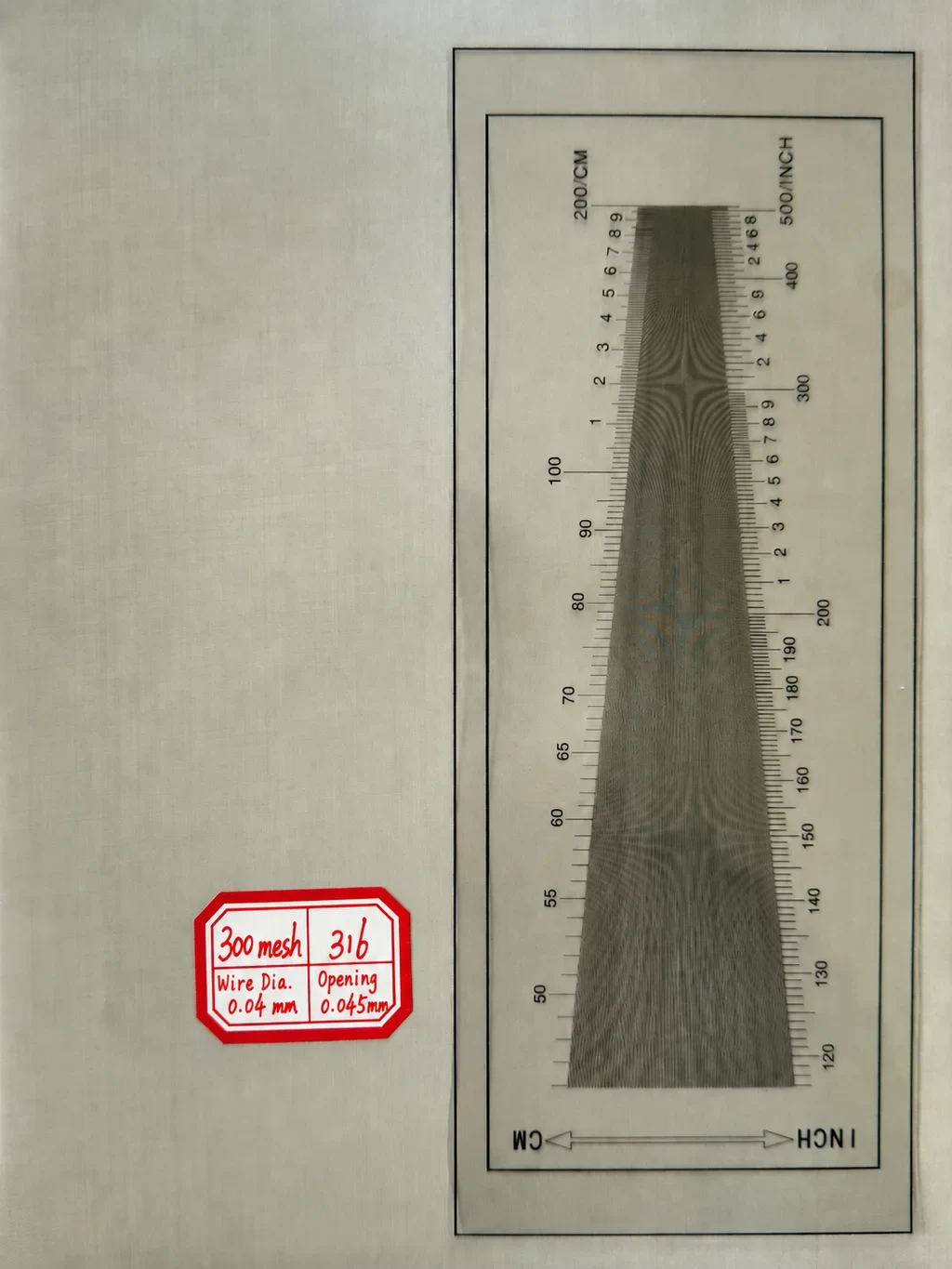

300 Mesh SS316
- Wire
- 0.04 mm
- Opening¹
- 0.045 mm
No matching references. Try another mesh count, diameter or grade.
¹ Openings shown on cards are transcribed from the supplied image labels and may be rounded. Photos provide a visual reference; confirm dimensions, weave and material documentation for your order.
How to Read the Chart
Mesh count alone does not define an opening. Read the wire diameter and opening together.
1Mesh count
Openings per linear inch (25.4 mm). A higher count generally produces smaller openings when wire diameter is comparable.
2Wire diameter
The thickness of one wire. The same mesh count can use different wire diameters and have different clear openings.
3Opening size

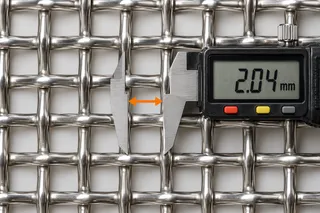

For regular square woven mesh: opening (mm) = 25.4 ÷ mesh count − wire diameter (mm). Multiply mm by 1,000 for µm.
Selected Stainless Steel Wire Mesh Sizes
Nominal openings below are calculated for square weave. Label values reflect the reference images.
| Mesh / inch | Wire (mm) | Image label opening (mm) | Nominal opening (mm) | Nominal aperture (µm) | Grade label |
|---|---|---|---|---|---|
| 10 | 0.5 | 2.04 | 2.0400 | 2040 | SS304 |
| 20 | 0.4 | 0.87 | 0.8700 | 870 | SS304 |
| 30 | 0.3 | 0.55 | 0.5467 | 547 | SS304 |
| 40 | 0.2 | 0.435 | 0.4350 | 435 | SS304 |
| 50 | 0.21 | 0.3 | 0.2980 | 298 | SS304 |
| 60 | 0.14 | 0.28 | 0.2833 | 283 | SS304 |
| 80 | 0.14 | 0.177 | 0.1775 | 178 | SS304 |
| 100 | 0.1 | 0.154 | 0.1540 | 154 | SS304 |
| 150 | 0.06 | 0.11 | 0.1093 | 109 | SS304 |
| 200 | 0.05 | 0.077 | 0.0770 | 77 | SS304 |
| 250 | 0.04 | 0.062 | 0.0616 | 62 | SS316 |
| 300 | 0.04 | 0.045 | 0.0447 | 45 | SS316 |
Dutch weave filtration ratings need product-specific data; the square-opening formula does not apply. Use the mesh calculator or read the mesh-to-micron guide.
Continue to woven wire mesh specifications,plain weave mesh ortwill weave mesh to confirm the construction. For material selection and inspection examples, review304 stainless steel wire mesh and316 stainless steel wire mesh.
Buyer questions
Wire Mesh Size FAQ
How do I convert mesh count to opening size?
For regular square woven wire mesh, opening (mm) = 25.4 ÷ mesh count − wire diameter (mm). Multiply the opening in mm by 1,000 to obtain microns. For example, 20 mesh with 0.40 mm wire has a nominal opening of 0.87 mm, or 870 µm.
Why does the same mesh count have different openings?
Wire diameter changes the clear opening at the same mesh count. At 20 mesh, 0.40 mm wire gives a nominal opening of 0.87 mm; 0.50 mm wire gives 0.77 mm. Specify both mesh count and wire diameter when comparing sizes.
Are the photo labels inspection certificates?
No. The cards transcribe the supplied photo labels; some values are rounded. Nominal openings are calculated for regular square weave. Confirm measured dimensions, tolerances, weave and material documentation for your order.
Does this chart give a Dutch weave filtration rating?
No. Dutch weave does not have the same regular square openings. Request product-specific filtration data for the selected weave and application instead of applying the square-opening formula.
Need help choosing the right mesh size?
Send the target opening, material, roll dimensions and application. We’ll confirm a suitable specification and availability.
Complete Wire Mesh Size Reference
Photo label values and calculated nominal square-weave openings. Prepared by YueChu Metal.
