Aluminum Expanded Metal Manufacturer in China

We supply aluminum expanded metal in common alloys with custom opening sizes, strand widths, sheet dimensions, and surface finishes for distributors, contractors, fabricators, and OEM buyers.

Custom openings & panel sizes
1060 / 3003 / 5052 / 6061 alloys
Mill, anodized, powder & PVDF finishes
Export packing for project orders

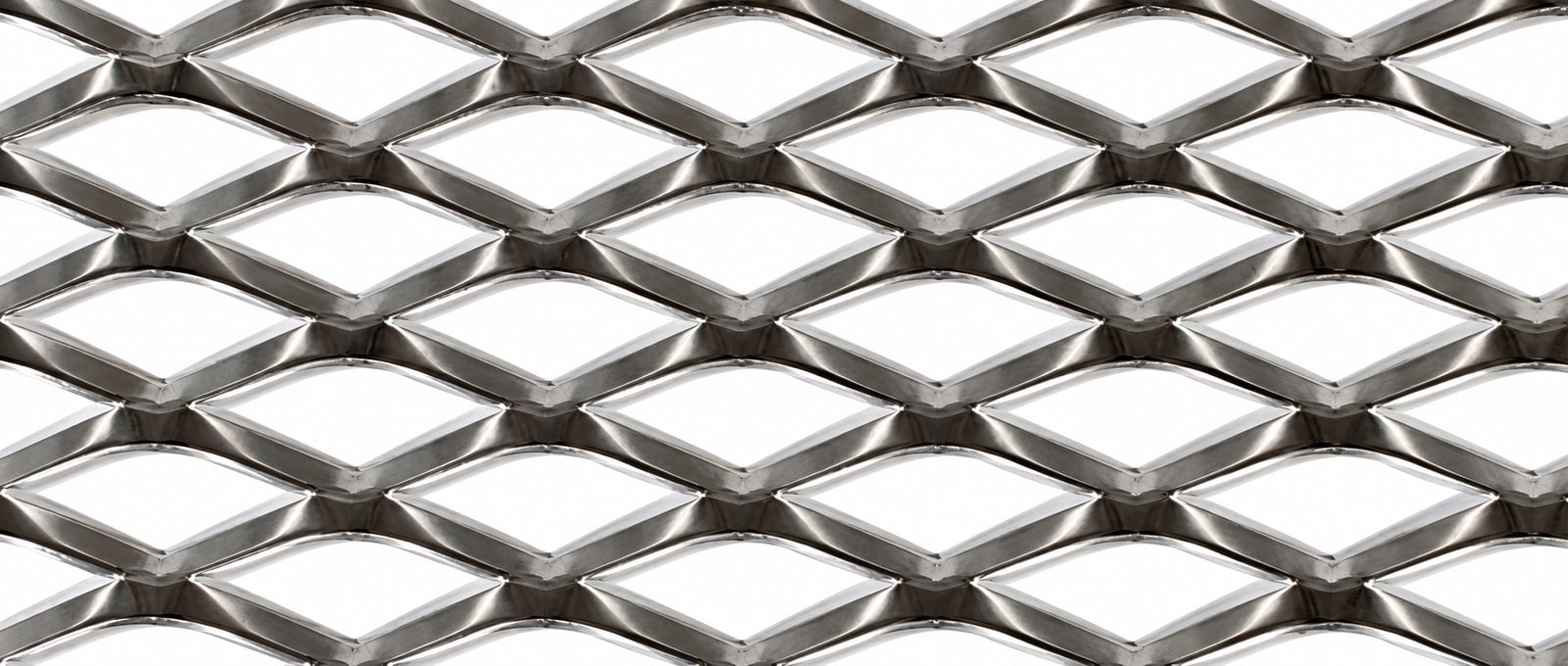

Silver aluminum expanded metal close-up showing raised diamond strands — Raised Aluminum Expanded Metal Detail

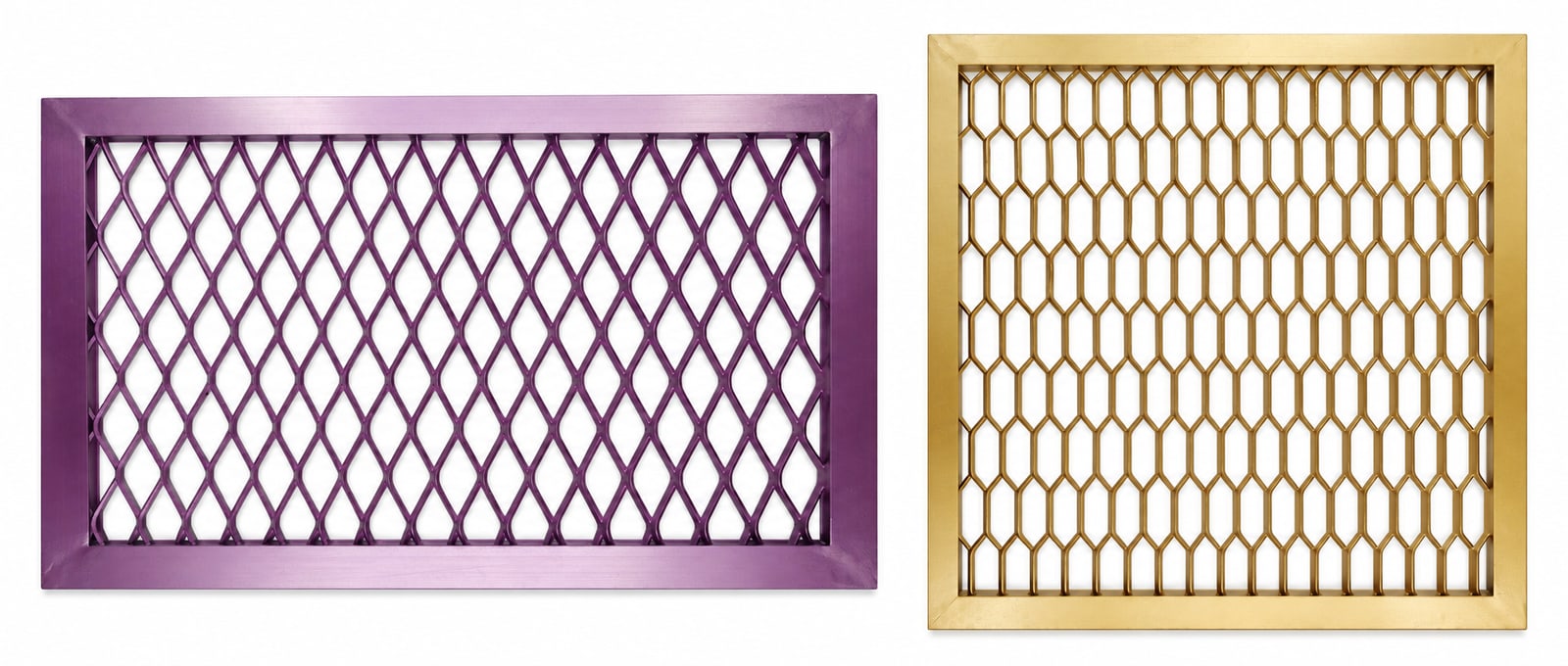

Purple and gold framed aluminum expanded metal panels with decorative opening patterns

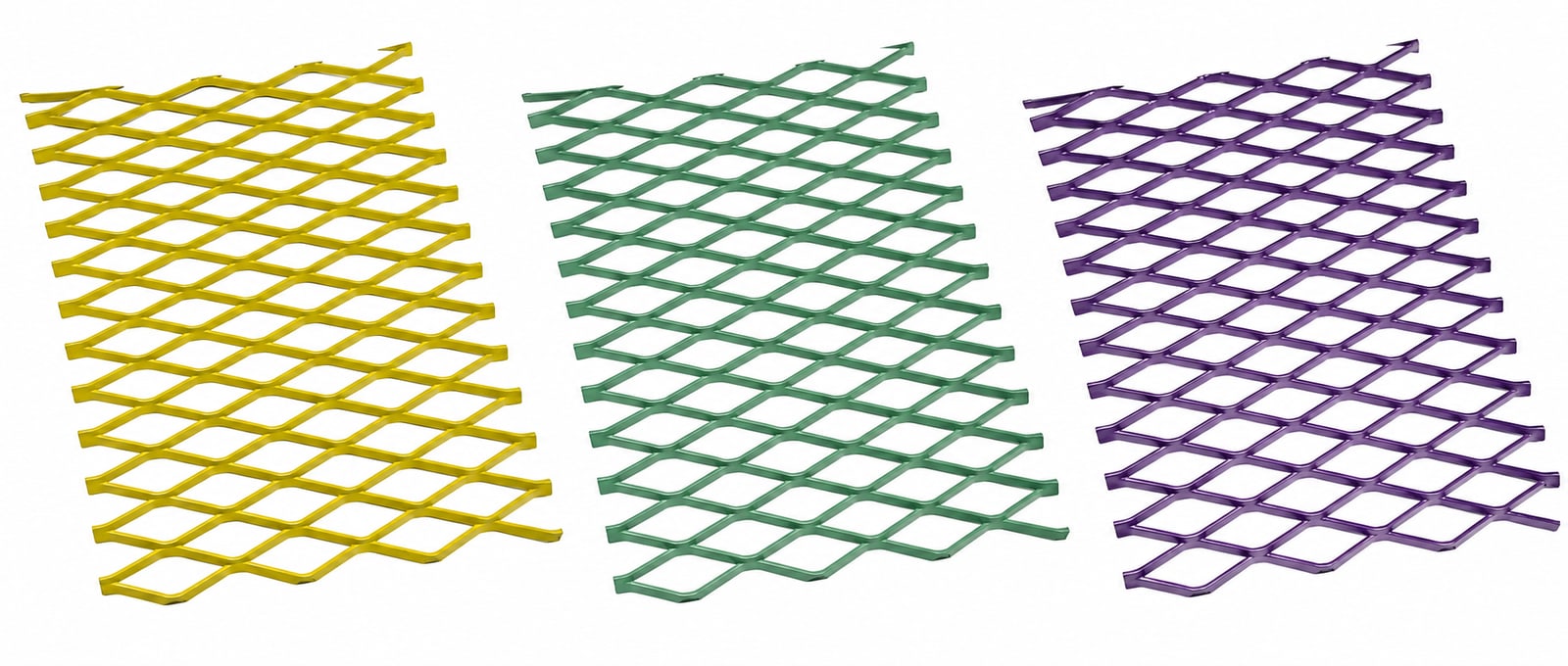

Yellow, green and purple raised aluminum expanded metal samples

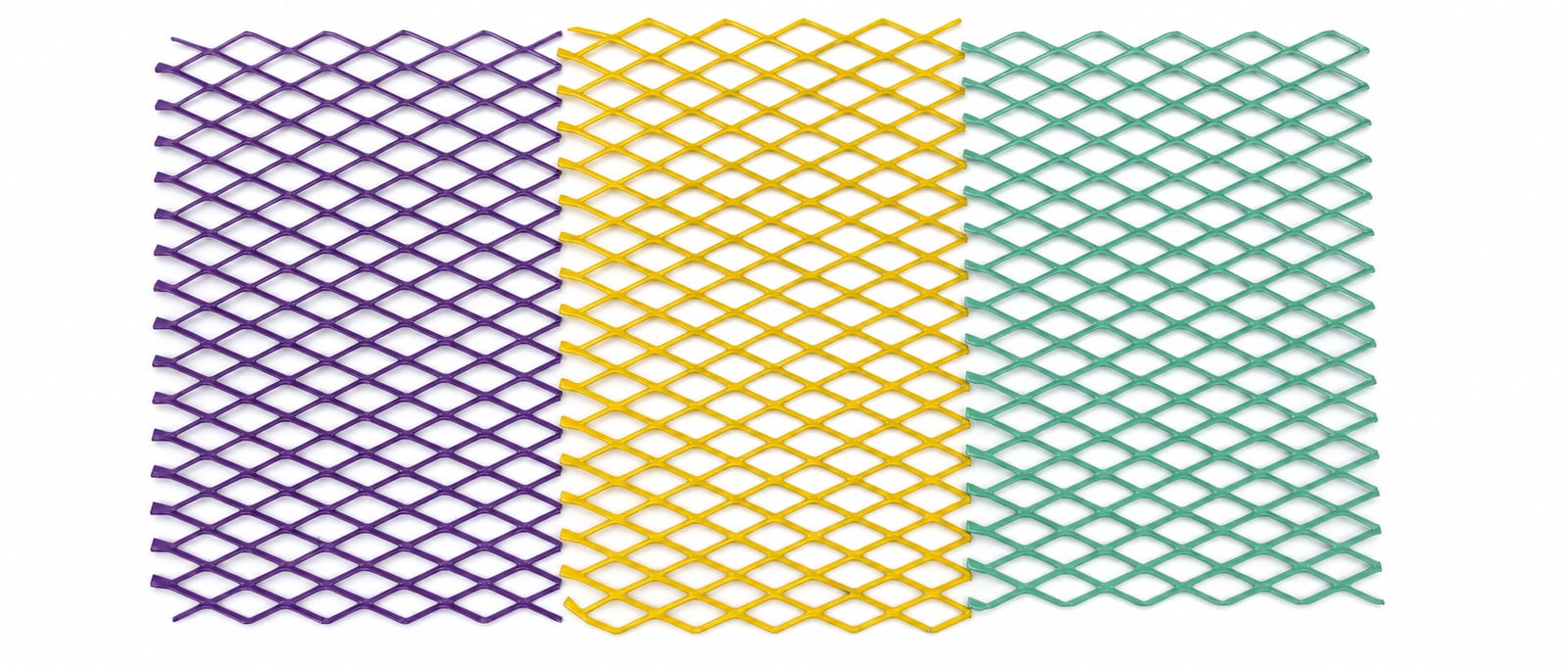

Purple, yellow and green aluminum expanded metal diamond panels

Request a Quote View Product Specifications

Custom product supply

Custom Aluminum Expanded Metal Supply

Lightweight architectural and industrial mesh with custom alloys and finishes

YueChu Metal manufactures custom aluminum expanded metal sheets for facades, ceilings, decorative screens, sunshade panels, ventilation panels, and lightweight industrial applications.

Choose the alloy, opening pattern, panel size, and finish for your architectural, fabrication, or OEM project. Drawings and samples are welcome for fast quotation review.

Expanded Metal Specifications & Dimensions

Compare reference patterns used in the USA, UK, Germany, France and Australia. Confirm material, finished dimensions and availability for your order.

For accurate quotation and production, expanded metal mesh should be measured by SWD (Short Way of Diamond), LWD (Long Way of Diamond), strand width, sheet thickness, sheet width, and sheet length. These expanded metal mesh specifications directly affect opening size, weight, strength, ventilation rate, and application performance.

When sending an inquiry for aluminum expanded metal, include these measurements for faster quotation and production.

YueChu Metal expanded metal mesh specification diagram showing sheet width B, sheet length L, strand width b, thickness d, short way TL and long way TB — Expanded metal sheet and enlarged opening with dimension labels.View Full-Size Diagram (opens in a new tab)

Pitch ≠ clear opening. Diagram labels: TL = short way, TB = long way, b = strand width, d = metal thickness, B = sheet width and L = sheet length. Specify whether the short and long dimensions on your drawing are bond-center pitches (SWD / LWD) or clear openings (SWO / LWO).

LWD × SWD: Long × short way of the diamond pitch, measured between corresponding bond centers.
Strand width & thickness: Strand width is w; base metal thickness is t. Raised overall thickness T is a separate dimension.
SWO / LWO: The short and long dimensions of the clear opening between strands; these are smaller than the corresponding diamond pitches.
Open area & sheet size: Open area is the percentage occupied by openings. Sheet size is the overall width and length; specify diamond orientation separately.

All dimensions are in mm. LWD and SWD are the long and short diamond pitches, measured between corresponding bond centers. ≈ indicates an approximate value. Scroll horizontally to compare all fields.

Expanded metal specifications — dimensions in mm
Style / pattern	Profile	Base thickness t (mm)	Strand width w (mm)	LWD (mm)	SWD (mm)
1/2" #16 F	Flattened	1.22	2.49	32.00	12.70
3/16" .032 R	Raised	0.81	0.89	12.70	5.97
1/2" #20 R	Raised	0.91	1.83	30.48	12.70
1/2" #18 F	Flattened	1.04	2.11	32.00	12.19
1/4" #18 R	Raised	1.22	2.18	25.40	6.35
3/4" #16 F	Flattened	1.22	2.82	53.34	23.44
3/4" .081 Light F	Flattened	1.52	3.02	53.34	23.44
3/4" #13 F	Flattened	1.83	2.69	53.34	23.44
1-1/2" #13 F	Flattened	1.93	2.90	81.28	33.78
1/2" .081 R	Raised	2.03	2.21	30.48	12.70
3/4" .081 Light R	Raised	2.03	2.90	50.80	23.44
3/4" #13 R	Raised	2.29	2.44	50.80	23.44
3/4" #13 R (SS)	Raised	2.29	2.67	50.80	23.44
1-1/2" .125 F	Flattened	2.39	4.34	80.01	33.78
2" #9 R	Raised	3.40	3.78	101.60	46.89
3/4" #9 R	Raised	3.40	3.81	50.80	23.44
N6664F	Flattened	0.70	1.50	6.15	3.69
Pattern 1294	Raised	1.60	2.36	30.48	11.72
2490F	Flattened heavy mesh	3.50	6.00	46.99	15.49
2089A	Raised	3.00	3.12	50.80	22.58
Raute 50 × 22 × 4	Diamond mesh	2.00	4.00	50.00	22.00
Raute 45 × 20 × 5	Diamond mesh	1.00	5.00	45.00	20.00
Raute 200 × 55 × 6	Diamond mesh	3.00	6.00	200.00	55.00
Raute 62 × 23 × 3	Diamond mesh	1.00	3.00	62.00	23.00
Small mesh 6 × 3	Diamond mesh	≈ 0.50	≈ 0.80	6.00	3.00
Rhomboidal 20 × 10	Diamond mesh	1.00	2.00	20.00	10.00
Rhomboidal 30 × 17	Diamond mesh	1.50	2.50	30.00	17.00
Rhomboidal 43 × 13	Raised / flattened	1.50	2.50	43.00	13.00
1212 reference pattern	Raised / flattened	1.20	2.20	30.00	12.00
0910A reference pattern	Aluminum mesh	1.00	1.50	28.00	9.00

Market style numbers are pattern designations, not a complete thickness or load specification. For grating, verify material, strand geometry, support spacing and design loads.

Send a pattern or drawing for quotation

Product overview

What Is Aluminum Expanded Metal?

Aluminum expanded metal is produced by slitting and stretching aluminum sheet into a continuous diamond opening pattern. It provides low weight, corrosion resistance, ventilation, visibility, and a clean architectural appearance without welded joints.

YueChu Metal supplies custom aluminum expanded metal sheets for facades, ceilings, decorative screens, sunshades, infill panels, ventilation panels, lightweight enclosures, and industrial fabrication.

Lightweight structure for architectural and industrial projects.
Good corrosion resistance for indoor and outdoor applications.
Custom alloys, opening patterns, sheet sizes, and edge conditions.
Anodized, powder coated, PVDF coated, and mill finish options.

Applications of Aluminum Expanded Metal

Common applications include building facades, ceiling systems, decorative screens, sunshade panels, infill panels, ventilation panels, lightweight enclosures, and fabricated architectural components.

How to Choose the Right Alloy and Finish

Select the alloy according to forming, strength, and corrosion requirements. Anodized, powder coated, and PVDF coated finishes are often specified for visible or outdoor architectural projects.

Expanded Metal Manufacturing & Customization

A slit-and-stretched sheet, configured around your project.

Slitting and stretching turn solid sheet into connected mesh. Raised mesh retains angled strands; rolling creates a smoother, flattened profile. Cutting, forming and finishing follow your agreed specification.

Custom options to discuss

Material and grade
SWD / LWD and clear openings
Strand width and thickness
Raised or flattened profile
Sheet size and diamond direction
Coating, cutting and fabrication

See the real manufacturing process

Production equipment, workshop areas and incoming material stock.

Expanded metal production line with machines, aluminum rolls and packed materials — **Factory workshop**Equipment, rolls and packed materials in the workshop.

Expanded metal press line and steel sheet processing equipment — **Production equipment**Sheet processing and forming equipment.

YueChu Metal factory workshop with expanded metal production machines and finished rolls — **Workshop environment**Production equipment and finished stock.

Metal coils and sheet stock stored in the raw material area — **Raw material stock**Coils and sheet materials prepared for production.

Expanded metal forming machine feeding sheet through the production line — **Forming process**Sheet passes through the expanded metal machine.

Close view of expanded metal mesh leaving the production machine — **Production detail**Expanded metal mesh at the machine exit.

Discuss Your Custom Requirements View Factory & Production Photos

Quality Control & B2B Supply Support

Agree on material, dimensions, tolerances and inspection requirements before production.

Approved drawings or samples help keep repeat orders consistent. Include inspection records, material documents and packing or identification requirements in your inquiry.

Key inspection considerations

Base material and grade
Diamond pitch and clear openings
Strand width and metal thickness
Sheet dimensions and flatness
Surface finish and visible defects
Packaging and product identification

Dimension inspection for your specification

Measuring tools and dimensional checks for expanded metal products.

Digital caliper checking expanded metal strand thickness — **Thickness check**Digital caliper measurement of strand profile.

Digital caliper checking expanded metal mesh opening dimensions — **Dimension check**Mesh opening measurement.

Expanded metal mesh quality inspection with a measuring instrument — **Opening check**Inspection of the expanded opening.

Profile checkVisual and dimensional profile review.

Packing and loading support

Protected bundles, export packing and shipment preparation.

Stacked expanded metal sheets with protective plastic film prepared for packaging — **Sheet packaging**Protected expanded metal sheets.

Metal sheet bundles wrapped and secured for transport — **Wrapped bundles**Sheet bundles secured for handling.

Expanded metal bundles protected with wood frames and straps — **Wood-frame packing**Long bundles supported by frames.

Expanded metal bundles loaded inside a shipping container — **Container loading**Bundles arranged for ocean shipment.

Wooden cases and wrapped expanded metal rolls loaded in a container — **Loading detail**Cases and rolls secured in the container.

Wrapped expanded metal rolls loaded on a delivery truck — **Dispatch**Finished goods prepared for delivery.

Available Supply Forms

Sheets

Standard or custom sheet sizes.

Panels

Cut panels, with framing by agreement.

Coils

Roll supply for suitable mesh patterns.

Cut-to-Size Parts

Shapes and dimensions to your drawing.

Confirm dimensions, packing, MOQ and delivery requirements for your specification. View Inspection Photos ·View Packing & Shipment Photos

Buyer questions

Aluminum Expanded Metal FAQ

What aluminum alloys are available?

Common options include 1060, 3003, 5052, and 6061 aluminum. Other alloys can be reviewed according to strength, forming, corrosion resistance, and project requirements.

Can aluminum expanded metal be used outdoors?

Yes. Aluminum has good corrosion resistance and is widely used outdoors. Anodized, powder coated, or PVDF coated finishes can provide additional protection and the required architectural appearance.

What surface finishes are available?

Available finishes include mill finish, anodized, powder coated, and PVDF coated surfaces. Custom colors and project-specific finish requirements can be reviewed before production.

Is aluminum expanded metal suitable for architectural projects?

Yes. Its low weight, corrosion resistance, ventilation, and decorative appearance make it suitable for facades, ceilings, screens, sunshades, infill panels, and ventilation panels.

What information is needed for a quotation?

Please send the alloy, thickness, SWD, LWD, strand width, panel dimensions, finish or color, quantity, application, and destination port. Drawings or photos help us quote faster.

Drawings & specifications welcome

Request a Quote for Aluminum Expanded Metal

Tell us your alloy, opening pattern, sheet thickness, panel size, finish, color, quantity, and application. Our team will help confirm a suitable specification for your project or bulk order.

Before sending a sample or drawing, use the expanded metal measurement guide to distinguish diamond pitch, clear opening and metal thickness.

Request a Quote Email Drawings & Requirements

Material: Aluminum 1060, 3003, 5052, 6061, and custom grades on request
Opening Pattern: Diamond opening, raised type, or flattened type
Surface Treatment: Mill finish, anodized, powder coated, PVDF coated

Made to your specification · Request a quotation
