Copper Expanded Metal Mesh Manufacturer
Copper expanded metal combines a continuous one-piece mesh structure with the distinctive color, conductivity and natural aging behavior of copper. It is specified for visible architectural work, decorative screens and selected technical applications.
- Raised & flattened profiles
- Custom mesh & sheet dimensions
- Natural, polished, brushed & aged finishes
- Protective export packing
Custom product supply
Custom Copper Expanded Metal Sheets & Panels
Decorative, conductive and corrosion-resistant open metal for project supply
YueChu Metal supplies custom copper expanded metal mesh, sheets and fabricated panels for distributors, architects, contractors, metal fabricators and OEM buyers in the United States, Europe and Australia.
Send the copper grade, temper, raised or flattened profile, thickness, SWD, LWD, strand width, sheet size, finish, quantity and destination for a production review and export quotation.
We review alloy, temper, expansion direction, mesh geometry, surface condition, fabrication and packing together because soft copper surfaces require careful production and handling.
Expanded Metal Specifications & Dimensions
Compare reference patterns used in the USA, UK, Germany, France and Australia. Confirm material, finished dimensions and availability for your order.
For an accurate quotation, specify copper grade and temper, SWD, LWD, strand width, material thickness, profile, sheet dimensions and surface finish.
Pitch ≠ clear opening. Diagram labels: TL = short way, TB = long way, b = strand width, d = metal thickness, B = sheet width and L = sheet length. Specify whether the short and long dimensions on your drawing are bond-center pitches (SWD / LWD) or clear openings (SWO / LWO).
- LWD × SWD
- Long × short way of the diamond pitch, measured between corresponding bond centers.
- Strand width & thickness
- Strand width is w; base metal thickness is t. Raised overall thickness T is a separate dimension.
- SWO / LWO
- The short and long dimensions of the clear opening between strands; these are smaller than the corresponding diamond pitches.
- Open area & sheet size
- Open area is the percentage occupied by openings. Sheet size is the overall width and length; specify diamond orientation separately.
All dimensions are in mm. LWD and SWD are the long and short diamond pitches, measured between corresponding bond centers. ≈ indicates an approximate value. Scroll horizontally to compare all fields.
| Style / pattern | Profile | Base thickness t (mm) | Strand width w (mm) | LWD (mm) | SWD (mm) |
|---|---|---|---|---|---|
| 1/2" #16 F | Flattened | 1.22 | 2.49 | 32.00 | 12.70 |
| 3/16" .032 R | Raised | 0.81 | 0.89 | 12.70 | 5.97 |
| 1/2" #20 R | Raised | 0.91 | 1.83 | 30.48 | 12.70 |
| 1/2" #18 F | Flattened | 1.04 | 2.11 | 32.00 | 12.19 |
| 1/4" #18 R | Raised | 1.22 | 2.18 | 25.40 | 6.35 |
| 3/4" #16 F | Flattened | 1.22 | 2.82 | 53.34 | 23.44 |
| 3/4" .081 Light F | Flattened | 1.52 | 3.02 | 53.34 | 23.44 |
| 3/4" #13 F | Flattened | 1.83 | 2.69 | 53.34 | 23.44 |
| 1-1/2" #13 F | Flattened | 1.93 | 2.90 | 81.28 | 33.78 |
| 1/2" .081 R | Raised | 2.03 | 2.21 | 30.48 | 12.70 |
| 3/4" .081 Light R | Raised | 2.03 | 2.90 | 50.80 | 23.44 |
| 3/4" #13 R | Raised | 2.29 | 2.44 | 50.80 | 23.44 |
| 3/4" #13 R (SS) | Raised | 2.29 | 2.67 | 50.80 | 23.44 |
| 1-1/2" .125 F | Flattened | 2.39 | 4.34 | 80.01 | 33.78 |
| 2" #9 R | Raised | 3.40 | 3.78 | 101.60 | 46.89 |
| 3/4" #9 R | Raised | 3.40 | 3.81 | 50.80 | 23.44 |
| N6664F | Flattened | 0.70 | 1.50 | 6.15 | 3.69 |
| Pattern 1294 | Raised | 1.60 | 2.36 | 30.48 | 11.72 |
| 2490F | Flattened heavy mesh | 3.50 | 6.00 | 46.99 | 15.49 |
| 2089A | Raised | 3.00 | 3.12 | 50.80 | 22.58 |
| Raute 50 × 22 × 4 | Diamond mesh | 2.00 | 4.00 | 50.00 | 22.00 |
| Raute 45 × 20 × 5 | Diamond mesh | 1.00 | 5.00 | 45.00 | 20.00 |
| Raute 200 × 55 × 6 | Diamond mesh | 3.00 | 6.00 | 200.00 | 55.00 |
| Raute 62 × 23 × 3 | Diamond mesh | 1.00 | 3.00 | 62.00 | 23.00 |
| Small mesh 6 × 3 | Diamond mesh | ≈ 0.50 | ≈ 0.80 | 6.00 | 3.00 |
| Rhomboidal 20 × 10 | Diamond mesh | 1.00 | 2.00 | 20.00 | 10.00 |
| Rhomboidal 30 × 17 | Diamond mesh | 1.50 | 2.50 | 30.00 | 17.00 |
| Rhomboidal 43 × 13 | Raised / flattened | 1.50 | 2.50 | 43.00 | 13.00 |
| 1212 reference pattern | Raised / flattened | 1.20 | 2.20 | 30.00 | 12.00 |
| 0910A reference pattern | Aluminum mesh | 1.00 | 1.50 | 28.00 | 9.00 |
Market style numbers are pattern designations, not a complete thickness or load specification. For grating, verify material, strand geometry, support spacing and design loads.
Send a pattern or drawing for quotationProduct overview

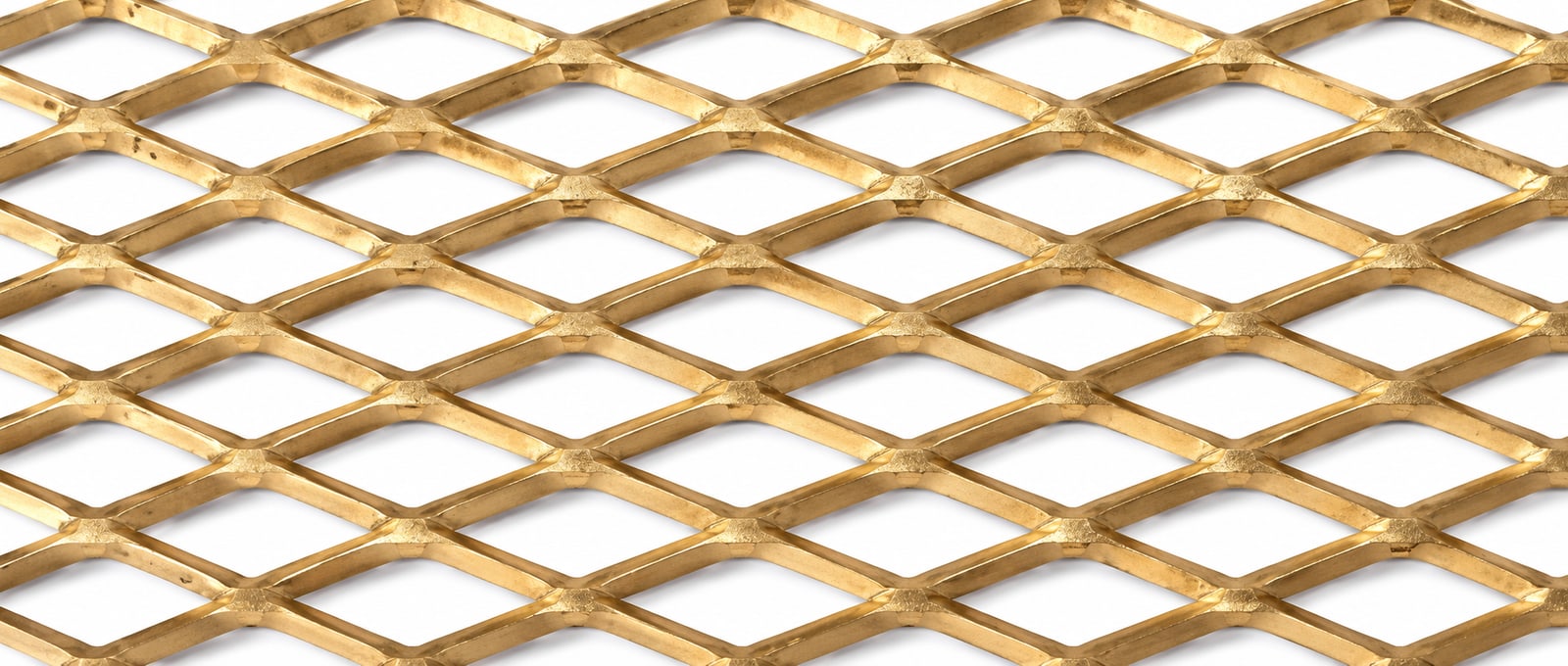

What Is Copper Expanded Metal?
Copper expanded metal is made by slitting and stretching copper sheet into a continuous diamond or other open pattern. It is also searched as copper expanded metal mesh, copper expanded metal sheet, expanded metal copper and copper expanded metal screen.
Unlike woven copper wire mesh, expanded copper retains connected strands and bonds from one sheet. The result provides open area, visual depth and material continuity without welded or woven intersections.
- Distinctive natural copper appearance for visible architectural applications.
- Continuous one-piece structure with no welded wire intersections.
- Useful electrical and thermal conductivity where the complete design is verified.
- Custom mesh openings, strand dimensions, thicknesses and sheet sizes.
Decorative Copper Expanded Metal
Copper mesh can be used for ceilings, wall panels, partitions, furniture, display fixtures, feature screens and architectural details where the warm metal color and natural aging process support the design concept.
Copper Expanded Metal Screens
Custom panels may be reviewed for ventilation, screening, equipment protection and selected shielding applications. Functional performance depends on opening size, thickness, conductivity, joints, grounding and installation.
Natural Copper Patina
Uncoated copper changes from bright copper to darker brown tones and may develop green patina over time. Exposure, humidity, salts, handling and cleaning all affect the final appearance.
Specification & ordering
Copper Appearance & Functional Requirements
Confirm the copper alloy and temper for the required appearance or technical function.
- Confirm whether natural oxidation and patina are acceptable.
- Define visible surfaces, edge condition and surface protection requirements.
- Provide performance criteria for shielding, conductivity or ventilation projects.
Expanded Metal Manufacturing & Customization
A slit-and-stretched sheet, configured around your project.

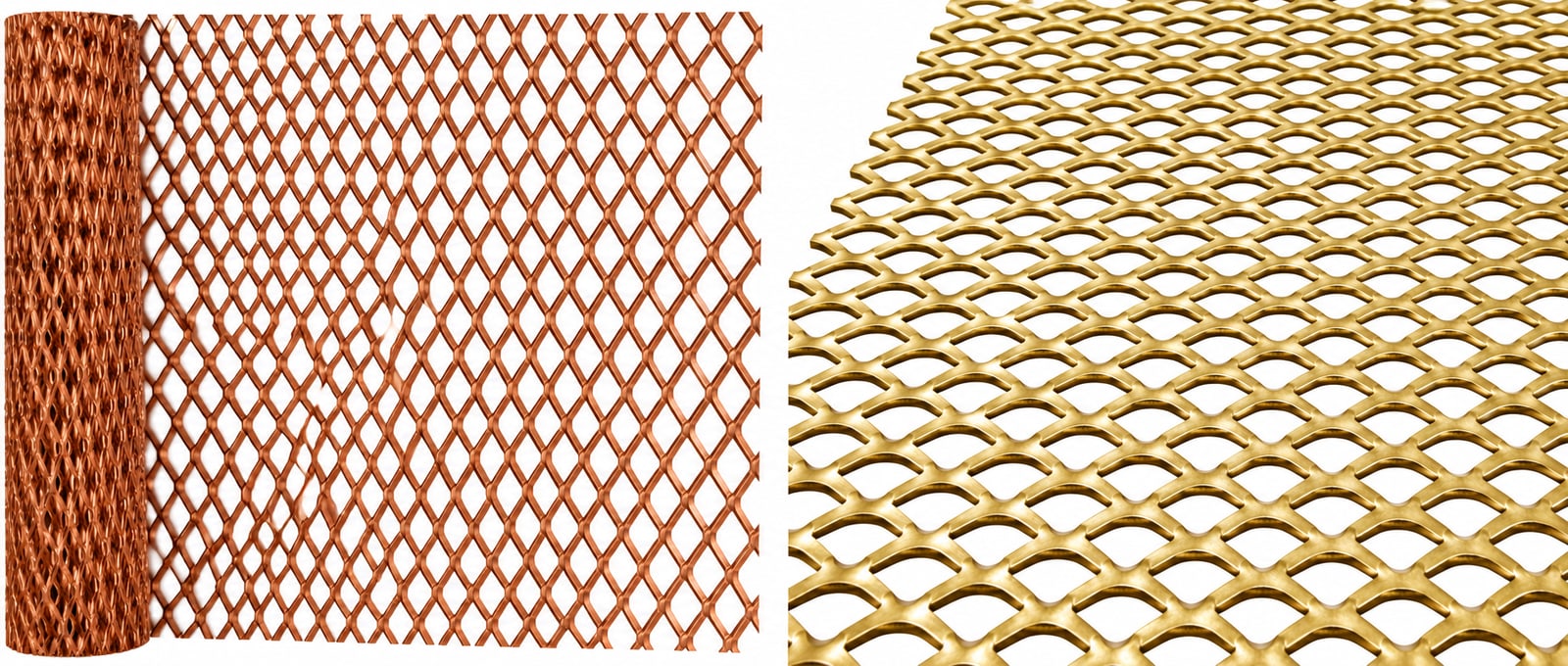

Slitting and stretching turn solid sheet into connected mesh. Raised mesh retains angled strands; rolling creates a smoother, flattened profile. Cutting, forming and finishing follow your agreed specification.
See the real manufacturing process
Production equipment, workshop areas and incoming material stock.
Quality Control & B2B Supply Support
Agree on material, dimensions, tolerances and inspection requirements before production.
Approved drawings or samples help keep repeat orders consistent. Include inspection records, material documents and packing or identification requirements in your inquiry.
Dimension inspection for your specification
Measuring tools and dimensional checks for expanded metal products.
Packing and loading support
Protected bundles, export packing and shipment preparation.
Available Supply Forms
Sheets
Standard or custom sheet sizes.
Panels
Cut panels, with framing by agreement.

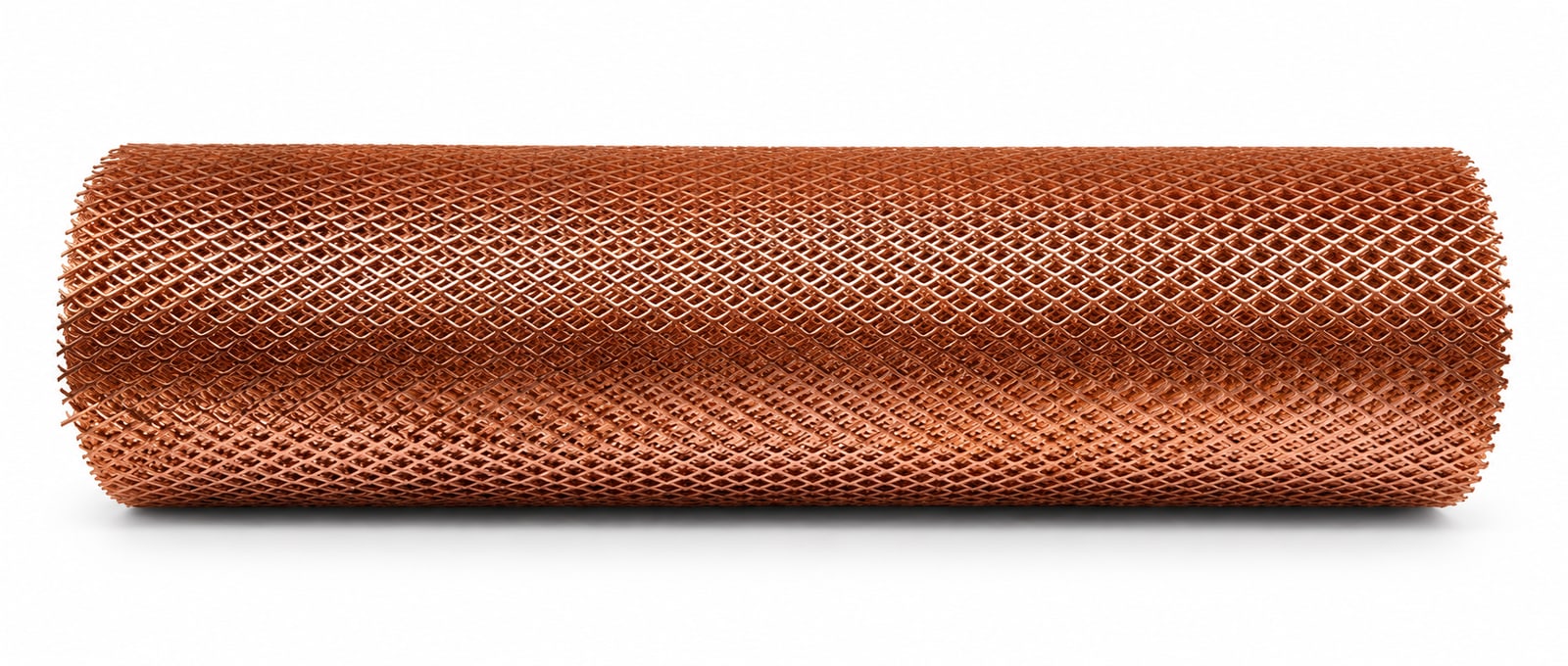

Coils
Roll supply for suitable mesh patterns.
Cut-to-Size Parts
Shapes and dimensions to your drawing.
Confirm dimensions, packing, MOQ and delivery requirements for your specification. View Inspection Photos ·View Packing & Shipment Photos
Buyer questions
Copper Expanded Metal FAQ
What is copper expanded metal?
It is copper sheet slit and stretched into a continuous open mesh. The strands and bonds remain part of one sheet without woven or welded wire intersections.
How is copper expanded metal different from woven copper mesh?
Expanded copper is formed from one sheet, while woven copper mesh is produced from interlaced wires. The products differ in opening geometry, surface profile, stiffness, fabrication and appearance.
Does copper expanded metal change color?
Yes. Uncoated copper naturally darkens and may develop brown or green patina according to exposure, handling and environment. Specify a controlled finish if color consistency is required.
Can copper expanded metal be supplied flattened?
Raised and flattened profiles can be reviewed according to copper grade, temper, thickness, opening pattern, dimensions and order quantity.
Can copper expanded metal be used for EMI or RF shielding?
Copper conductivity may support shielding applications, but performance depends on the mesh opening, thickness, joints, grounding and complete enclosure design. Required test standards must be provided.
What information is needed for pricing?
Send the copper grade, temper, profile, thickness, SWD, LWD, strand width, sheet dimensions, finish, quantity, application and destination port.
How do you protect copper expanded metal during export?
Surface separation, protective wrapping, waterproof material, corner protection, pallets and wooden cases can be used to reduce scratches, deformation and moisture exposure.
Drawings & specifications welcome
Request a Quote for Copper Expanded Metal Mesh
Tell us the copper grade, temper, mesh geometry, sheet size, surface finish, fabrication, quantity and destination. We will review production feasibility and export packing.
Before sending a sample or drawing, use the expanded metal measurement guide to distinguish diamond pitch, clear opening and metal thickness.
- Material
- Copper grade, composition and temper according to drawing or project requirement
- Profile
- Raised copper expanded metal or flattened copper expanded metal
- Opening Pattern
- Diamond or project-specific expanded opening subject to material and tooling review
- Surface Options
- Natural copper, polished, brushed, oxidized, aged, patinated or protective clear finish subject to confirmation
Made to your specification · Request a quotation
