SS316 · T316 · 316L · Custom factory supply
316 Stainless Steel Wire Mesh Manufacturer & Supplier
YueChu manufactures 316 stainless steel wire mesh for chemical processing, marine exposure, filtration, screening and OEM fabrication. Specify SS316, T316 or 316L with woven or welded construction, mesh count or opening, wire diameter, dimensions and quantity. We review each 316 stainless wire mesh inquiry against the service environment and required material documentation.
- SS316 & 316L OptionsMolybdenum-bearing grades for chloride exposure and demanding process environments.
- Woven, Welded & Filter MeshChoose controlled woven openings, dense filter weaves or a rigid welded grid.
- Screens, Rolls & Cut PartsOrder full rolls, slit rolls, sheets, screens, filter discs and fabricated components.
- China Factory & Wholesale SupplyProduction, inspection, identification and export packing follow the purchase specification.
Fast technical selection
316 Stainless Steel Wire Mesh Specifications
Use these SS316 square-woven combinations as a starting reference for 316 stainless steel wire mesh selection. The table includes coarse screen mesh, 35 mesh T316, 120 mesh and fine 200 mesh references; it is not a stock list. Confirm grade, weave, wire diameter, nominal opening, roll or sheet dimensions, tolerances and quantity for each inquiry.
| Mesh count | Wire dia. | Opening | Material | Typical construction | |
|---|---|---|---|---|---|
| 4 × 4 Mesh | 1.194 mm | 5.156 mm | SS316 / T316 | Plain weave / crimped | |
| 6 × 6 Mesh | 0.889 mm | 3.344 mm | SS316 / T316 | Plain weave / crimped | |
| 8 × 8 Mesh | 0.711 mm | 2.464 mm | SS316 / T316 | Plain weave | |
| 10 × 10 Mesh | 0.635 mm | 1.905 mm | SS316 / T316 | Plain weave | |
| 20 × 20 Mesh | 0.406 mm | 0.864 mm | SS316 / T316 | Plain weave | |
| 30 × 30 Mesh | 0.305 mm | 0.542 mm | SS316 / T316 | Plain weave | |
| 35 × 35 Mesh | 0.279 mm | 0.447 mm | SS316 / T316 | Plain weave | |
| 40 × 40 Mesh | 0.254 mm | 0.381 mm | SS316 / T316 | Plain weave | |
| 50 × 50 Mesh | 0.229 mm | 0.279 mm | SS316 / T316 | Plain weave | |
| 60 × 60 Mesh | 0.191 mm | 0.232 mm | SS316 / T316 | Plain weave | |
| 80 × 80 Mesh | 0.140 mm | 0.178 mm | SS316 / T316 | Plain weave | |
| 100 × 100 Mesh | 0.114 mm | 0.140 mm | SS316 / T316 | Plain weave | |
| 120 × 120 Mesh | 0.094 mm | 0.118 mm | SS316 / T316 | Plain weave | |
| 150 × 150 Mesh | 0.066 mm | 0.103 mm | SS316 / T316 | Plain weave | |
| 200 × 200 Mesh | 0.053 mm | 0.074 mm | SS316 / T316 | Plain weave |
Nominal opening: calculated for square mesh as 25.4 ÷ mesh count − wire diameter. Actual dimensions and tolerances must be confirmed for each order.
Dutch weave uses different warp and weft constructions and is quoted separately.
Specify Mesh Count by Weave Construction
For equal-count square mesh, the two directions have matching counts, such as 20 × 20 mesh. Dutch and reverse Dutch filter cloth need separate warp and weft counts and wire diameters. A single mesh number does not define their construction or filtration rating.
- Square-weave references
- Selected 4 × 4 to 200 × 200 mesh references; specify warp and weft counts per inch and wire diameters. Custom combinations require confirmation. Compare square-weave sizes and photos →
- Dutch weave specification
- Specify warp × weft counts per inch and each wire diameter, such as the published 20 × 150 plain Dutch or 20 × 250 twill Dutch references. Filtration ratings require product-specific test data; availability is confirmed separately. Review Dutch weave reference combinations →
- Reverse Dutch weave specification
- Specify warp × weft counts per inch and each wire diameter, such as the published 66 × 18 reverse plain Dutch reference. Confirm the complete construction, filtration test requirements and roll or belt dimensions for an order. Review reverse Dutch weave reference combinations →
Square-weave reference
316 Stainless Steel Woven Wire Mesh Size Chart
The image shows selected 4 to 200 mesh references. Compare wire mesh sizes and SS316 photo labels before confirming the SS316 or 316L grade, wire diameter, opening, weave, dimensions and material evidence. References are not production limits.
Product range
How to Specify 316 Stainless Steel Wire Mesh
A comparable RFQ defines the grade, construction, mesh geometry, finished form, service conditions and commercial requirements together.Confirm SS316, T316 or 316L
SS316 and T316 commonly identify Type 316. Specify 316L separately when a low-carbon grade, welded fabrication or supporting material documentation is required.
Choose Woven, Filter or Welded Mesh
Use 316 stainless steel woven wire mesh for screening, square openings and general filtration, dense Dutch weave for fine filter media, or welded mesh for a fixed rigid grid.
Define Mesh Count, Opening and Wire
Provide mesh count and wire diameter together, or state the required clear opening or filtration target. Mesh count alone does not fully define a 316 stainless steel wire mesh screen.
Add Finished Form and Commercial Details
State roll width and length, sheet or screen size, edge condition, quantity, destination, packing, documentation and delivery target for comparable factory pricing.
Technical foundation
What Is 316 Stainless Steel Wire Mesh?
316 stainless steel wire mesh is made from molybdenum-bearing Type 316 stainless steel wire. It is selected for woven screens, filter media, welded grids and fabricated parts that need stronger resistance to chlorides and many chemical process environments than general-purpose 304 mesh.
In woven mesh, warp and weft wires form square openings or dense filtration structures. In 316 stainless steel welded wire mesh, intersecting wires are resistance-welded into a fixed grid. Buyers may use the names SS316, T316, stainless steel 316 wire mesh or wire mesh stainless steel 316; the purchase order should identify one governing grade and material standard.
316L stainless steel wire mesh uses the low-carbon variant and is often specified for welded filter elements or fabricated assemblies. Handheld XRF can identify chromium, nickel and molybdenum, but it cannot verify the low-carbon suffix, so 316L requires suitable documentation or carbon-capable testing when grade confirmation is critical.
Material selection
SS316, T316 and 316L Material Options
SS316 / Type 316 / T316
Common purchasing names for molybdenum-bearing Type 316. State the standard, required certificate and inspection scope so the order is evaluated against one clear material requirement.
SS316L / Type 316L
The low-carbon 316 variant, often selected for welded or fabricated filter components. Confirm the product-form standard and evidence needed to verify the L grade.
Explore SS316L / Type 316L →316 vs 304 Stainless Steel Mesh
316 adds molybdenum and is generally preferred for chloride or more demanding chemical exposure. Final selection depends on the actual medium, concentration, temperature, cleaning cycle and target service life.
Explore 316 vs 304 Stainless Steel Mesh →Construction selection
316 Stainless Steel Wire Mesh Weave Types
Plain Weave
Each wire passes alternately over and under the next wire, producing stable square openings for broad industrial use.
Explore Plain Weave →
Twill Weave
Wires pass over and under two adjacent wires, allowing comparatively heavier wire at finer mesh counts.
Explore Twill Weave →
Dutch Weave
Different warp and weft wire arrangements create a dense filtration structure with high mechanical stability.
Explore Dutch Weave →
Reverse Dutch Weave
A reversed wire arrangement combines high flow capacity with fine particle retention for continuous filtration.
Explore Reverse Dutch Weave →
Twilled Dutch Weave
A tightly packed twill structure provides very fine particle retention with a smooth, mechanically stable surface.
Explore Twilled Dutch Weave →
Crimped Wire Mesh
Pre-crimped wires lock together at each intersection to provide rigid, dimensionally stable openings for screening and separation.
Explore Crimped Wire Mesh →Industrial use
Applications
Chemical & process filtration
Filter screens and support layers where material compatibility, aperture control and cleaning conditions are defined.
Marine & chloride exposure
Screens, guards and components evaluated for salt spray, splash zones and chloride-bearing service.
Fine filter mesh
SS316 woven filter wire mesh, Dutch weave media and filter discs for liquid, gas and polymer processing.
Food & pharmaceutical equipment
Sieves, screens and fabricated parts reviewed against project-specific finish, cleaning and documentation requirements.
Welded screens & guards
316 stainless steel welded wire mesh for guards, enclosures, baskets and rigid fabricated panels.
OEM fabrication
Cut discs, cylinders, baskets, framed screens and drawing-based 316 or 316L mesh components.
Material verification & standards
316 / 316L Material Grade Verification
Reliable materialsfor a safer tomorrow
Sample Evidence
SS316 sample

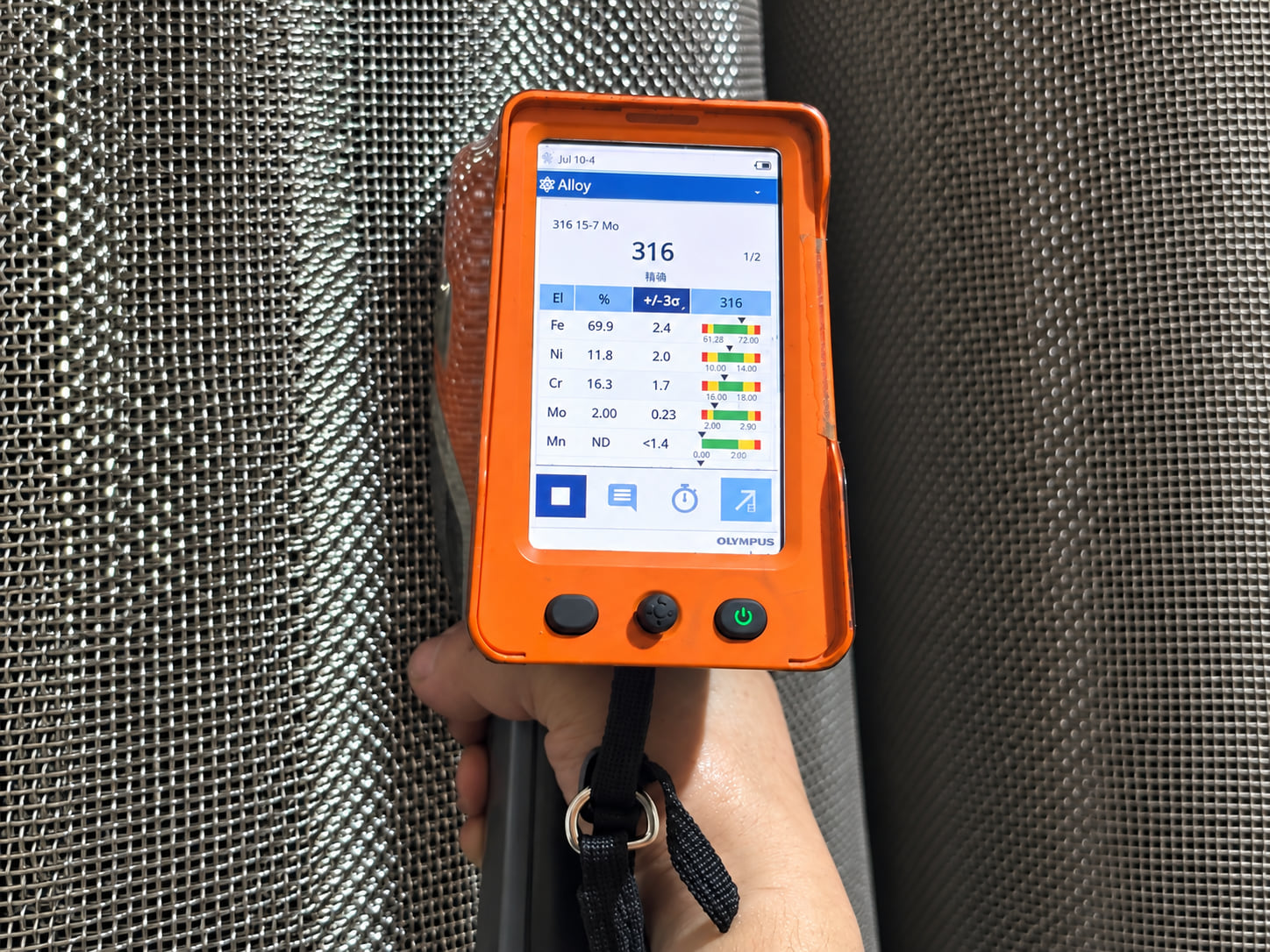

Handheld XRFHandheld XRF alloy identification
The analyzer screen identifies the inspected stainless steel woven wire mesh sample as SS316.
- Chromium (Cr)
- 16.3%
- Nickel (Ni)
- 11.8%
- Molybdenum (Mo)
- 2.00%
This is a sample reading for reference only. Handheld XRF does not verify carbon.
International Grade Reference
Mass Fraction (%)316 and 316L chemistry by market standard
Key alloy limits shown as mass %. The paired carbon limits identify 316 first and 316L second; equivalent grade names vary by standards system.
| Market | Grade / Standard | C (Max) | Cr | Ni | Mo | Reference |
|---|---|---|---|---|---|---|
| US | Type 316 / 316L · UNS S31600 / S31603 | ≤0.08 / ≤0.03% | 16.0–18.0% | 10.0–14.0% | 2.0–3.0% | ASTM A580/A580M-23 |
| EU | 1.4401 / 1.4404 · X5CrNiMo17-12-2 / X2CrNiMo17-12-2 | ≤0.07 / ≤0.03% | 16.5–18.5% | 10.0–13.0% | 2.0–2.5% | EN 10088-3:2023 |
| JP | SUS316 / SUS316L | ≤0.08 / ≤0.03% | 16.0–18.0% | 10.0–14.0% | 2.0–3.0% | JIS G 4309:2013 |
| CN | 06Cr17Ni12Mo2 / 022Cr17Ni12Mo2 | ≤0.08 / ≤0.03% | 16.0–18.0% | 10.0–14.0% | 2.0–3.0% | GB/T 4240-2019 |
Visible Cr, Ni and Mo readings are within the listed Type 316 ranges.This supports alloy identification, but does not by itself certify full compliance.
Confirm the required edition and product-form standard for wire, woven mesh or welded mesh before production.

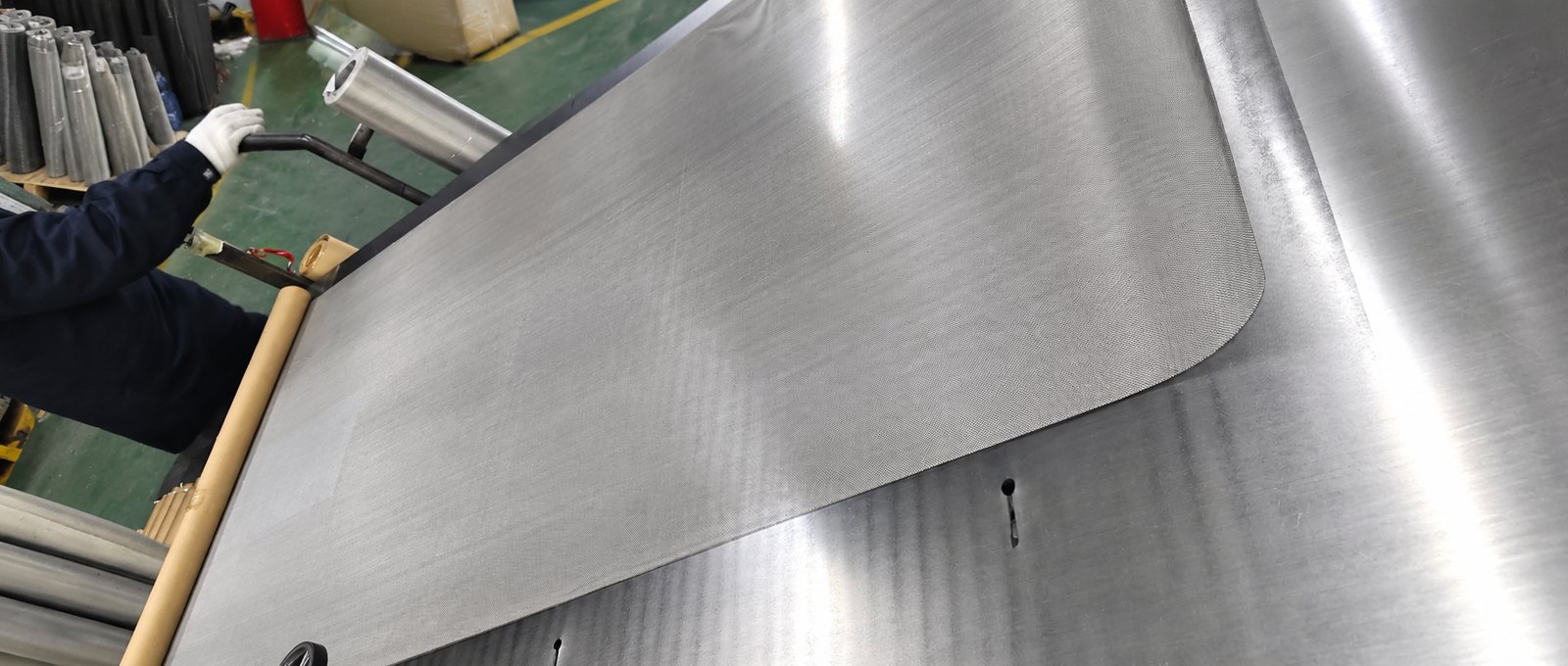

Production workflow
Manufacturing & Quality Control
Confirm 316 or 316L wire
Review the grade, product-form standard, wire diameter, service conditions and required material evidence before production.
Weave, weld or form the mesh
Set the selected square weave, filter weave or welded grid to the required opening and finished width.
Inspect the mesh geometry
Check mesh count or pitch, wire diameter, opening, surface and finished dimensions before cutting or fabrication.
Identify and pack the order
Label finished goods by grade and specification, then protect rolls, screens or fabricated parts for export handling.
Inspection checkpoints
- Material identification and certificate review
- Chromium, nickel and molybdenum XRF screening when specified
- Mesh count, pitch or aperture inspection
- Wire diameter and finished-size measurement
- Surface, edge and construction review
- Packing and specification-label verification
OEM flexibility
Custom Manufacturing
As a China 316 stainless steel wire mesh manufacturer and wholesale supplier, YueChu reviews custom production against the full technical and commercial requirement. Send the target grade, mesh specification, sample or drawing for feasibility and price review.
- Custom mesh count and wire diameter combinations
- SS316 and 316L square, twill and Dutch weaves
- 316 stainless steel welded wire mesh rolls and panels
- Custom roll width, length, slit rolls and cut sheets
- Filter discs, tubes, baskets and framed screens
- Private labels, certificates and export packing

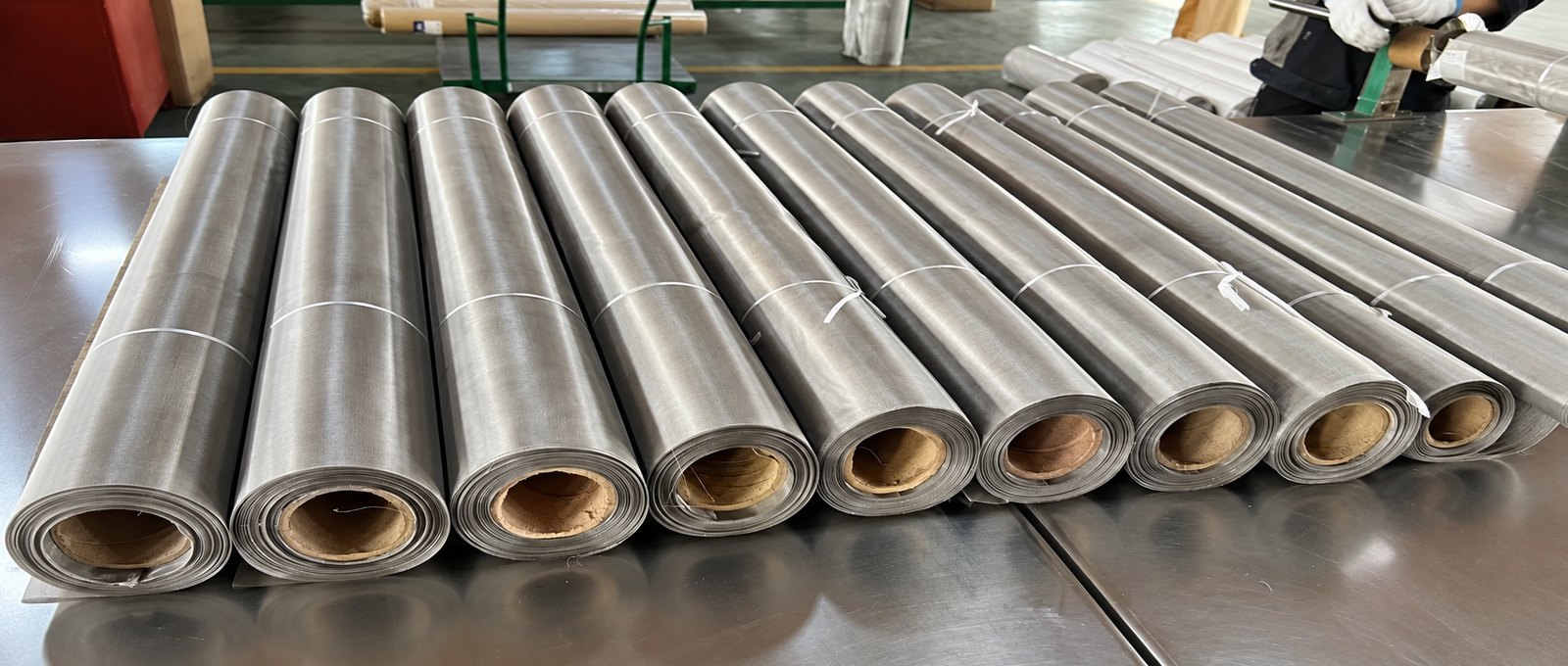

Export preparation
Packing & Export
Packing is selected according to mesh fineness, roll dimensions, welded or woven construction, fabricated form and transport method. Fine 316L filter mesh requires suitable support and protection against edge damage, moisture and crushing.
- Moisture-resistant inner wrapping
- Protective tubes, cores or rigid supports
- Crates or reinforced export cases
- Grade and specification labels
- Custom pallet and handling instructions
Procurement checklist
How to Request an Accurate Quote
- 1
Name the material requirement
Specify SS316, T316 or 316L, the governing standard and the certificate or test evidence required.
- 2
Define the mesh construction
State square woven, Dutch weave, welded or crimped construction and identify any filter or rigidity requirement.
- 3
Define the opening and wire
Provide mesh count and wire diameter, clear opening, or a target particle-retention requirement with process details.
- 4
Add dimensions and commercial details
Confirm roll, sheet, screen or part dimensions, quantity, destination, packing, delivery target and inspection requirements.
Buyer questions
316 Stainless Steel Wire Mesh FAQ
What is 316 stainless steel wire mesh?
316 stainless steel wire mesh is woven, welded or formed from Type 316 stainless steel wire containing molybdenum. It is commonly selected for filtration, screening and fabricated parts exposed to chlorides or more demanding chemical service.
What is the difference between 316 and 316L stainless steel wire mesh?
316L has a lower maximum carbon content and is often specified for welded or fabricated components. Handheld XRF can identify the main alloying elements but cannot confirm the low-carbon suffix, so 316L should be supported by suitable material documents or carbon-capable testing when required.
When should I choose 316 instead of 304 stainless steel wire mesh?
316 contains molybdenum and is generally preferred when chloride exposure or a more demanding chemical environment needs improved corrosion resistance. Confirm the actual medium, concentration, temperature, cleaning cycle and expected service life before selecting the grade.
Do you manufacture 316 stainless steel woven wire mesh and filter mesh?
Yes. SS316 and 316L can be reviewed for square woven mesh, twill weave and Dutch weave filter media. Provide the mesh count or filtration target, wire diameter, weave, width, length, quantity and tolerances.
Can you supply 316 stainless steel welded wire mesh?
Yes. 316 stainless steel welded wire mesh can be supplied in rolls, cut sheets, rigid panels and fabricated parts. State the clear opening or pitch, wire diameter, dimensions, edge condition, quantity and required grade documentation.
Can you make a custom 316 stainless steel wire mesh screen?
Custom screens can be reviewed from a drawing or complete specification. Include the grade, mesh construction, opening, wire diameter, overall dimensions, frame or edge details, quantity and operating conditions.
How is 316 stainless steel wire mesh price calculated?
Price depends on the 316 or 316L grade, wire diameter, mesh count or opening, weave or welded construction, width and length, fabrication, quantity, certificate requirements, packing and destination. Send a complete specification for a comparable factory quote.
What information does a 316 stainless steel wire mesh supplier need for a quote?
Provide the material designation, woven or welded construction, mesh count or opening, wire diameter, dimensions, supply form, quantity, destination, documentation, packing and delivery target. Add a drawing for framed screens, filter discs or OEM parts.
- Materials
- SS316 / T316; SS316L on request
- Constructions
- Woven, welded, Dutch weave and crimped mesh
- Square-weave references
- Selected 4 × 4 to 200 × 200 mesh combinations
- Supply form
- Rolls, sheets, screens, discs and custom fabricated parts
Made to your specification · Request a quotation
Technical DataProduct parameters & construction details
- Product code
- YC-SS316-MESH-001
- Materials
- SS316 / T316; SS316L on request
- Constructions
- Woven, welded, Dutch weave and crimped mesh
- Square-weave references
- Selected 4 × 4 to 200 × 200 mesh combinations
- Dutch / reverse Dutch
- Separate warp × weft counts and wire diameters
- Key alloy feature
- Molybdenum-bearing 316 stainless steel
- Supply form
- Rolls, sheets, screens, discs and custom fabricated parts
