Custom Flattened Expanded Metal Supply
Smooth-surface expanded metal for guards, shelves, panels, and fabrication
YueChu Metal manufactures custom flattened expanded metal sheets with smooth, level surfaces for machine guards, shelves, screens, infill panels, partitions, decorative panels, and fabricated components.
Choose the material, opening size, strand width, thickness, panel dimensions, and finish for your industrial, architectural, or OEM application.
Expanded Metal Specifications & Dimensions
Compare reference patterns used in the USA, UK, Germany, France and Australia. Confirm material, finished dimensions and availability for your order.
For accurate quotation and production, expanded metal mesh should be measured by SWD (Short Way of Diamond), LWD (Long Way of Diamond), strand width, sheet thickness, sheet width, and sheet length. These expanded metal mesh specifications directly affect opening size, weight, strength, ventilation rate, and application performance.
Pitch ≠ clear opening. Diagram labels: TL = short way, TB = long way, b = strand width, d = metal thickness, B = sheet width and L = sheet length. Specify whether the short and long dimensions on your drawing are bond-center pitches (SWD / LWD) or clear openings (SWO / LWO).
- LWD × SWD
- Long × short way of the diamond pitch, measured between corresponding bond centers.
- Strand width & thickness
- Strand width is w; base metal thickness is t. Raised overall thickness T is a separate dimension.
- SWO / LWO
- The short and long dimensions of the clear opening between strands; these are smaller than the corresponding diamond pitches.
- Open area & sheet size
- Open area is the percentage occupied by openings. Sheet size is the overall width and length; specify diamond orientation separately.
All dimensions are in mm. LWD and SWD are the long and short diamond pitches, measured between corresponding bond centers. ≈ indicates an approximate value. Scroll horizontally to compare all fields.
| Style / pattern | Profile | Base thickness t (mm) | Strand width w (mm) | LWD (mm) | SWD (mm) |
|---|---|---|---|---|---|
| 1/2" #16 F | Flattened | 1.22 | 2.49 | 32.00 | 12.70 |
| 3/16" .032 R | Raised | 0.81 | 0.89 | 12.70 | 5.97 |
| 1/2" #20 R | Raised | 0.91 | 1.83 | 30.48 | 12.70 |
| 1/2" #18 F | Flattened | 1.04 | 2.11 | 32.00 | 12.19 |
| 1/4" #18 R | Raised | 1.22 | 2.18 | 25.40 | 6.35 |
| 3/4" #16 F | Flattened | 1.22 | 2.82 | 53.34 | 23.44 |
| 3/4" .081 Light F | Flattened | 1.52 | 3.02 | 53.34 | 23.44 |
| 3/4" #13 F | Flattened | 1.83 | 2.69 | 53.34 | 23.44 |
| 1-1/2" #13 F | Flattened | 1.93 | 2.90 | 81.28 | 33.78 |
| 1/2" .081 R | Raised | 2.03 | 2.21 | 30.48 | 12.70 |
| 3/4" .081 Light R | Raised | 2.03 | 2.90 | 50.80 | 23.44 |
| 3/4" #13 R | Raised | 2.29 | 2.44 | 50.80 | 23.44 |
| 3/4" #13 R (SS) | Raised | 2.29 | 2.67 | 50.80 | 23.44 |
| 1-1/2" .125 F | Flattened | 2.39 | 4.34 | 80.01 | 33.78 |
| 2" #9 R | Raised | 3.40 | 3.78 | 101.60 | 46.89 |
| 3/4" #9 R | Raised | 3.40 | 3.81 | 50.80 | 23.44 |
| N6664F | Flattened | 0.70 | 1.50 | 6.15 | 3.69 |
| Pattern 1294 | Raised | 1.60 | 2.36 | 30.48 | 11.72 |
| 2490F | Flattened heavy mesh | 3.50 | 6.00 | 46.99 | 15.49 |
| 2089A | Raised | 3.00 | 3.12 | 50.80 | 22.58 |
| Raute 50 × 22 × 4 | Diamond mesh | 2.00 | 4.00 | 50.00 | 22.00 |
| Raute 45 × 20 × 5 | Diamond mesh | 1.00 | 5.00 | 45.00 | 20.00 |
| Raute 200 × 55 × 6 | Diamond mesh | 3.00 | 6.00 | 200.00 | 55.00 |
| Raute 62 × 23 × 3 | Diamond mesh | 1.00 | 3.00 | 62.00 | 23.00 |
| Small mesh 6 × 3 | Diamond mesh | ≈ 0.50 | ≈ 0.80 | 6.00 | 3.00 |
| Rhomboidal 20 × 10 | Diamond mesh | 1.00 | 2.00 | 20.00 | 10.00 |
| Rhomboidal 30 × 17 | Diamond mesh | 1.50 | 2.50 | 30.00 | 17.00 |
| Rhomboidal 43 × 13 | Raised / flattened | 1.50 | 2.50 | 43.00 | 13.00 |
| 1212 reference pattern | Raised / flattened | 1.20 | 2.20 | 30.00 | 12.00 |
| 0910A reference pattern | Aluminum mesh | 1.00 | 1.50 | 28.00 | 9.00 |
Market style numbers are pattern designations, not a complete thickness or load specification. For grating, verify material, strand geometry, support spacing and design loads.
Send a pattern or drawing for quotationProduct overview

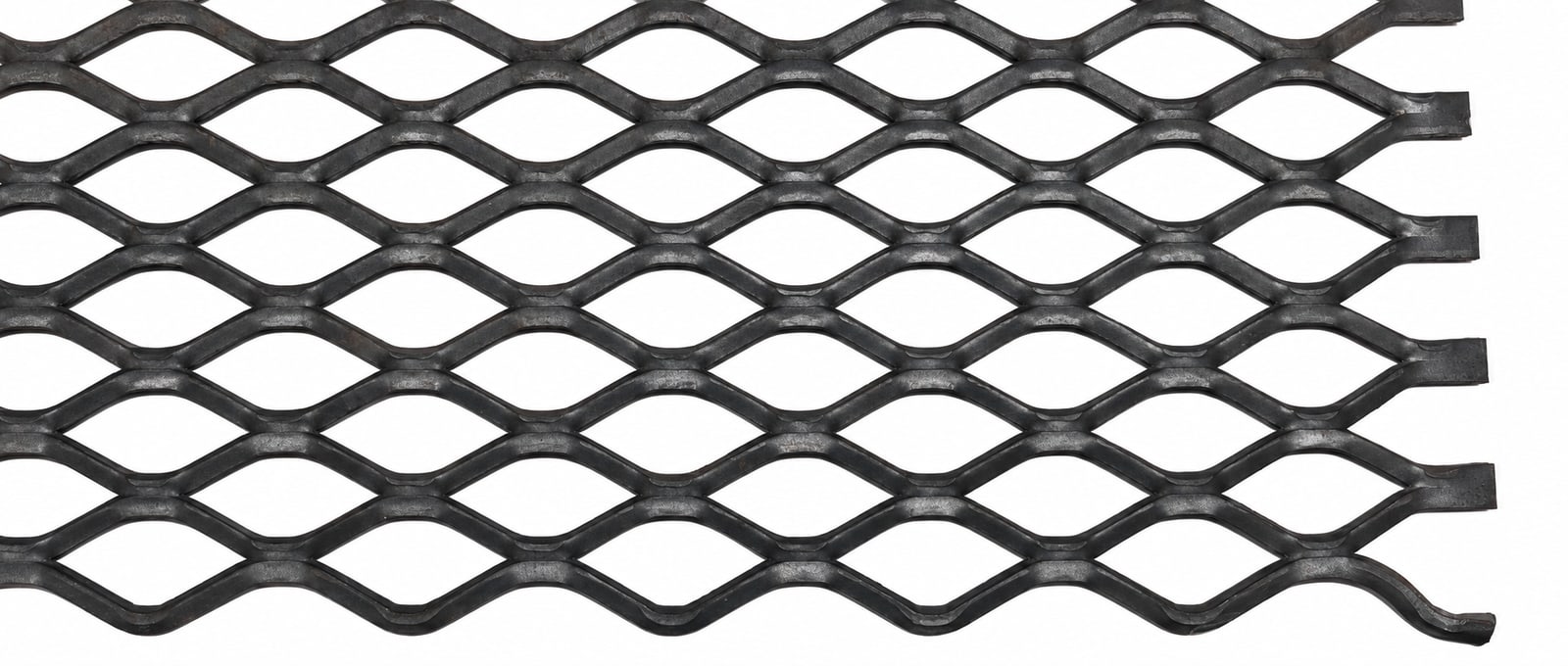

What Is Flattened Expanded Metal?
Flattened expanded metal is raised expanded metal that has been cold rolled to create a smoother, flatter, and more level surface. The rolling process reduces the overall thickness while retaining the continuous one-piece mesh structure.
It is often selected where easier fabrication, improved appearance, a smoother contact surface, or more consistent panel thickness is required for guards, shelves, screens, panels, and fabricated components.
- Smoother surface for handling and secondary fabrication.
- More uniform thickness and flatter appearance than raised mesh.
- Available in multiple metals, opening patterns, and finishes.
- Suitable for guards, shelves, screens, panels, and partitions.

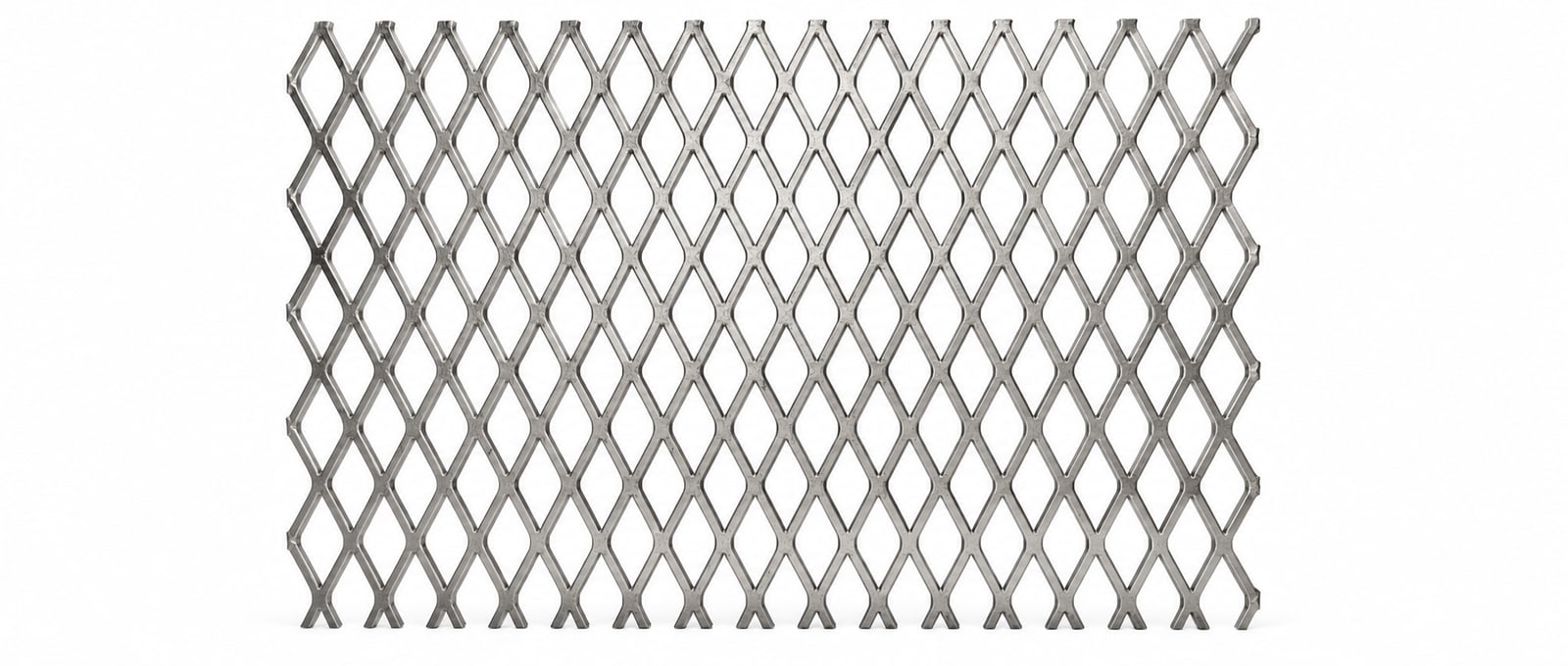

Benefits of Flattened Expanded Metal
Flattened expanded metal offers a smoother surface, easier cutting and forming, improved appearance, uniform panel thickness, and practical installation for guards, shelves, screens, fabricated parts, and visible panel work.

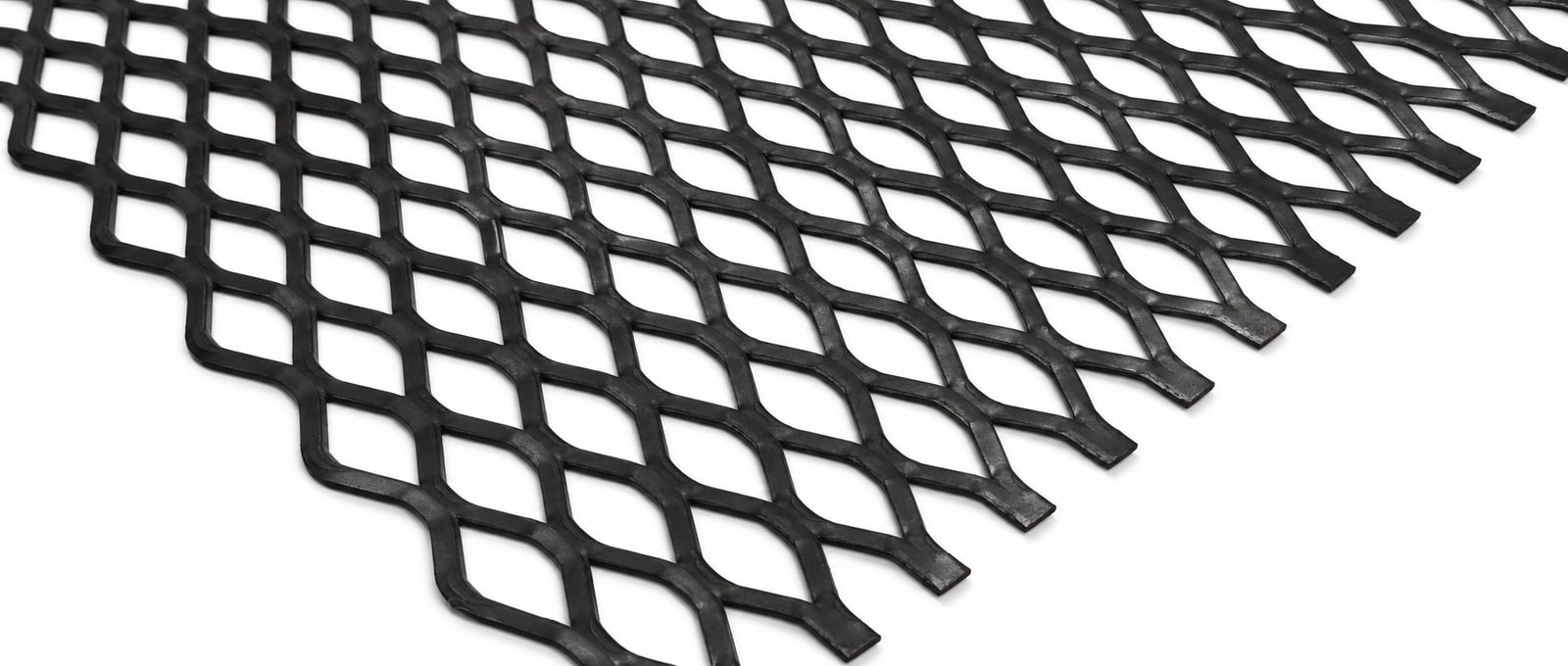

Applications of Flattened Expanded Metal
Common applications include flattened expanded metal for machine guards, flattened expanded metal panels for shelves and partition infill, smooth surface expanded metal for decorative screens, and fabricated sheets for filters, ceiling details, and architectural cladding projects.

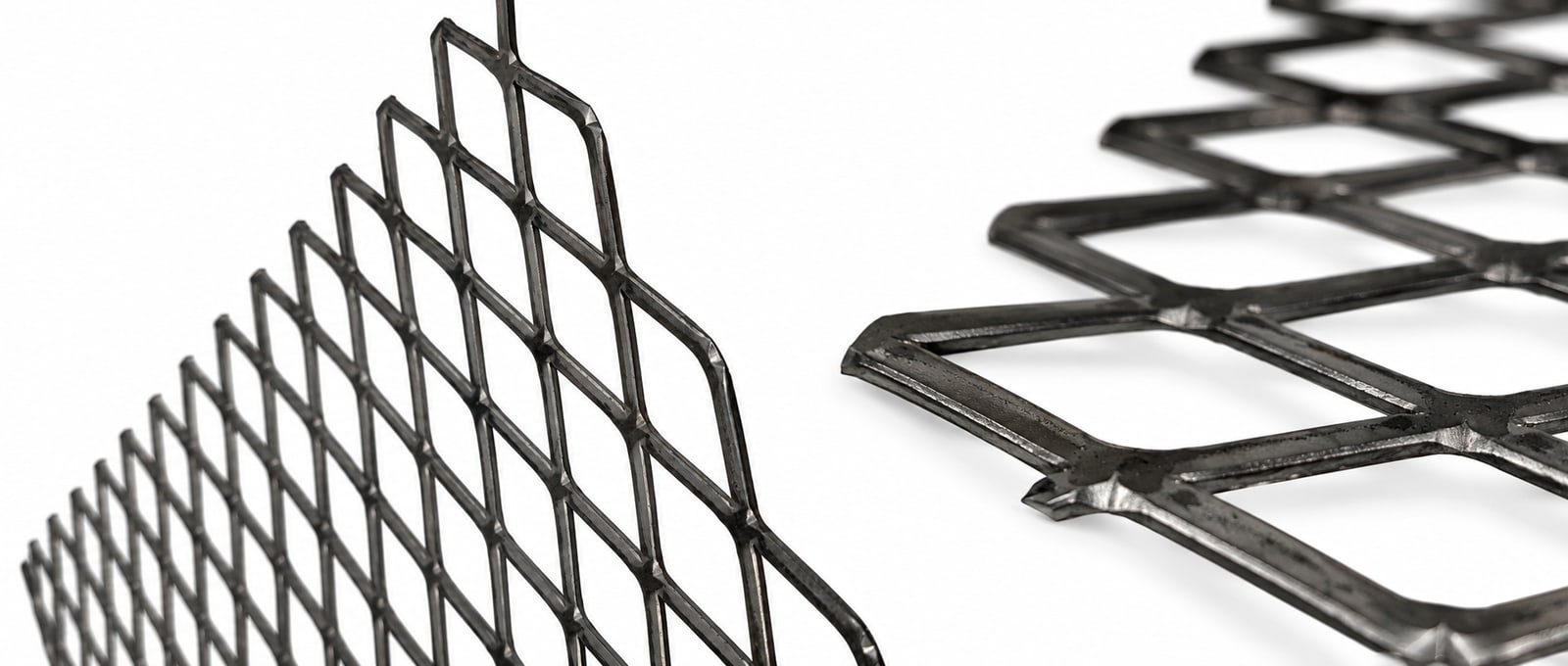

Flattened vs. Raised Expanded Metal
Raised expanded metal keeps a three-dimensional profile for rigidity and traction, while flattened expanded metal is cold rolled to create a smoother surface and lower profile. Buyers usually choose flattened expanded metal sheet products when fabrication, handling, finishing quality, or visible panel appearance matters more than added traction.
Expanded Metal Manufacturing & Customization
A slit-and-stretched sheet, configured around your project.
Slitting and stretching turn solid sheet into connected mesh. Raised mesh retains angled strands; rolling creates a smoother, flattened profile. Cutting, forming and finishing follow your agreed specification.
See the real manufacturing process
Production equipment, workshop areas and incoming material stock.
Quality Control & B2B Supply Support
Agree on material, dimensions, tolerances and inspection requirements before production.
Approved drawings or samples help keep repeat orders consistent. Include inspection records, material documents and packing or identification requirements in your inquiry.
Dimension inspection for your specification
Measuring tools and dimensional checks for expanded metal products.
Packing and loading support
Protected bundles, export packing and shipment preparation.
Available Supply Forms
Sheets
Standard or custom sheet sizes.
Panels
Cut panels, with framing by agreement.
Coils
Roll supply for suitable mesh patterns.
Cut-to-Size Parts
Shapes and dimensions to your drawing.
Confirm dimensions, packing, MOQ and delivery requirements for your specification. View Inspection Photos ·View Packing & Shipment Photos
Buyer questions
Flattened Expanded Metal FAQ
What is flattened expanded metal?
Flattened expanded metal is raised expanded metal that has been cold rolled to create a smoother, flatter surface and more uniform panel thickness while retaining a continuous one-piece mesh structure.
What are the advantages of flattened expanded metal?
Its advantages include a smoother surface, easier fabrication, improved appearance, consistent panel thickness, and suitability for guards, shelves, screens, panels, and fabricated components.
What is the difference between raised and flattened expanded metal?
Raised expanded metal has a three-dimensional profile that provides rigidity and traction. Flattened expanded metal is rolled after expanding to create a smoother surface and lower profile for fabrication and visible panels.
What materials are available?
Flattened expanded metal can be supplied in carbon steel, galvanized steel, stainless steel, and aluminum, with mill finish, galvanized, anodized, or powder coated options depending on the material.
What information is needed for a quotation?
Please send the material, thickness, SWD, LWD, strand width, sheet dimensions, finish, quantity, application, and destination port. Drawings or samples help us quote accurately.
Drawings & specifications welcome
Request a Quote for Flattened Expanded Metal
Tell us the material, opening size, strand width, sheet thickness, panel dimensions, finish, quantity, and application. Our team will help confirm the right flattened expanded metal sheet specification for your project or bulk order.
Before sending a sample or drawing, use the expanded metal measurement guide to distinguish diamond pitch, clear opening and metal thickness.
- Materials
- Carbon Steel / Galvanized Steel / Stainless Steel / Aluminum
- Opening Pattern
- Diamond opening for flattened expanded metal sheet panels
- Surface Finish
- Mill finish / Hot-dip galvanized / Anodized / Powder coated
Made to your specification · Request a quotation
