Custom Perforated Metal Sheet: Hole Patterns & Sizes
Order perforated metal sheets to your drawing: choose the hole shape, diameter, pitch, open area, thickness, unperforated margins and finished dimensions. YueChu Metal reviews the pattern, cutting and edge requirements together before quotation.
- Custom hole size & pitch
- Specified materials & grades
- Cut-to-size dimensions
- Project-specific packing
Custom product supply
Drawing-Based Perforation & Cut-to-Size Supply
Define the hole pattern, finished size and edge condition
YueChu Metal supplies perforated sheets in carbon steel, galvanized steel, stainless steel and aluminium. This page covers how to specify the perforation and finished sheet; use our material pages to compare grades and surface finishes.
Send a dimensioned drawing or reference sample. Include the hole orientation, pattern limits, solid borders, cut-outs and any subsequent forming so that the finished sheet can be reviewed against the intended assembly.
- Custom hole size, pitch, sheet thickness, open area and cut-to-size panel dimensions.
- Available in carbon steel, galvanized steel, stainless steel, and aluminum.
- Surface finishes include mill finish, galvanized, anodized, and powder coated.
- Export packing by pallet, carton, or project-specific protection.
Product overview
How to Define Your Perforation Pattern

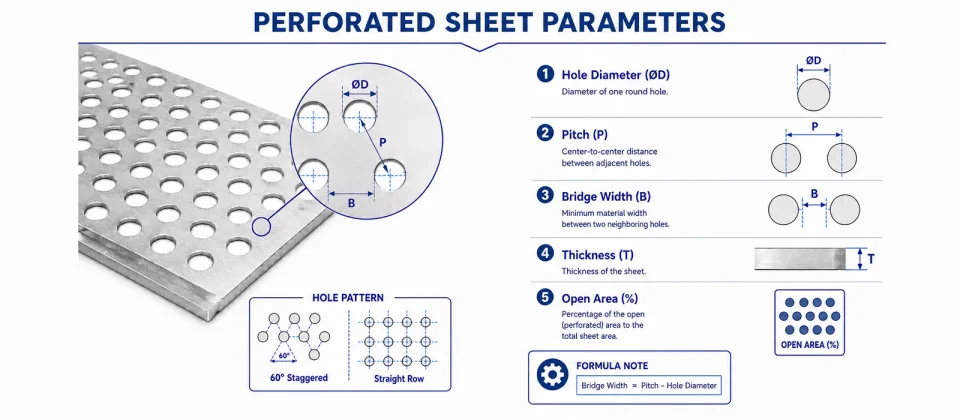

A perforation specification combines hole shape, hole size, centre-to-centre pitch and arrangement. These dimensions determine the open area and remaining metal between holes; they must be selected together with sheet thickness and material.
Hole Size, Pitch & Bridge Width

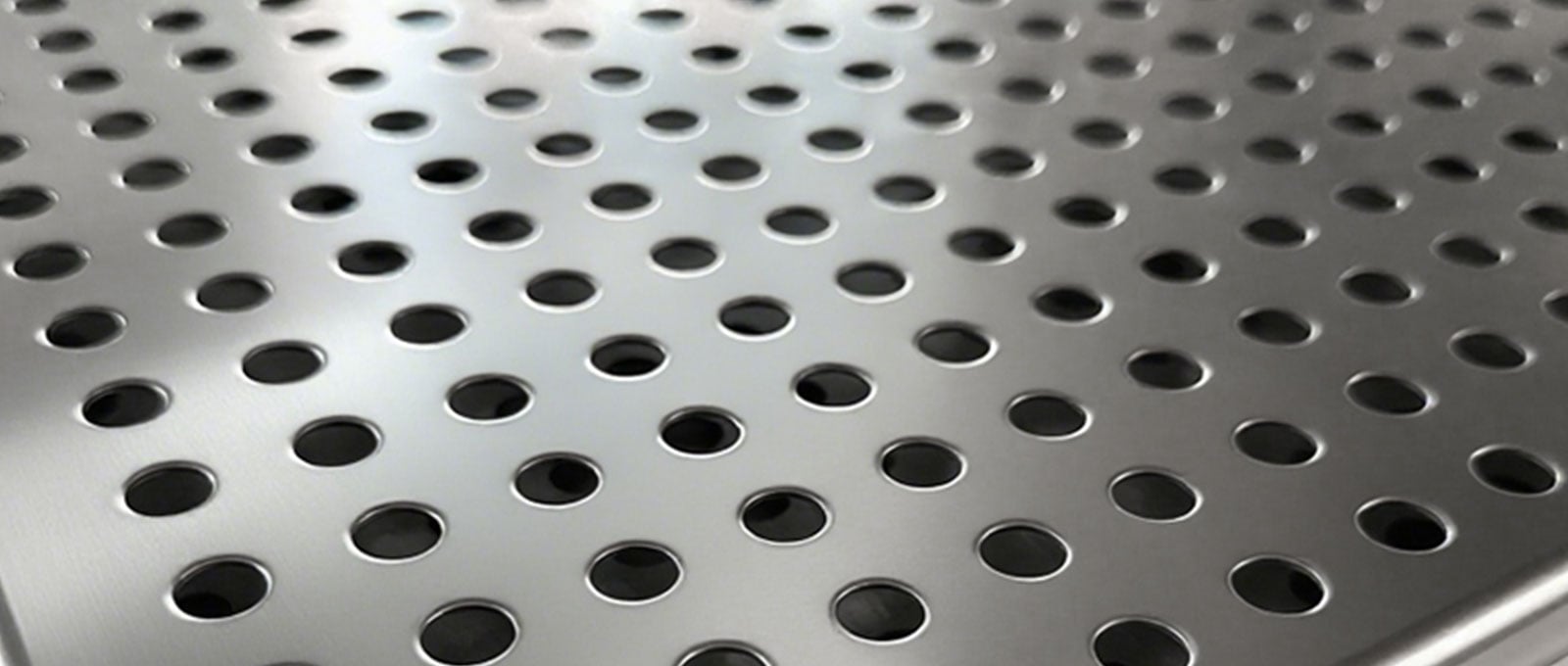

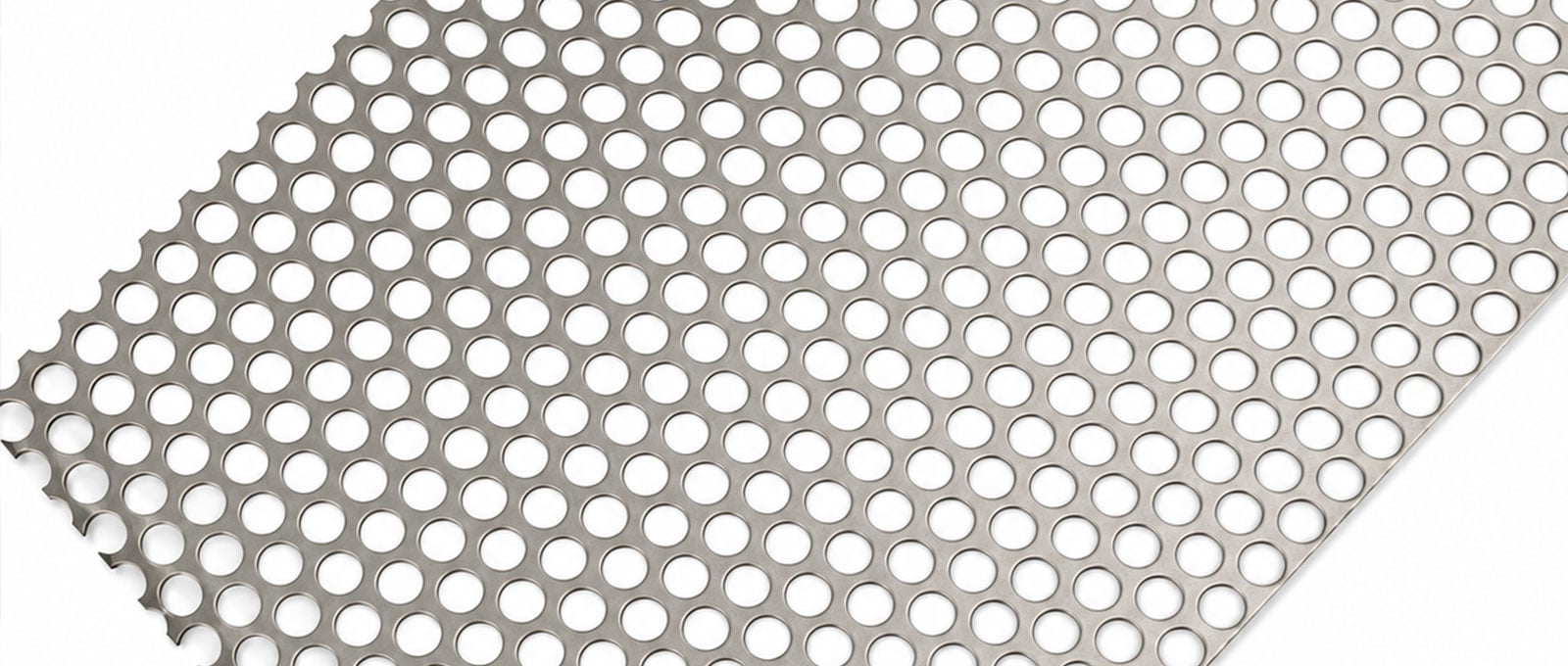

- For round holes, specify the diameter and whether the rows are straight or staggered.
- For slots, specify width, length, end shape, orientation and pitch in both directions.
- Bridge width is the metal remaining between neighbouring holes. For a straight row of equal round holes, it is pitch minus diameter.
- State whether open area applies to the perforated field or the entire sheet, including solid borders.
Use the perforated metal calculator for a preliminary weight and open-area estimate. The drawing controls the finished pattern and margins.
Product data
Perforated Metal Sheet Specifications
| Product | Perforated Metal Sheet / Perforated Sheet Metal / Custom Perforated Metal Plate |
|---|---|
| Material | Stainless steel, aluminum, galvanized steel, carbon steel and verified project materials |

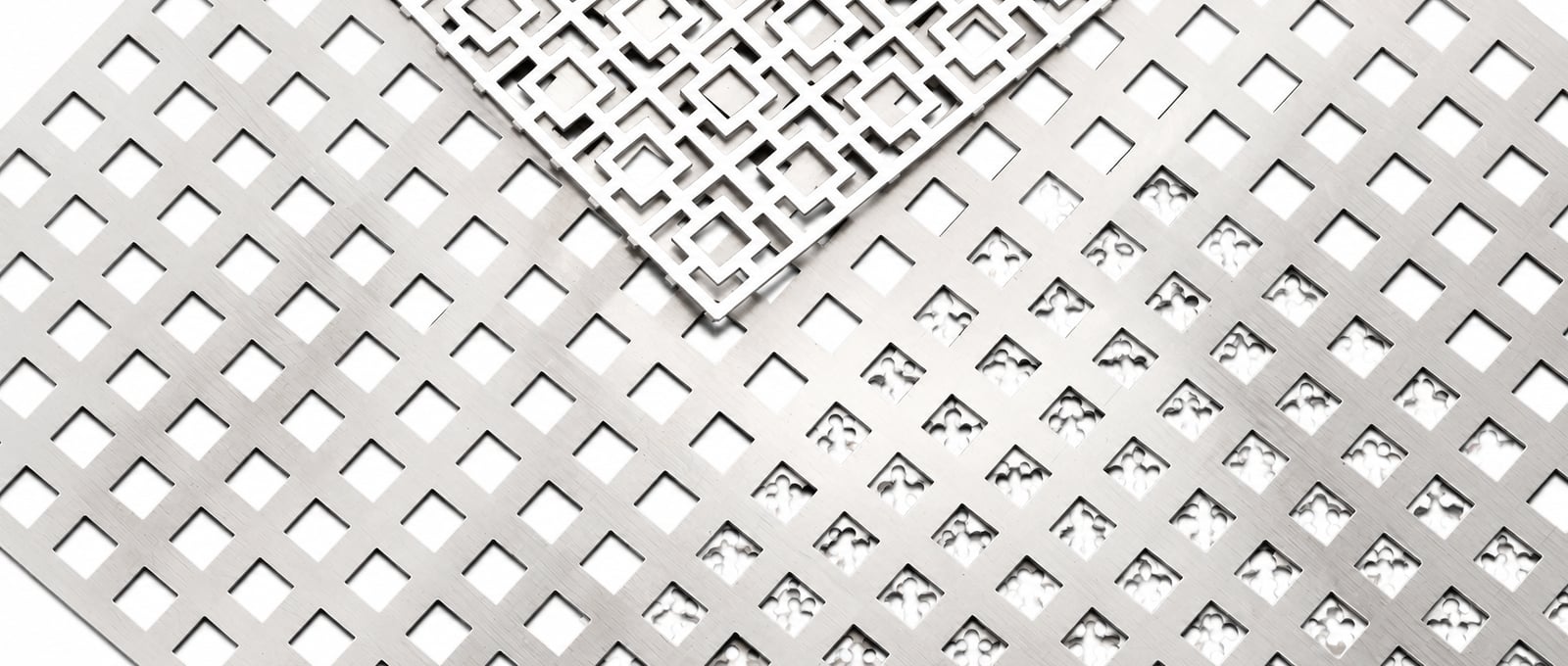

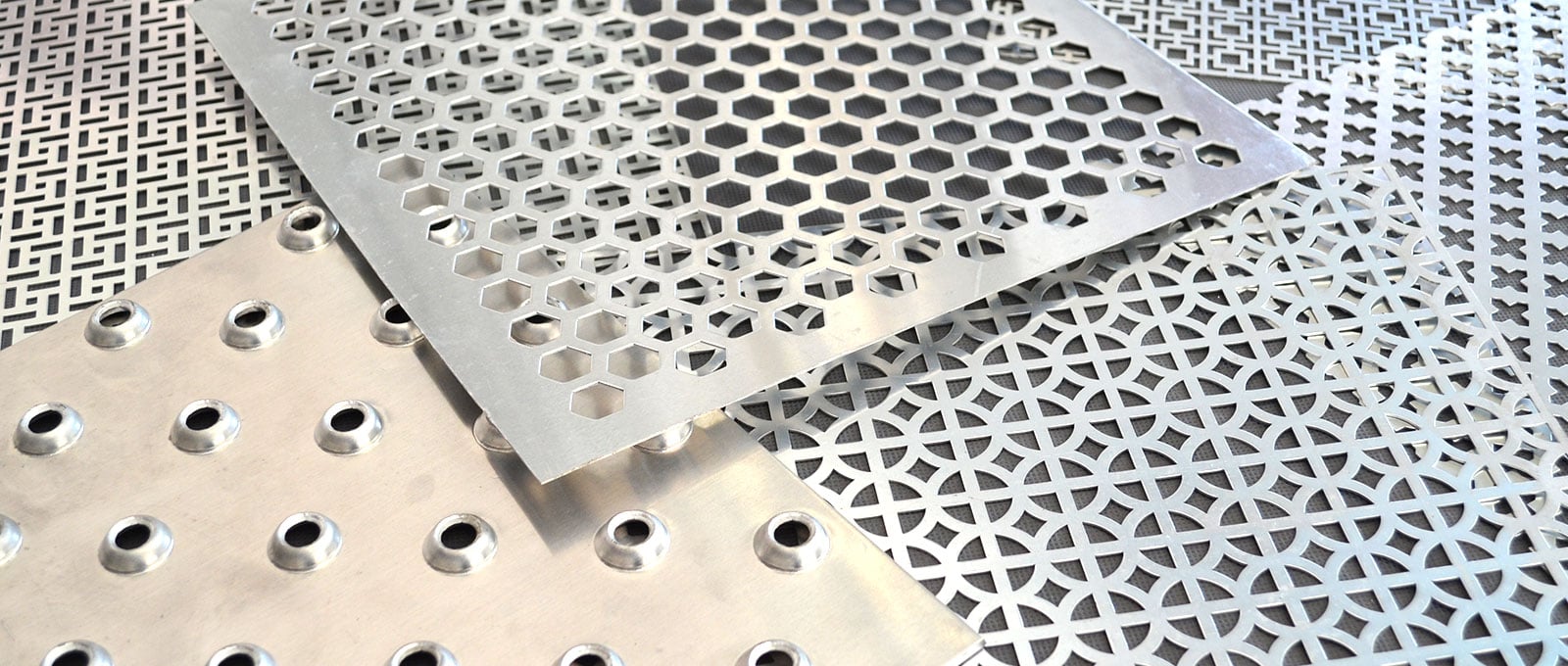

| Hole Pattern | Round, square, slotted or hexagonal holes; straight-row, staggered or custom arrangement |
| Surface Treatment | Mill finish, galvanized, anodized, powder coated or other verified finish |
| Custom Options | Hole size, pitch, bridge width, open area, thickness, finished dimensions, solid margins and edge condition |
| Applications | Facades, ceilings, wall panels, acoustic panels, screens, filters, guards and industrial fabrication |
Cutting, Edge Condition & Fabrication
Specify overall width and length, dimensional tolerances, squareness, burr direction and any deburring requirement. Show solid borders, fixing holes, notches and cut-outs on the drawing.
For bent or formed parts, provide the finished drawing, bend lines and required orientation of the hole pattern. Confirm the fabrication sequence and surface finish before production.
Choosing the Material
Compare carbon steel, galvanized steel, stainless steel and aluminium perforated sheet for the service environment and finish.
Specification & ordering
Perforated Sheet Order Checklist
To quote the finished part, include the following in one drawing or specification:
- Material grade, thickness, sheet width and length, and quantity.
- Hole shape and dimensions, pitch in each direction, row arrangement and pattern orientation.
- Solid margins, cut-outs, fixing holes, tolerances and edge requirements.
- Surface finish, any forming operation, packing requirement and delivery destination.
Confirm a drawing revision and any sample approval requirement before production. Explore Our Company
Procurement confidence
Plan Your Order with Confidence
Key delivery, packing and verification details in one place. Final lead time and shipping terms are confirmed with your quotation.
Buyer questions
Frequently Asked Questions
How do I specify round holes or slots?
For round holes, state the diameter, centre-to-centre pitch and straight or staggered arrangement. For slots, state width, length, end shape, orientation and pitch in both directions. Include the sheet thickness and solid margins.
What is the difference between pitch and bridge width?
Pitch is the centre-to-centre spacing between holes. Bridge width is the metal remaining between neighbouring holes. For equal round holes in a straight row, bridge width equals pitch minus hole diameter.
Can I order cut-to-size sheets with solid borders?
Yes. Show the finished width and length, solid border dimensions, hole-pattern limits, cut-outs and fixing holes on the drawing. Confirm tolerances, burr direction and edge condition before production.
How should open area be specified?
State the target percentage and whether it refers to the perforated field or the full sheet including solid margins. Hole size, pitch and arrangement must be reviewed together to meet the target.
What should I send for a quotation?
Send the material grade, thickness, dimensioned hole pattern, finished size, solid margins, quantity, finish, tolerances, application and destination. Include the drawing revision and any sample approval requirement.
