Titanium Expanded Metal Manufacturer in China
YueChu Metal supplies pure titanium and titanium alloy expanded metal with custom openings, strand widths, sheet sizes, and surface conditions for B2B project and OEM requirements.
- Custom openings & panel sizes
- Pure titanium & alloy grades on request
- Chemical, marine & electrode applications
- Export packing for samples & bulk orders
Custom product supply
Custom Titanium Expanded Metal Supply
Corrosion-resistant titanium mesh for demanding industrial applications
YueChu Metal manufactures custom titanium expanded metal sheets for chemical processing, electrolyzers, marine equipment, filtration systems, and corrosion-resistant industrial projects.
Send your titanium grade, thickness, opening size, panel dimensions, quantity, drawing, or sample for specification review and a fast export quotation.
Expanded Metal Specifications & Dimensions
Compare reference patterns used in the USA, UK, Germany, France and Australia. Confirm material, finished dimensions and availability for your order.
For accurate quotation and production, expanded metal mesh should be measured by SWD (Short Way of Diamond), LWD (Long Way of Diamond), strand width, sheet thickness, sheet width, and sheet length. These expanded metal mesh specifications directly affect opening size, weight, strength, ventilation rate, and application performance.
Pitch ≠ clear opening. Diagram labels: TL = short way, TB = long way, b = strand width, d = metal thickness, B = sheet width and L = sheet length. Specify whether the short and long dimensions on your drawing are bond-center pitches (SWD / LWD) or clear openings (SWO / LWO).
- LWD × SWD
- Long × short way of the diamond pitch, measured between corresponding bond centers.
- Strand width & thickness
- Strand width is w; base metal thickness is t. Raised overall thickness T is a separate dimension.
- SWO / LWO
- The short and long dimensions of the clear opening between strands; these are smaller than the corresponding diamond pitches.
- Open area & sheet size
- Open area is the percentage occupied by openings. Sheet size is the overall width and length; specify diamond orientation separately.
All dimensions are in mm. LWD and SWD are the long and short diamond pitches, measured between corresponding bond centers. ≈ indicates an approximate value. Scroll horizontally to compare all fields.
| Style / pattern | Profile | Base thickness t (mm) | Strand width w (mm) | LWD (mm) | SWD (mm) |
|---|---|---|---|---|---|
| 1/2" #16 F | Flattened | 1.22 | 2.49 | 32.00 | 12.70 |
| 3/16" .032 R | Raised | 0.81 | 0.89 | 12.70 | 5.97 |
| 1/2" #20 R | Raised | 0.91 | 1.83 | 30.48 | 12.70 |
| 1/2" #18 F | Flattened | 1.04 | 2.11 | 32.00 | 12.19 |
| 1/4" #18 R | Raised | 1.22 | 2.18 | 25.40 | 6.35 |
| 3/4" #16 F | Flattened | 1.22 | 2.82 | 53.34 | 23.44 |
| 3/4" .081 Light F | Flattened | 1.52 | 3.02 | 53.34 | 23.44 |
| 3/4" #13 F | Flattened | 1.83 | 2.69 | 53.34 | 23.44 |
| 1-1/2" #13 F | Flattened | 1.93 | 2.90 | 81.28 | 33.78 |
| 1/2" .081 R | Raised | 2.03 | 2.21 | 30.48 | 12.70 |
| 3/4" .081 Light R | Raised | 2.03 | 2.90 | 50.80 | 23.44 |
| 3/4" #13 R | Raised | 2.29 | 2.44 | 50.80 | 23.44 |
| 3/4" #13 R (SS) | Raised | 2.29 | 2.67 | 50.80 | 23.44 |
| 1-1/2" .125 F | Flattened | 2.39 | 4.34 | 80.01 | 33.78 |
| 2" #9 R | Raised | 3.40 | 3.78 | 101.60 | 46.89 |
| 3/4" #9 R | Raised | 3.40 | 3.81 | 50.80 | 23.44 |
| N6664F | Flattened | 0.70 | 1.50 | 6.15 | 3.69 |
| Pattern 1294 | Raised | 1.60 | 2.36 | 30.48 | 11.72 |
| 2490F | Flattened heavy mesh | 3.50 | 6.00 | 46.99 | 15.49 |
| 2089A | Raised | 3.00 | 3.12 | 50.80 | 22.58 |
| Raute 50 × 22 × 4 | Diamond mesh | 2.00 | 4.00 | 50.00 | 22.00 |
| Raute 45 × 20 × 5 | Diamond mesh | 1.00 | 5.00 | 45.00 | 20.00 |
| Raute 200 × 55 × 6 | Diamond mesh | 3.00 | 6.00 | 200.00 | 55.00 |
| Raute 62 × 23 × 3 | Diamond mesh | 1.00 | 3.00 | 62.00 | 23.00 |
| Small mesh 6 × 3 | Diamond mesh | ≈ 0.50 | ≈ 0.80 | 6.00 | 3.00 |
| Rhomboidal 20 × 10 | Diamond mesh | 1.00 | 2.00 | 20.00 | 10.00 |
| Rhomboidal 30 × 17 | Diamond mesh | 1.50 | 2.50 | 30.00 | 17.00 |
| Rhomboidal 43 × 13 | Raised / flattened | 1.50 | 2.50 | 43.00 | 13.00 |
| 1212 reference pattern | Raised / flattened | 1.20 | 2.20 | 30.00 | 12.00 |
| 0910A reference pattern | Aluminum mesh | 1.00 | 1.50 | 28.00 | 9.00 |
Market style numbers are pattern designations, not a complete thickness or load specification. For grating, verify material, strand geometry, support spacing and design loads.
Send a pattern or drawing for quotationProduct overview

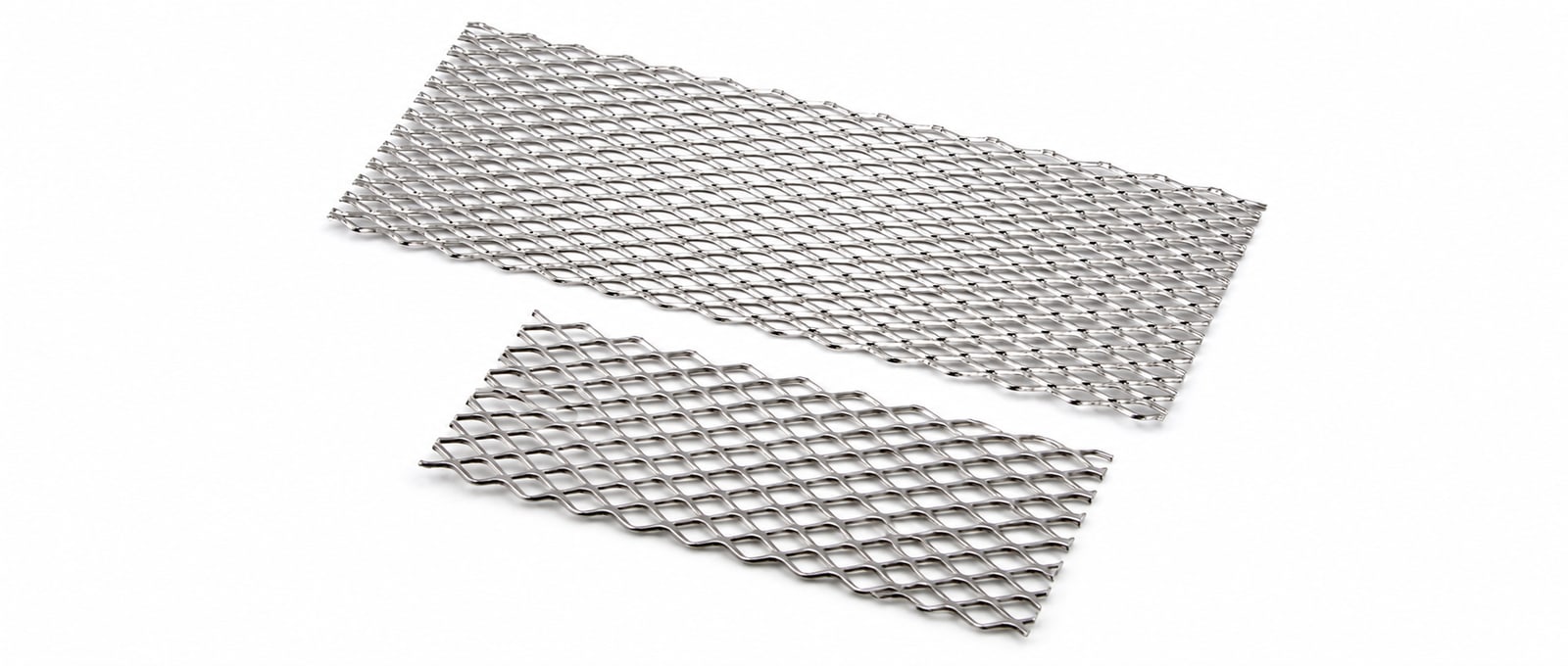

What Is Titanium Expanded Metal?

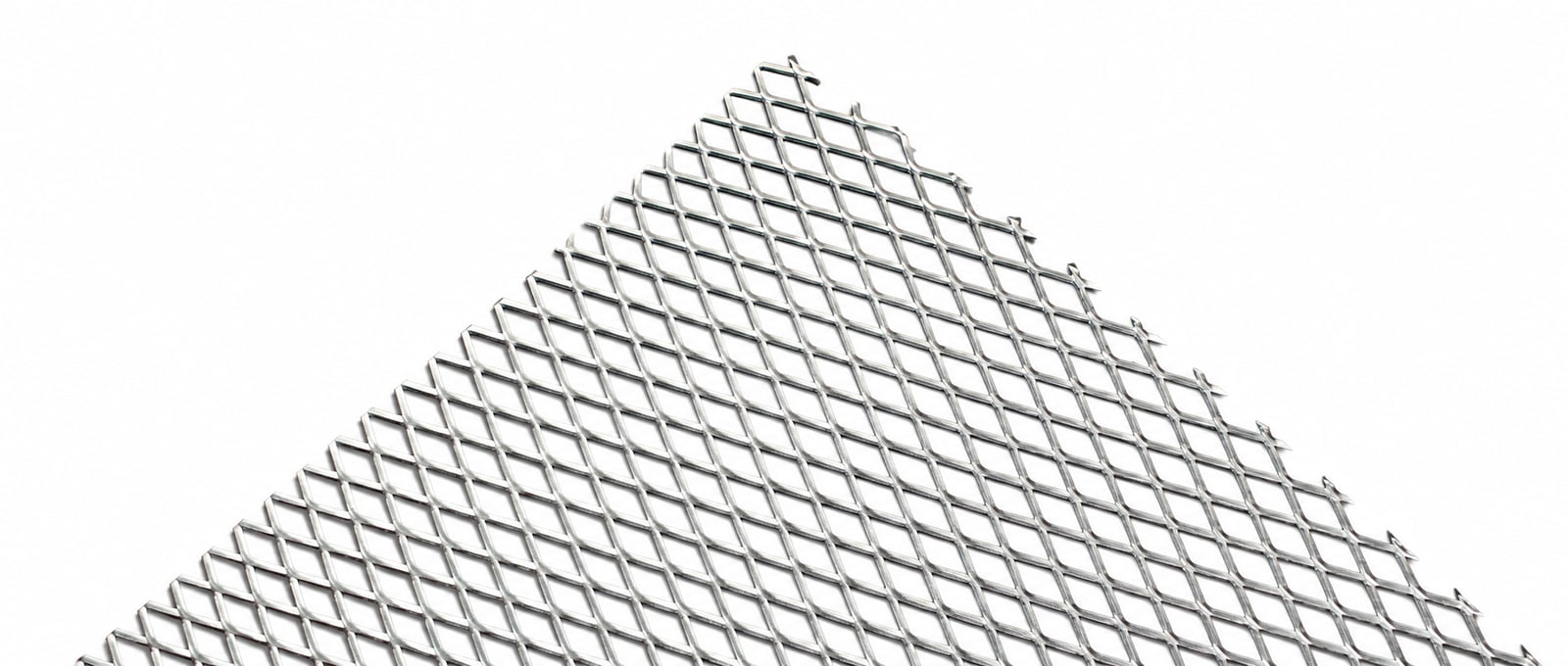

Titanium expanded metal is made by slitting and stretching titanium sheet into a continuous diamond opening pattern. It combines excellent corrosion resistance, chemical stability, low weight, and dependable strength without welded joints.
It is selected for demanding environments where carbon steel or stainless steel may not provide the required service life. YueChu Metal supports custom titanium expanded metal sheets for industrial, marine, filtration, electrolyzer, and electrode-related applications.
- Excellent corrosion resistance and chemical stability.
- High strength-to-weight ratio for high-performance equipment.
- Custom openings, thicknesses, sheet sizes, and surface conditions.
- Suitable for filtration, electrolyzers, marine use, and electrode components.
Applications of Titanium Expanded Metal

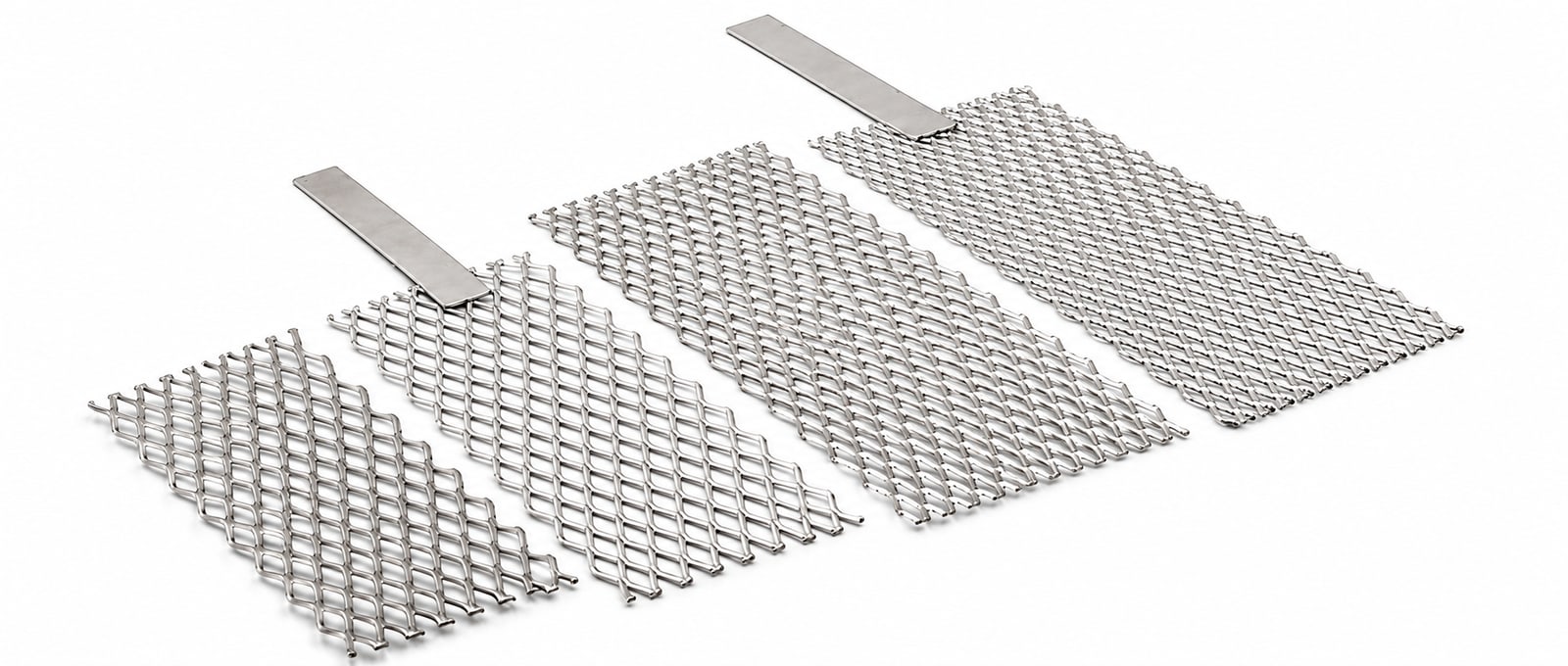

Typical uses include chemical processing equipment, electrolyzers, marine environments, filtration systems, battery and electrode components, and corrosion-resistant industrial parts.
Why Buyers Choose Titanium Expanded Metal
Titanium offers long service life in corrosive environments, stable performance, lightweight strength, and good process compatibility for specialized industrial systems.
Expanded Metal Manufacturing & Customization
A slit-and-stretched sheet, configured around your project.
Slitting and stretching turn solid sheet into connected mesh. Raised mesh retains angled strands; rolling creates a smoother, flattened profile. Cutting, forming and finishing follow your agreed specification.
See the real manufacturing process
Production equipment, workshop areas and incoming material stock.
Quality Control & B2B Supply Support
Agree on material, dimensions, tolerances and inspection requirements before production.
Approved drawings or samples help keep repeat orders consistent. Include inspection records, material documents and packing or identification requirements in your inquiry.
Dimension inspection for your specification
Measuring tools and dimensional checks for expanded metal products.
Packing and loading support
Protected bundles, export packing and shipment preparation.
Available Supply Forms
Sheets
Standard or custom sheet sizes.
Panels
Cut panels, with framing by agreement.

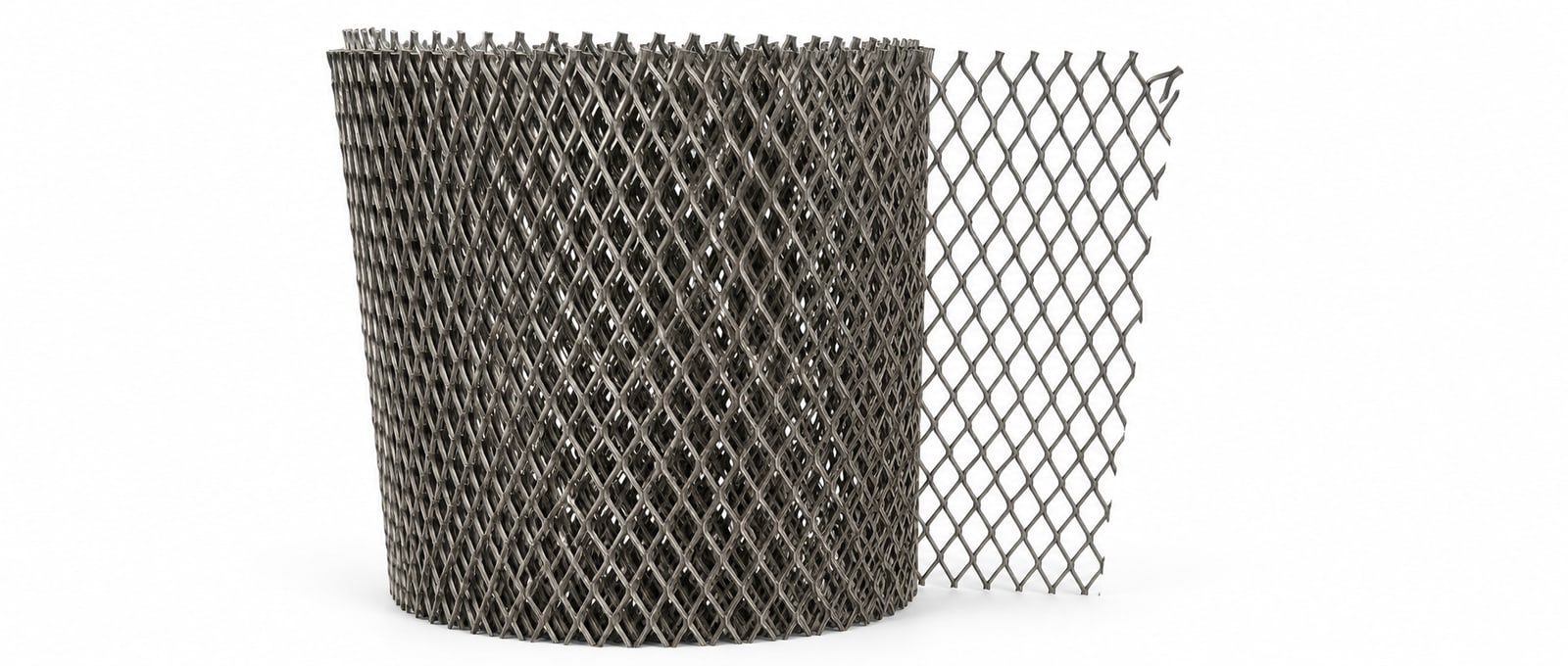

Coils
Roll supply for suitable mesh patterns.
Cut-to-Size Parts
Shapes and dimensions to your drawing.
Confirm dimensions, packing, MOQ and delivery requirements for your specification. View Inspection Photos ·View Packing & Shipment Photos
Buyer questions
Titanium Expanded Metal FAQ
What is titanium expanded metal used for?
Titanium expanded metal is used in chemical processing, electrolyzers, marine equipment, filtration systems, battery and electrode components, and other corrosion-resistant industrial applications.
What titanium grades are available?
Pure titanium and selected titanium alloy grades can be supplied according to project requirements. Please provide the required grade or operating environment so our team can review material suitability.
Can you customize titanium expanded metal sheets?
Yes. We support custom opening size, strand width, thickness, sheet dimensions, edge condition, surface treatment, and packing based on drawings, samples, or application requirements.
Is titanium expanded metal suitable for corrosive environments?
Yes. Titanium is selected for its excellent corrosion resistance and chemical stability, especially in marine, chemical, electrolyzer, and high-performance industrial environments.
What information is needed for a quotation?
Please send the titanium grade, thickness, SWD, LWD, strand width, sheet size, quantity, application, surface condition, and destination port. Drawings or photos improve quotation accuracy.
Drawings & specifications welcome
Request a Quote for Titanium Expanded Metal
Tell us your titanium grade, opening size, thickness, sheet dimensions, quantity, and application. Our team will review the specification and help prepare a suitable export quotation.
Before sending a sample or drawing, use the expanded metal measurement guide to distinguish diamond pitch, clear opening and metal thickness.
- Material
- Pure titanium, titanium alloy sheet, and custom grades on request
- Opening Pattern
- Diamond opening, raised type, or flattened type
- Surface Treatment
- Mill finish, pickled, and custom industrial finish
Made to your specification · Request a quotation
Technical DataProduct parameters & construction details
- Material
- Pure titanium, titanium alloy sheet, and custom grades on request
- Opening Pattern
- Diamond opening, raised type, or flattened type
- Surface Treatment
- Mill finish, pickled, and custom industrial finish
